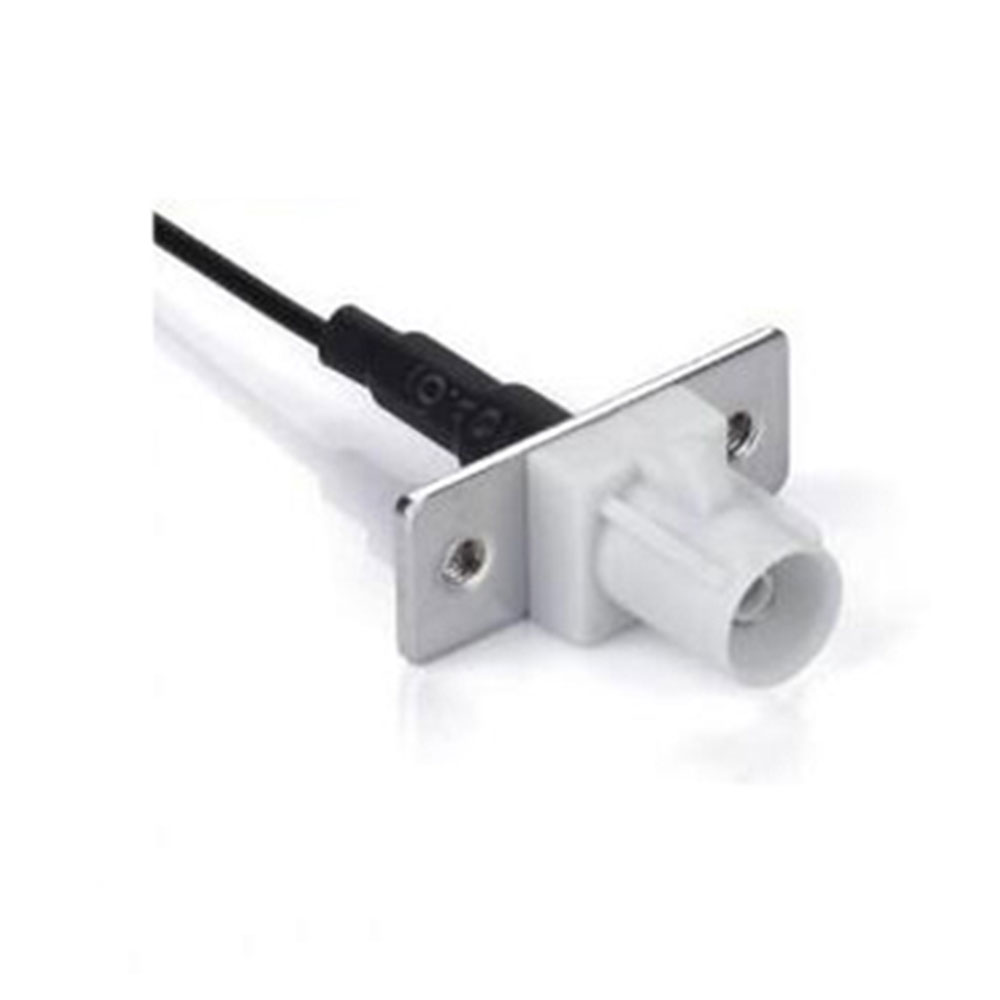

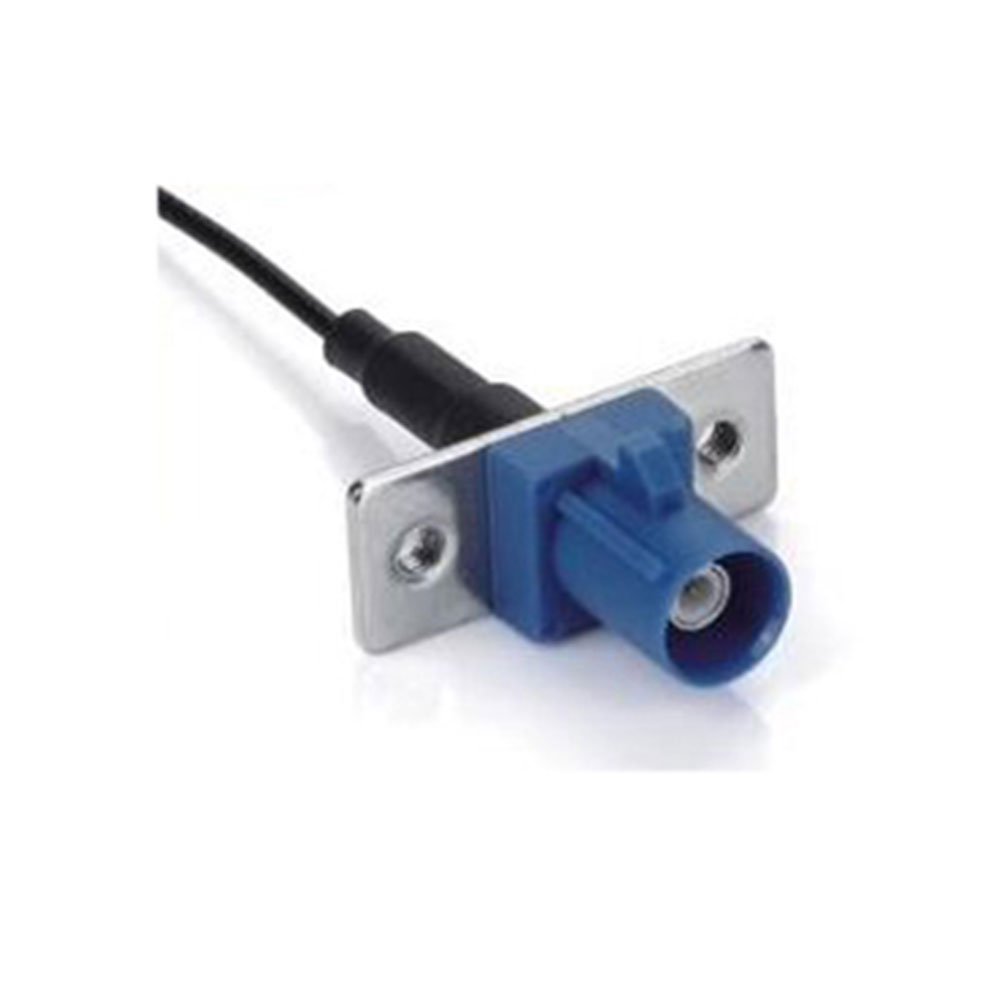

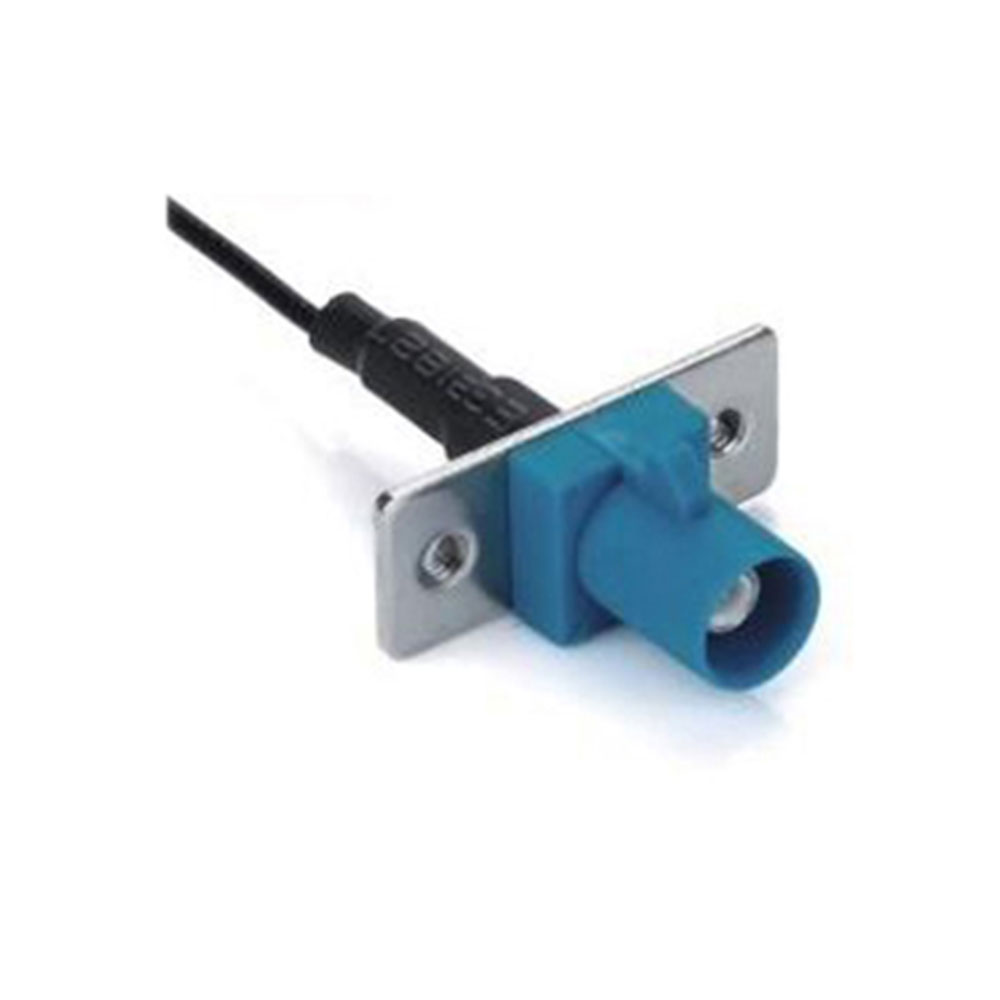

The Fakra connector with a 2-hole flange panel mount is designed for specific installation requirements where a secure and stable connection to a panel or chassis is needed. Here are a few reasons why the Fakra connector with a 2-hole flange panel mount is used:
Panel Mounting: The 2-hole flange design allows the Fakra connector to be mounted directly onto a panel or chassis. This ensures a fixed and stable connection, preventing the connector from coming loose or getting disconnected due to vibrations, movement, or other external factors.
Mechanical Stability: The panel mount design enhances the mechanical stability of the Fakra connector. It provides a more robust and secure connection, particularly in applications where the connector may be subjected to physical stress, such as in automotive or industrial environments.
Easy Installation: The 2-hole flange panel mount design simplifies the installation process. It allows for quick and straightforward attachment of the Fakra connector to a panel or chassis using screws or other fasteners, making it convenient for assembly during manufacturing or installation in various systems.
Space Efficiency: The panel mount configuration helps optimize space utilization. By securely mounting the Fakra connector onto a panel, it eliminates the need for additional mounting brackets or structures, saving valuable space and enabling more compact designs.
Application Specificity: The Fakra connector with a 2-hole flange panel mount is commonly used in specific applications where panel-mounted connectors are preferred or required. These applications can include automotive electronics, telecommunications equipment, test and measurement devices, and various industrial systems.
The 2-hole flange panel mount design ensures a reliable and durable connection for Fakra connectors in scenarios where panel mounting is necessary, offering benefits such as stability, ease of installation, and space efficiency.
| Electrical properties | |
| Characteristic impedance | 50Ω |
| Frequency Range | DC-6 GHz |
| Withstand voltage | 800 Vrms |
| Working current | 1A DC Max(based on the wire guage and length) |
| Inner conductor contact resistance | 10 mΩ Max(Original) |
| Outer conductor contact resistance | 5 mΩ Max(Original) |
| Return loss | 18 dB Min |
| Insertion loss | ≤0.1x√fGHz dB |
| Insulation resistance | 1000 MΩ Min |
| Radio frequency leakage | -45 dB @up to 3 GHz; -40 dB@ up to 6 GHz |
| Mechanical behavior | |
| Durable plug | 25 cycles Min |
| Snap retention | 110 N Min |
| Withdrawal force (four ports) | 2N Min |
| Insertion Force (Four Ports) | 45 N Max(Unwaterproof Single Side) |
| Environmental characteristics | |
| Application temperature | -40℃ to +105℃ |
| Damp heat cycle | USCAR-2, Paragraph 5.6.2 /ISO 20860-2 Clause 9.3 |
| Vibration & Mechanical Shock | USCAR-2, Paragraph 5.4.6 /ISO 20860-2 Clause 9.1 |
| Thermal shock | USCAR-2,Paragraph 5.6.1/ISO 20860-2 Clause 9.2 |
| RoHS | √ |
| Material | |
| Shell | PA, PBT, PPE |
| Outer conductor | Zn, CuZn, CuSn, Stainless Steel |
| Insulator | LCP, PA, PTFE |
| Inner conductor | CuBe, Cuzn, CuSn |
| cover | PA, PBT, PPE |
| Collar | Cu |
| Buckle | PA,PBT, PPE |
| Surface treatment | |
| Outer conductor | Au, Sn, Ni |
| Inner conductor | Au |
FAKRA Cable Assemblies
-
Fakra cable assemblies are designed for easy termination by the user and are ideal for automotive, test and measurement, and drone applications.
-
Industry-standard FAKRA connectors are mechanically keyed and color-coded to avoid mismatching during installation. Manufactured using state-of-the-art termination equipment to cut and strip cables and terminate connectors securely. These cables are individually tested to the highest quality standards
-
They can apply to various connections in automotive vehicles, with applications including SDARS, cellular telephony, GPS navigation, keyless entry, and satellite radio.
Applications
-
360° Cameras
-
Precision GPS
-
Advanced driver assistance systems (ADAS)
-
RFID
-
Drones
-
Wireless infrastructure
-
Antennas
-
Handheld devices
SKU: EB-101-0871
Contact: sales03@elecbee.cn
Related Product: Fakra Z Code 2 Hole Flange Male Vehicle Connector Functional GPS Signal Single End Cable 0.5m (elecbee.com)
