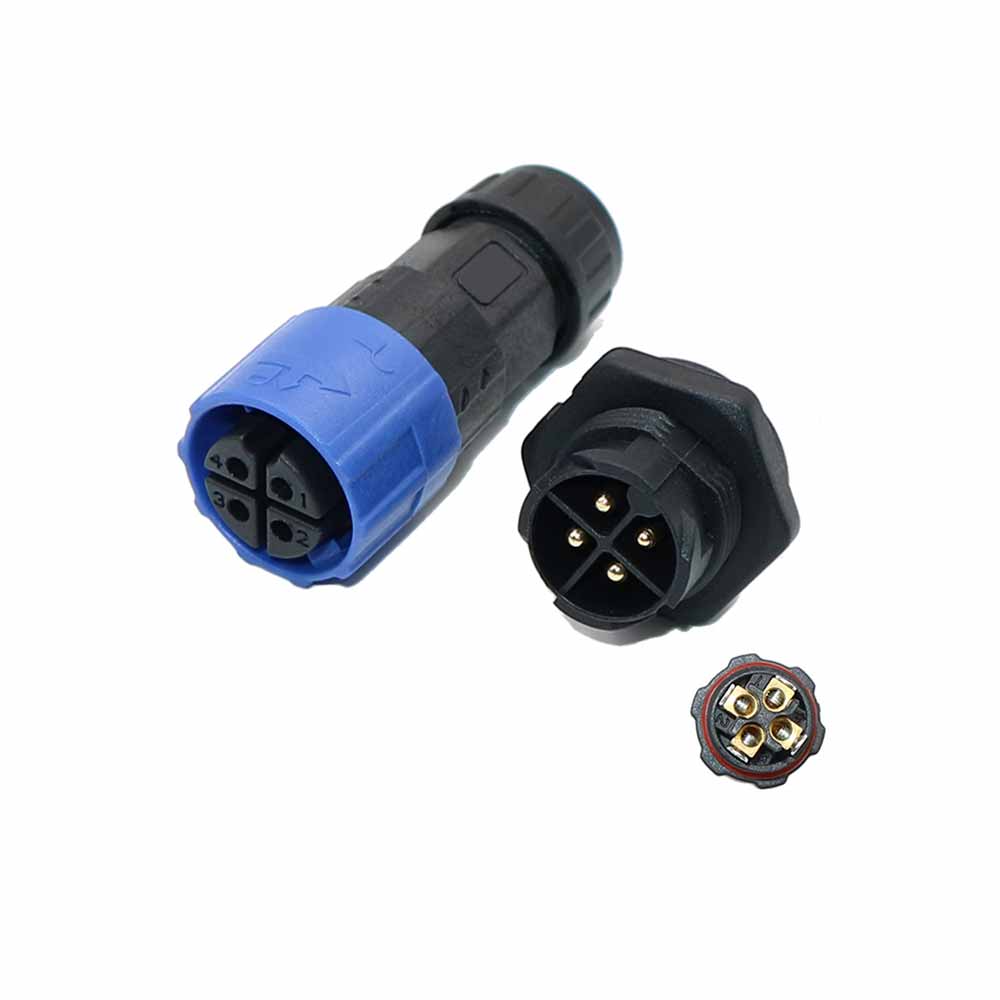

Elecbee M19 4-Pin Waterproof Connector Set, 500V 15A Self-Locking Aviation Plug, Front Panel Mount IP68 AC/DC Solder Terminal Power Socket
SKU: EB-049-0046-H
Favorites
Key Features
Permanent Solder Security: Features professional solder-cup terminals for high-vibration resistance and a permanent, low-resistance electrical bond.
High-Voltage 500V Capacity: Rated for up to 500V and 15A, ensuring safe power distribution for heavy-duty industrial and outdoor LED systems.
Rapid Self-Locking System: Integrated automatic "quick-click" mechanism provides a secure connection in seconds without tedious threading.
IP68 Weatherproof Integrity: Engineered for total submersion, protecting critical AC/DC circuits from moisture, dust, and corrosive spray.
Premium Heat Resistance: Constructed with PA/Nylon and gold-plated brass to operate reliably in temperatures from -40°C to 105°C.
Show More
Specifications
Attribute
Value
Search
Connector Type
Plug
Mounting Type
Panel Mount
Termination
Screw Terminal
Contact Type
Male，Female Pin
Number of Positions
4 Pin
Material Flammability Rating
UL94 V-0
Operating Temperature
-40℃~+105℃
Shielding
Unshielded
Ingress Protection
IP68
Rated Current
20A
Rated Voltage
500V
Connector Series
M19
Color
Black, Blue
Fastening Type
Bayonet
Orientation
Straight
Shell Material
PVC
Packing
Multi-pack Packaging
Contact Material
Copper
Contact Finish
Gold Plated
Insulating Materials
PA
Shell Size
19
Insulation Color
Black
Description
The M19 4-Pin Self-Locking Solder Connector is a high-performance 500V/15A solution for engineers who prioritize long-term connection stability. Designed for front panel mounting, this male and female matching set provides a rugged, moisture-proof interface for industrial automation, marine equipment, and renewable energy control boxes.
Unlike screw-type alternatives, this solder-terminal version is specifically engineered for high-vibration environments where a permanent electrical bond is required. The automatic quick-lock feature ensures that once the connection is made, it remains secure against accidental pull-outs. With an IP68 waterproof rating and gold-plated brass hardware, it maintains peak conductivity in the most unforgiving outdoor and AC/DC power applications.
- Connector Series: M19 4-Pin Solder Terminal
- Electrical Rating: 500V / 15A High-Power
- Locking Mechanism: Push-Click Self-Locking
- Configuration: Front Panel Mount Male & Female Pair
- Hardware Material: Gold-Plated Brass Contacts
- Environmental Shielding: IP67 / IP68 Dust & Waterproof
