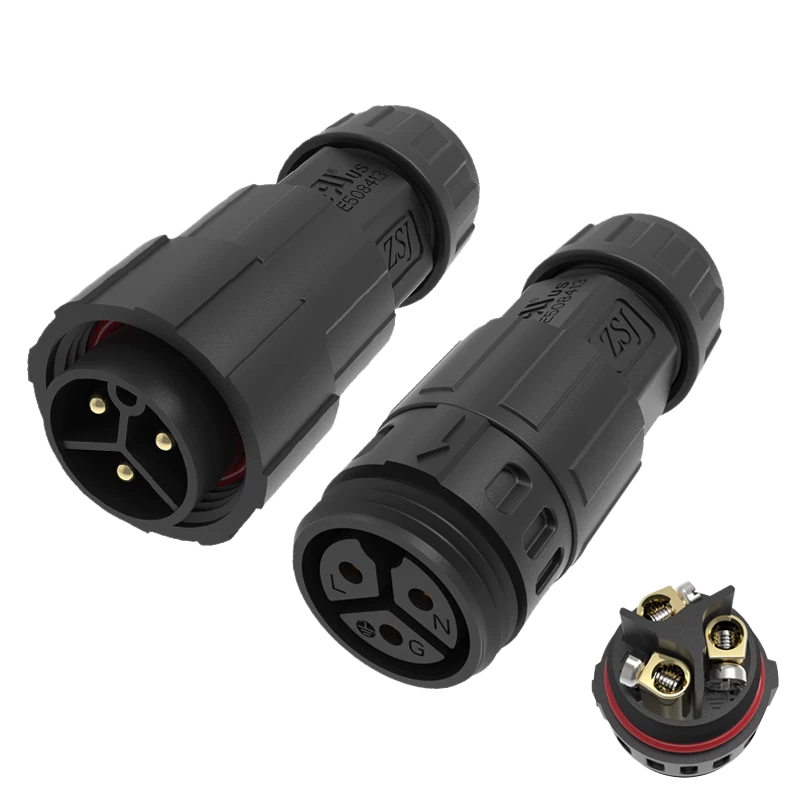

Elecbee M19 Series 3 Pin Waterproof Connector Male Female IP68 Threaded Circular Power Connector Screw Terminal 500V 20A
SKU: EB-049-0013-H
Favorites
Key Features
- Locking Ring Options: Multiple waterproof locking rings are available (φ11.5mm、φ10.0mm、φ8.0mm、φ6.8mm、φ5.5mm). Please leave a note when ordering for your required size. If no specification is provided, the φ10.0mm：8.5-10.0mm locking ring will be shipped by default.
- Reliable Weatherproofing: IP67/IP68 rated protection ensures stable performance in outdoor, marine, industrial, and harsh environments with excellent dust and water resistance.
- Secure Locking Design: M19 Waterproof Connector Designed with Threaded-Locking and screw terminal connection design for quick field installation without soldering tools, providing excellent conductivity and stable performance.
- High-Power Capacity: Supports up to 60-500V and 5-20A, making it ideal for high-demand LED lighting, new energy equipment, industrial machinery, and power systems.
- Extreme Durability: Constructed with high-quality PA66 Nylon housing and gold-plated brass contacts for superior corrosion resistance, conductivity, and long service life.
Show More
Specifications
Number of Positions:
2 Pin3 Pin4 Pin5 PinIn-Stock
Qty.
1
Unit Price
$ 4.68
Ext. Price
$ 4.68
$ 4.68
Specifications
Attribute
Value
Search
Connector Type
Plug, Receptacle
Mounting Type
Cable Type
Termination
Screw Terminal
Contact Type
Male，Female Pin
Number of Positions
3 Pin
Material Flammability Rating
UL94 V-0
Operating Temperature
-25℃~+105℃
Ingress Protection
IP68
Rated Current
20A
Rated Voltage
500V
Connector Series
M19
Color
Black
Fastening Type
Threaded
Orientation
Straight
Shell Material
PVC
Contact Material
Copper Alloy
Contact Finish
Gold Plated
Insulating Materials
PA
Cable Diameter
8.5mm~10mm
Shell Size
19
Description
Elecbee M19 Series 3 Pin Waterproof Connector for Industrial Power Distribution Applications
The Elecbee M19 Series 3 Pin Waterproof Connector is a threaded circular wire-to-wire connector designed for industrial power transmission, LED driver power supplies, automation equipment, machine control systems, outdoor electrical installations, instrumentation equipment, and industrial cable assembly applications. Featuring a screw terminal wiring structure, IP67/IP68 environmental protection, and gold-plated brass contacts, the connector supports reliable electrical performance in demanding industrial environments.
Technical Specifications
- Brand: Elecbee
- Series: M19
- Connector Type: Circular Waterproof Connector
- Configuration: 3 Pin Male Female Set
- Connection Method: Screw Terminal Type
- Connector Style: Wire-to-Wire
- Locking Method: Threaded Coupling
- Protection Rating: IP67 / IP68
- Rated Voltage: 500V
- Rated Current: 20A
- Housing Material: PA Nylon
- Contact Material: Brass
- Contact Finish: Gold Plated
- Seal Material: Silicone
- Operating Temperature: -40°C to +105°C
- Mating Life: ≥3000 Cycles
- Cable Gland Size: Φ11.5mm
- Supported Cable Diameter: 10.0-11.5mm
- Recommended Wire Size: ≤1.5mm²
- Certification: IP68 / TUV / UL
Industrial Applications
The M19 3 pin waterproof connector is suitable for LED driver power supplies, industrial automation equipment, machine control systems, electrical cabinets, power distribution equipment, outdoor lighting systems, industrial sensors, instrumentation panels, communication equipment, and field wiring projects requiring secure waterproof power connections.
Reliable Industrial Performance
The connector combines a high-strength PA nylon housing with silicone sealing technology to provide protection against water ingress, dust, vibration, corrosion, and temperature fluctuations. Gold-plated brass contacts help maintain low contact resistance and stable power transmission during long-term industrial operation.
Compatibility and System Integration
The screw terminal design allows field-installable wiring without soldering, simplifying installation and maintenance. The M19 threaded connector platform supports industrial cable assemblies, automation systems, LED power supplies, control equipment, and outdoor electrical infrastructure applications.
Shopping Guide
Shipping | Delivery Period | Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. Express: 3-7 days. Standard Post: 7-20 days. | |
| Shipping Rates | Shipping rates for your order can be found in the shopping cart. | ||
| Shipping Options | We offer express and standard delivery services. | ||
| Shipping Tracking | We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature. | ||
| Returning/Warranty | Returning | Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping | |
| Warranty | All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects. | ||
| This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation | |||
| Ordering | How to Buy | Elecbee accepts online orders. | |
| Add to cart > Check out > Submit order > Complete payment > Delivery | |||
| Payment | PayPal, Credit Card includes Visa, Master, American Express, Bank transfer. | ||
Recommended For You
Reviews(5)
4.4
5★
60%(3)4★
20%(1)3★
20%(1)2★
0%(0)1★
0%(0)All reviews come from verified purchasers
M
Used these in -30°C conditions on a highway sign. No issues. The -40°C to +105°C range is legit. Threaded locking gives peace of mind in vibration-heavy environments.
N
Works fine and is truly waterproof, but soldering the 3-pin was a bit fiddly due to small terminals. Good value though for UL94V-0 rated parts.
S
Exactly what I needed for high-density installation in a tight enclosure. The nylon housing resists heat well, and the keying prevents wrong mating. Handles 20A no problem.
T
Good quality connector with a secure screw-type fit. Used it on a marine lighting setup—held up great under spray. Only wish they included cable glands for tighter strain relief.
N
Perfect for my outdoor LED street light project. The IP68 rating and silicone waterproof apron really seal out moisture. Solid build and the gold-plated copper contacts show no corrosion after weeks in rain.
