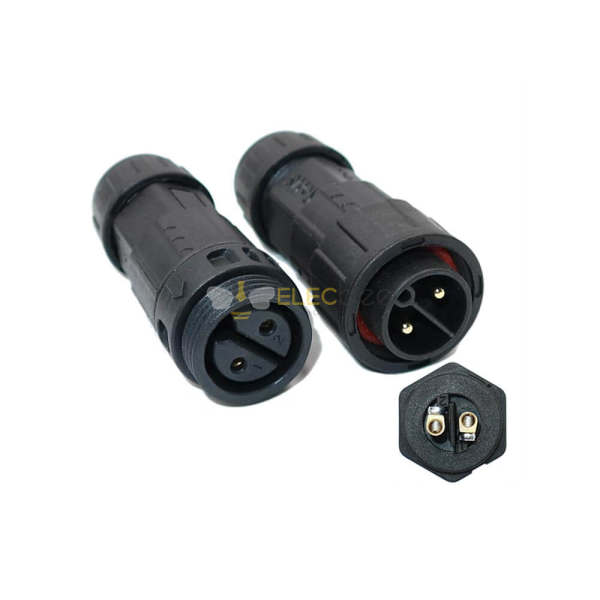

Elecbee M19 Waterproof Connector Set, 2 Pin 20A 500V IP68 Aviation Plug, Screw Locking Male & Female Pair for LED Power
SKU: EB-049-0012-H
Favorites
Key Features
- Locking Ring Options: Multiple waterproof locking rings are available (φ11.5mm、φ10.0mm、φ8.0mm、φ6.8mm、φ5.5mm). Please leave a note when ordering for your required size. If no specification is provided, the φ10.0mm：8.5-10.0mm locking ring will be shipped by default.
- Reliable Weatherproofing: IP67/IP68 rated protection ensures stable performance in outdoor, marine, industrial, and harsh environments with excellent dust and water resistance.
- Secure Locking Design: M19 Waterproof Connector Designed with Threaded-Locking and screw terminal connection design for quick field installation without soldering tools, providing excellent conductivity and stable performance.
- High-Power Capacity: Supports up to 60-500V and 5-20A, making it ideal for high-demand LED lighting, new energy equipment, industrial machinery, and power systems.
- Extreme Durability: Constructed with high-quality PA66 Nylon housing and gold-plated brass contacts for superior corrosion resistance, conductivity, and long service life.
Show More
In-Stock
Qty.
1
Unit Price
€ 4.16
Ext. Price
€ 4.16
€ 4.16
Specifications
Attribute
Value
Search
Connector Type
Plug, Receptacle
Mounting Type
Cable Type
Termination
Screw Terminal
Contact Type
Male，Female Pin
Number of Positions
2 Pin
Material Flammability Rating
UL94 V-0
Operating Temperature
-25℃~+105℃
Ingress Protection
IP68
Rated Current
20A
Rated Voltage
500V
Connector Series
M19
Color
Black
Fastening Type
Threaded
Orientation
Straight
Shell Material
PVC
Contact Material
Copper Alloy
Contact Finish
Gold Plated
Insulating Materials
PA
Cable Diameter
8.5mm~10mm
Shell Size
19
Description
The Elecbee M19 Waterproof Connector solves the common problem of power instability in outdoor lighting and industrial machinery. By providing a sealed IP68 connection, it protects your circuits from water ingress, dust, and corrosion, extending the lifespan of your expensive LED drivers and power supplies.
Built for performance, this 2-Pin aviation plug set handles a robust 20A current and 500V voltage. The kit includes both male and female connectors with a high-precision screw-locking system. Technical versatility is a priority, as the connector supports multiple cable gland sizes ranging from φ5.3mm to φ11.5mm, ensuring a snug, watertight fit for various wire gauges.
- Model: M19 2-Pin Series
- Connection Type: Male Plug/Female Socket Pair
- Terminal Method: Screw Lock (Solderless)
- Material: High-performance engineering plastic with gold-plated contacts
- Operating Range: φ5.3, φ6.8, φ8.0, φ10.0, φ11.5 specifications
Shopping Guide
Shipping | Delivery Period | Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. Express: 3-7 days. Standard Post: 7-20 days. | |
| Shipping Rates | Shipping rates for your order can be found in the shopping cart. | ||
| Shipping Options | We offer express and standard delivery services. | ||
| Shipping Tracking | We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature. | ||
| Returning/Warranty | Returning | Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping | |
| Warranty | All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects. | ||
| This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation | |||
| Ordering | How to Buy | Elecbee accepts online orders. | |
| Add to cart > Check out > Submit order > Complete payment > Delivery | |||
| Payment | PayPal, Credit Card includes Visa, Master, American Express, Bank transfer. | ||
Recommended For You
Reviews(5)
4 /5
All reviews come from verified purchasers
5
60%
4
20%
3
20%
2
0%
1
0%
j****e
Perfect for my outdoor LED lighting project. The IP68 rating really holds up — been through heavy rain and no moisture inside. Solid build and the screw lock keeps it secure.
C****r
Good quality waterproof connector. I used the 4-pin solder type for a marine light setup. Gold-plated contacts show no corrosion after two months on my boat.
J****d
Exactly what I needed for connecting landscape lights. The silicone waterproof apron seals tightly, and the nylon housing feels durable even in freezing temps.
L****t
Works well but took time to solder the 5-pin version. Insulation shrinks nicely though. Would be better with clearer wiring labels.
l****l
Used in an industrial sensor application. Withstands voltage tests fine and fits perfectly in tight spaces. The keying prevents wrong connections — great feature!
