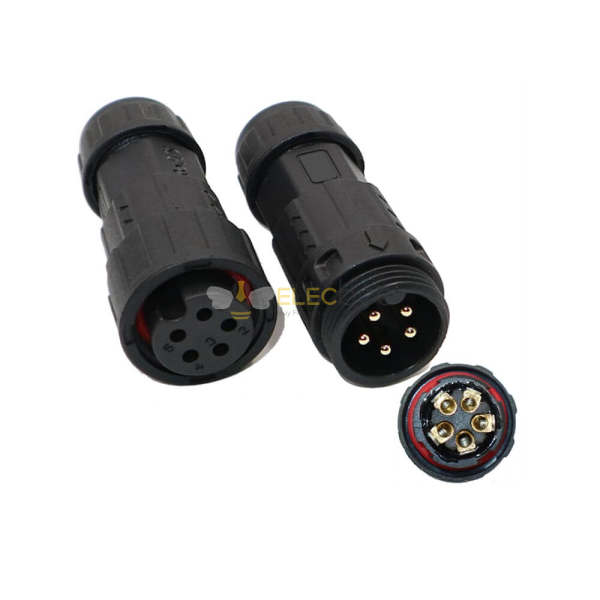

Elecbee M19 Waterproof Aviation Connector 5-Pin Male & Female Plug, Solderless Screw Terminal, IP68 Weatherproof AC/DC Power Connector, 300V 10A
SKU: EB-049-0004-H
Favorites
Key Features
- Locking Ring Options: Multiple waterproof locking rings are available (φ11.5mm、φ10.0mm、φ8.0mm、φ6.8mm、φ5.5mm). Please leave a note when ordering for your required size. If no specification is provided, the φ10.0mm：8.5-10.0mm locking ring will be shipped by default.
- Reliable Weatherproofing: IP67/IP68 rated protection ensures stable performance in outdoor, marine, industrial, and harsh environments with excellent dust and water resistance.
- Secure Locking Design: M19 Waterproof Connector Designed with Threaded-Locking and screw terminal connection design for quick field installation without soldering tools, providing excellent conductivity and stable performance.
- High-Power Capacity: Supports up to 60-500V and 5-20A, making it ideal for high-demand LED lighting, new energy equipment, industrial machinery, and power systems.
- Extreme Durability: Constructed with high-quality PA66 Nylon housing and gold-plated brass contacts for superior corrosion resistance, conductivity, and long service life.
Show More
In-Stock
Qty.
1
Unit Price
$ 5.58
Ext. Price
$ 5.58
$ 5.58
Specifications
Attribute
Value
Search
Connector Type
Plug, Receptacle
Mounting Type
Cable Type
Termination
Screw Terminal
Contact Type
Male，Female Pin
Number of Positions
5 Pin
Material Flammability Rating
UL94 V-0
Operating Temperature
-25℃~+105℃
Ingress Protection
IP68
Rated Current
15A
Rated Voltage
300V
Connector Series
M19
Color
Black
Fastening Type
Threaded
Orientation
Straight
Shell Material
PVC
Contact Material
Copper Alloy
Contact Finish
Gold Plated
Insulating Materials
PA
Cable Diameter
8.5mm~10mm
Shell Size
19
Description
The M19 Waterproof Aviation Connector provides a secure, industrial-grade seal for 5-pin power connections. Designed for ease of use, the solderless screw terminal design allows you to create professional-grade, weatherproof connections in minutes, saving significant time during field installations and repairs.
This robust connector set is built for performance and longevity. It features a high-strength PA66 Nylon shell and gold-plated brass hardware to ensure optimal signal and power transmission. With an IP68 waterproof rating and a wide operating temperature range of -40°C to 105°C, it is the perfect solution for outdoor LED lighting, marine electronics, and industrial automation systems.
- Voltage/Current: 300V / 10A
- Pin Configuration: 5-Pin (Male/Female set)
- Materials: PA/Nylon Housing, Gold-Plated Brass Pins
- Cable Range: Φ3.5mm to Φ11.5mm
- Interface: AC/DC Compatible
Shopping Guide
Shipping | Delivery Period | Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. Express: 3-7 days. Standard Post: 7-20 days. | |
| Shipping Rates | Shipping rates for your order can be found in the shopping cart. | ||
| Shipping Options | We offer express and standard delivery services. | ||
| Shipping Tracking | We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature. | ||
| Returning/Warranty | Returning | Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping | |
| Warranty | All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects. | ||
| This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation | |||
| Ordering | How to Buy | Elecbee accepts online orders. | |
| Add to cart > Check out > Submit order > Complete payment > Delivery | |||
| Payment | PayPal, Credit Card includes Visa, Master, American Express, Bank transfer. | ||
Recommended For You
Reviews(5)
4.4
5★
60%(3)4★
20%(1)3★
20%(1)2★
0%(0)1★
0%(0)All reviews come from verified purchasers
A
Perfect for my outdoor LED lighting project. The IP68 rating really holds up—even after weeks of rain, no moisture inside. Solid build and the gold-plated contacts look high quality.
C
Good connector for marine use. I installed it on my boat’s navigation lights. Screw-lock design keeps it secure, and the silicone waterproof apron seals well. Slightly tricky to solder, but worth it.
D
Used the 5-pin version for a water monitoring sensor array. Performs flawlessly at -20°C. Love the keying feature—prevents wrong connections in tight spaces.
M
Works as advertised, but the cable strain relief could be better. Needed extra tape to prevent stress on solder joints. Otherwise, waterproof seal and durability are solid.
S
Great for industrial sensors. The nylon housing resists UV and chemicals. Used in a wastewater plant—no corrosion so far. High-density fit saves panel space too.
