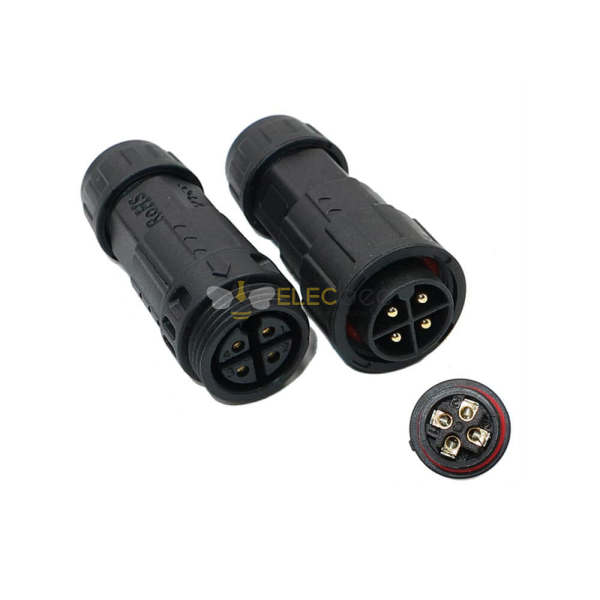

Elecbee M19 Series 4 Pin Waterproof Connector Male Female IP68 Threaded Circular Power Connector Screw Terminal 500V 20A
SKU: EB-049-0014-H
Favorites
Key Features
- Locking Ring Options: Multiple waterproof locking rings are available (φ11.5mm、φ10.0mm、φ8.0mm、φ6.8mm、φ5.5mm). Please leave a note when ordering for your required size. If no specification is provided, the φ10.0mm：8.5-10.0mm locking ring will be shipped by default.
- Reliable Weatherproofing: IP67/IP68 rated protection ensures stable performance in outdoor, marine, industrial, and harsh environments with excellent dust and water resistance.
- Secure Locking Design: M19 Waterproof Connector Designed with Threaded-Locking and screw terminal connection design for quick field installation without soldering tools, providing excellent conductivity and stable performance.
- High-Power Capacity: Supports up to 60-500V and 5-20A, making it ideal for high-demand LED lighting, new energy equipment, industrial machinery, and power systems.
- Extreme Durability: Constructed with high-quality PA66 Nylon housing and gold-plated brass contacts for superior corrosion resistance, conductivity, and long service life.
Show More
Specifications
Number of Positions:
2 Pin3 Pin4 Pin5 PinIn-Stock
Qty.
1
Unit Price
$ 5.14
Ext. Price
$ 5.14
$ 5.14
Specifications
Attribute
Value
Search
Connector Type
Plug, Receptacle
Mounting Type
Cable Type
Termination
Screw Terminal
Contact Type
Male，Female Pin
Number of Positions
4 Pin
Material Flammability Rating
UL94 V-0
Operating Temperature
-25℃~+105℃
Ingress Protection
IP68
Rated Current
20A
Rated Voltage
500V
Connector Series
M19
Color
Black
Fastening Type
Threaded
Orientation
Straight
Shell Material
PVC
Contact Material
Copper Alloy
Contact Finish
Gold Plated
Insulating Materials
PA
Cable Diameter
8.5mm~10mm
Shell Size
19
Description
Elecbee M19 Series 4 Pin Waterproof Connector for Industrial Power Applications
The Elecbee M19 Series 4 Pin Waterproof Connector is a threaded circular wire-to-wire connector designed for LED driver power supplies, industrial automation equipment, machine control systems, power distribution, electrical cabinets, outdoor lighting systems, instrumentation, and field wiring applications. Featuring screw terminal wiring, IP67/IP68 protection, and gold-plated brass contacts, this connector supports reliable power transmission in demanding industrial environments.
Technical Specifications
- Brand: Elecbee
- Series: M19
- Connector Type: Circular Waterproof Connector
- Configuration: 4 Pin Male Female Set
- Connection Method: Screw Terminal Type
- Connector Style: Wire-to-Wire
- Locking Method: Threaded Coupling
- Protection Rating: IP67 / IP68
- Rated Voltage: 500V
- Rated Current: 20A
- Housing Material: PA Nylon
- Contact Material: Brass
- Contact Finish: Gold Plated
- Seal Material: Silicone
- Operating Temperature: -40°C to +105°C
- Mating Life: ≥3000 Cycles
- Cable Gland Size: Φ11.5mm
- Supported Cable Diameter: 10.0-11.5mm
- Recommended Wire Size: ≤1.0mm²
- Certification: IP68 / TUV / UL
Industrial Applications
The M19 4 pin waterproof connector is suitable for LED driver power supplies, industrial automation systems, electrical cabinets, outdoor lighting equipment, machine control systems, power distribution units, instrumentation panels, communication equipment, and field-installable cable assemblies.
Reliable Industrial Performance
The PA nylon housing, silicone sealing structure, and threaded locking design help protect electrical connections from moisture, dust, vibration, corrosion, and temperature fluctuations. Gold-plated brass contacts support stable conductivity and low contact resistance during long-term industrial operation.
Compatibility and Integration
The screw terminal structure allows field wiring without soldering, making the connector suitable for installation, maintenance, and cable replacement in industrial power systems, LED lighting networks, control equipment, and outdoor electrical infrastructure.
