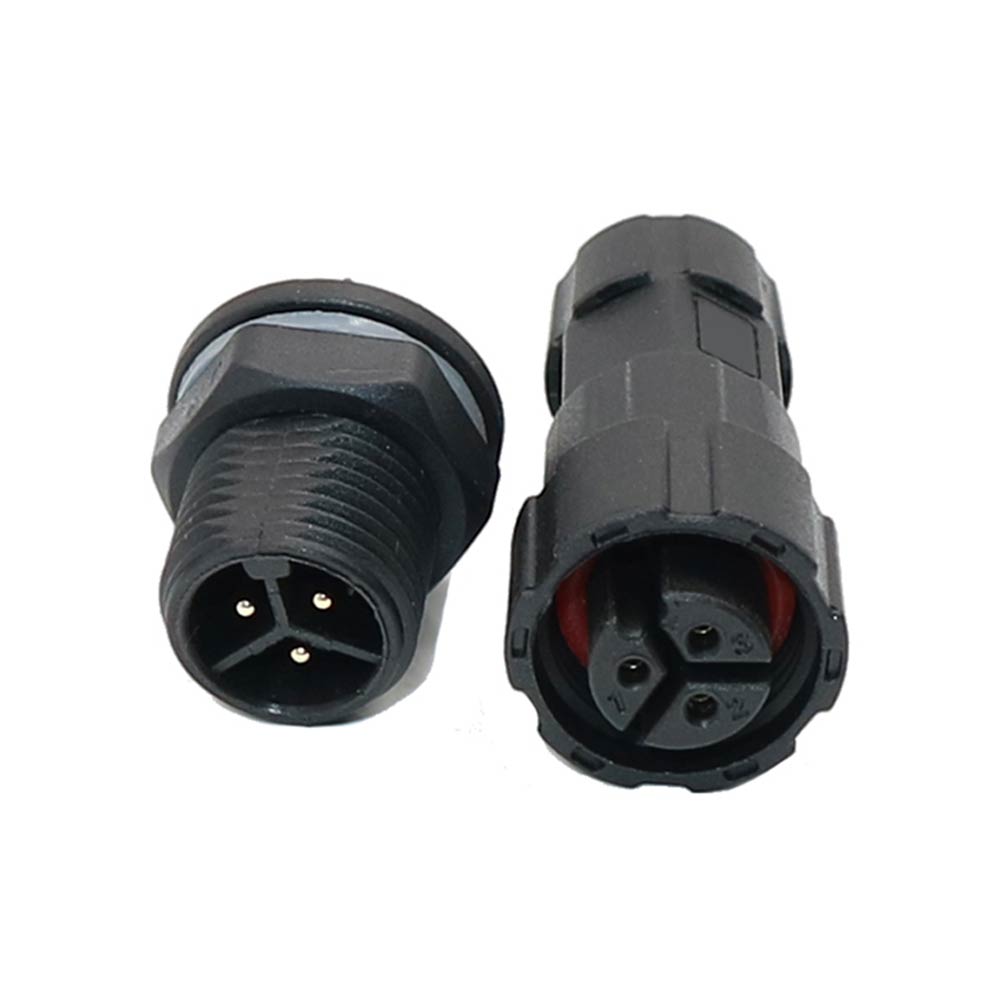

Elecbee M16 3Pin Waterproof Aviation Connector With Led Connection Front-Lock Soler Type

Waterproof LED, waterproof plug cable, waterproof plug is widely used in outdoor LED (street lights, displays, architectural lighting, etc.), automobiles and ships, LED drive power, LED display, lighthouses, cruise ships, industrial equipment, communication equipment, detection equipment, etc.

Product Name: M16 3-Pin Waterproof Aviation Connector With Led Connection, Front-Lock Soler Type

Rated Current and Voltage

2 Pin:  500V, 15A

3 Pin:  500V, 15A

4 Pin:  500V, 15A

5 Pin:  300V, 10A

6 Pin:  110V, 5A

7 Pin:  110V, 5A

8 Pin:  110V, 5A

9 Pin:   60V, 5A

10 Pin: 60V, 5A

11 Pin: 60V, 5A

12 Pin: 60V, 5A

Cable Wiring Type:

Solder Type: 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12 Pin

Screw Type: 2, 3, 4 Pin

Contact material: Copper-plated golden

Cable Wiring Method: Solder Type

Withstand voltage: 1500V

Protection grade: IP68

Terminal material: copper, gold plated

Contact resistance: < = 5m Ω

Connector material: Nylon / PVC

Test temperature: - 40 ℃ - + 105 ℃

Flame retardant grade: UL94V-0

Main features of the product:

1. Safe thread insertion and extraction system is more firm and reliable;

2. Waterproof connection, assembly, and docking (IP68)

3. A wide range of models for customers to choose from;

4. Welding, solid pin core

5. High-density installation saves space;

6. The key position selection of multiple plugs can avoid the mixed insertion between similar connectors;
