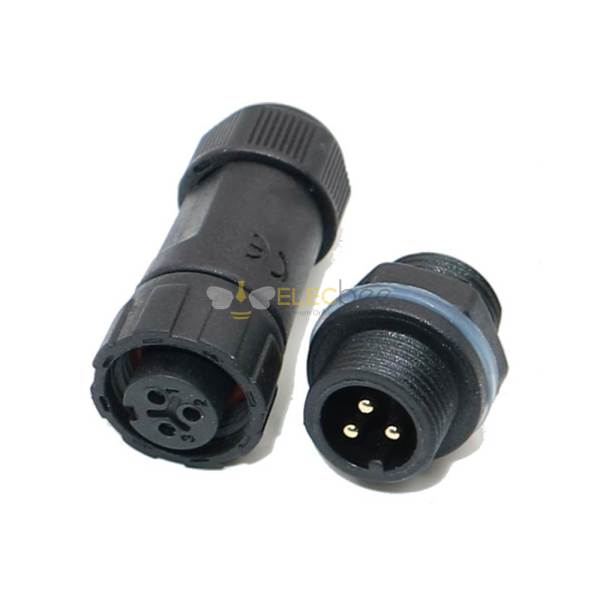

Elecbee M12 Waterproof Panel Back Mounted Connector Solder Type for Cable 3 pin Mechanical Equipment Nylon PA66 Material

SKU: EB-048-0016-H

Favorites

Key Features

Waterproof LED, waterproof plug cable, waterproof plug is widely used in outdoor LED (street lights, displays, architectural lighting, etc.), automobiles and ships, LED drive power, LED display, lighthouses, cruise ships, industrial equipment, communication equipment, detection equipment, etc.

Product Name: M12 Waterproof Panel Back Mounted Connector Solder Type for Cable 3 pin Mechanical Equipment Nylon PA66 Material

Rated Current and Voltage

2 Pin: 300V, 15A

3 Pin: 300V, 15A

4 Pin: 300V, 15A

5 Pin: 110V, 5A

6 Pin: 110V, 5A

7 Pin: 110V, 5A

8 Pin: 110V, 5A

Contact material: Copper-plated golden

Cable Wiring Method: Solder Type

Withstand voltage: 1500V

Protection grade: IP68

Terminal material: copper, gold plated

Contact resistance: < = 5m Ω

Connector material: Nylon / PVC

Test temperature: - 40 ℃ - + 105 ℃

Flame retardant grade: UL94V-0

Main features of the product:

1. Safe thread insertion and extraction system is more firm and reliable;

2. Waterproof connection, assembly and docking (IP68)

3. A wide range of models for customers to choose;

4. Multi-core type, 2-8 cores optional;

5. Welding, solid pin core

6. High-density installation saves space;

7. The key position selection of multiple plugs can avoid the mixed insertion between similar connectors;
