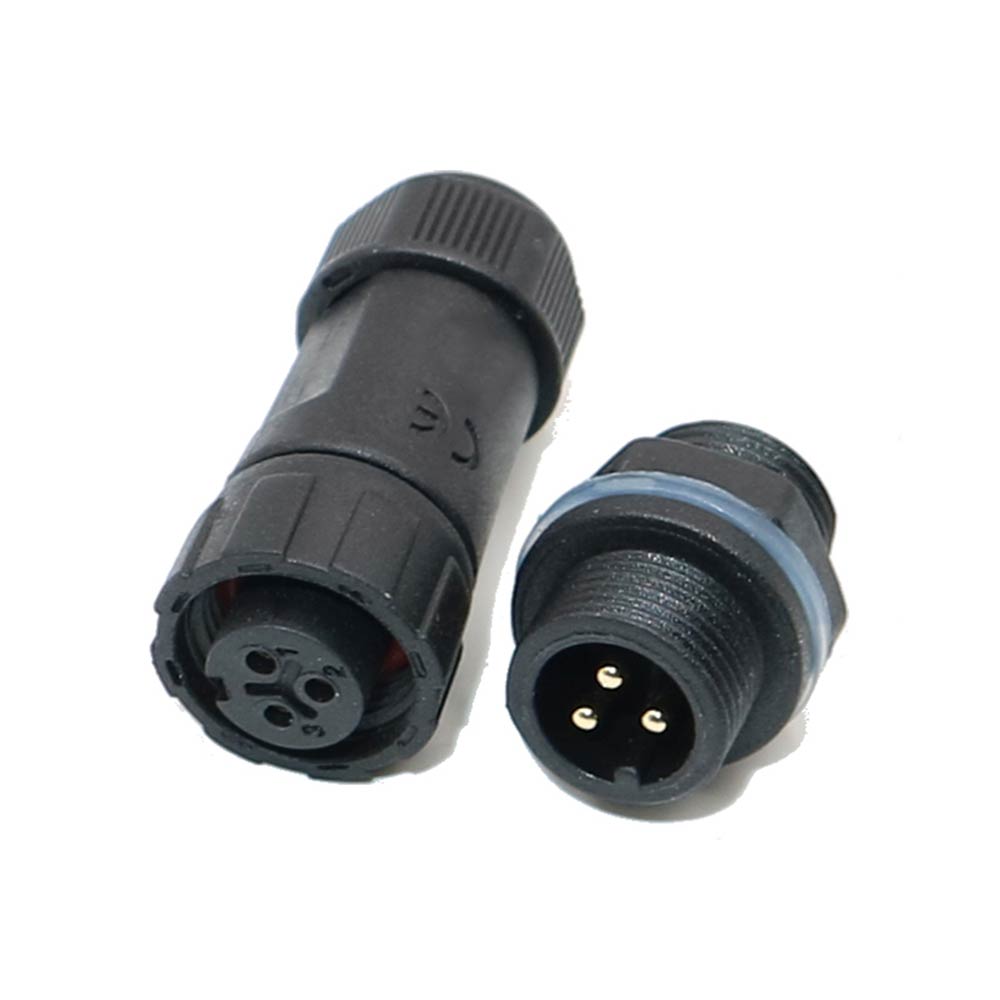

Elecbee M12 3-Pin Threaded-Locking Rear Panel Mount Waterproof Connector Solder Cup Male Plug & Female Socket (one Pair) IP68 AC/DC Power Connector 300V 10A
SKU: EB-048-0016-H
Favorites
Key Features
- Locking Ring Options: Multiple waterproof locking rings are available （φ4.5mm、φ6.5mm、φ7.1mm）. Please leave a note when ordering for your required size. If no specification is provided, the φ7.1mm locking ring will be shipped by default.
- Reliable Weatherproofing: IP67/IP68 rated protection ensures stable performance in outdoor, marine, industrial, and harsh environments with excellent dust and water resistance.
- Secure Locking Design: M12 Rear Panel Mount Waterproof Connector Designed with threaded-locking and solder termination for reliable wire connection, providing excellent conductivity and stable performance.
- High-Power Capacity: Supports up to 110-300V and 5-15A, making it ideal for high-demand LED lighting, new energy equipment, industrial machinery, and power systems.
- Extreme Durability: Constructed with high-quality PA66 Nylon housing and gold-plated brass contacts for superior corrosion resistance, conductivity, and long service life.
Show More
Specifications
Attribute
Value
Search
Connector Type
Plug, Receptacle
Mounting Type
Panel Mount
Mounting Feature
Bulkhead - Rear Side Nut
Termination
Solder Cup
Contact Type
Male，Female Pin
Number of Positions
3 Pin
Material Flammability Rating
UL94 V-0
Operating Temperature
-25℃~+105℃
Ingress Protection
IP68
Rated Current
15A
Rated Voltage
300V
Features
Waterproof
Connector Series
M12
Color
Black
Fastening Type
Threaded
Orientation
Straight
Shell Material
PVC
Contact Material
Copper Alloy
Contact Finish
Gold Plated
Insulating Materials
PA
Cable Diameter
5.5mm~7.5mm
Shell Size
12
