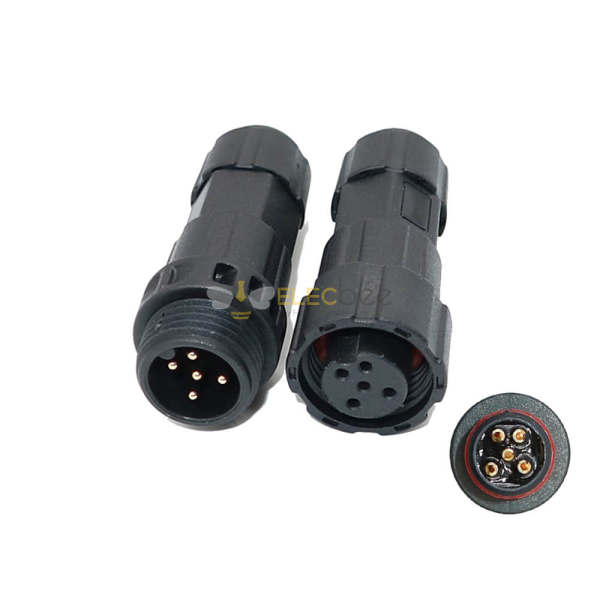

Elecbee M16 Waterproof Cable Connector IP68 5 Pin Male Female Plug Solder Type LED Power Connector

SKU: EB-047-0009

Favorites

Key Features

Waterproof LED, waterproof plug cable, waterproof plug is widely used in outdoor LED (street lights, displays, architectural lighting, etc.), automobiles and ships, LED drive power, LED display, lighthouses, cruise ships, industrial equipment, communication equipment, detection equipment, etc.

Product Name: M16 Waterproof Cable Connector IP68 5 Pin Male Female Plug Solder Type LED Power Connector

Rated voltage: 500V

Rated current:

2 Pin: 15A

3 Pin: 15A

4 Pin: 15A

5 Pin: 5A

6 Pin: 5A

7 Pin: 5A

8 Pin: 5A

9 Pin: 5A

10 Pin: 5A

Contact material: Copper-plated golden

Cable Wiring Method: Solder Type

Withstand voltage: 1500V

Protection grade: IP68

Terminal material: copper, gold plated

Contact resistance: < = 5m Ω

Connector material: Nylon / PVC

Test temperature: - 35 ℃ - + 105 ℃

Flame retardant grade: UL94V-0

Main features of the product:

1. Safe thread insertion and extraction system is more firm and reliable;

2. Waterproof connection, assembly and docking (IP68)

3. A wide range of models for customers to choose;

4. Multi-core type, 2-14 cores optional;

5. Welding, solid pin core

6. High-density installation saves space;

7. The key position selection of multiple plugs can avoid the mixed insertion between similar connectors;

Reviews

ELECBEE

All reviews come from verified purchasers

1 stars

2 stars

3 stars

20%

4 stars

5 stars

60%

A****a

Perfect for my outdoor LED setup. The IP68 rating really holds up in rain, and the gold-plated pins ensure a solid connection. Easy to solder and fits snugly.

R****h

Good quality waterproof connector. Had to use it on a boat light repair—still working after months of saltwater exposure. Soldering takes patience but worth it.

M****h

Used two of these for my garden lighting project. They’re rugged, seal tightly, and handle temperature swings from freezing to hot sun no problem.

k****a

Works well once assembled, but the soldering process is tricky with the small pins. Waterproofing is excellent though—no issues so far.

D****h

Exactly what I needed for a custom LED display. The keying prevents wrong connections, and nylon housing feels durable under stress.
