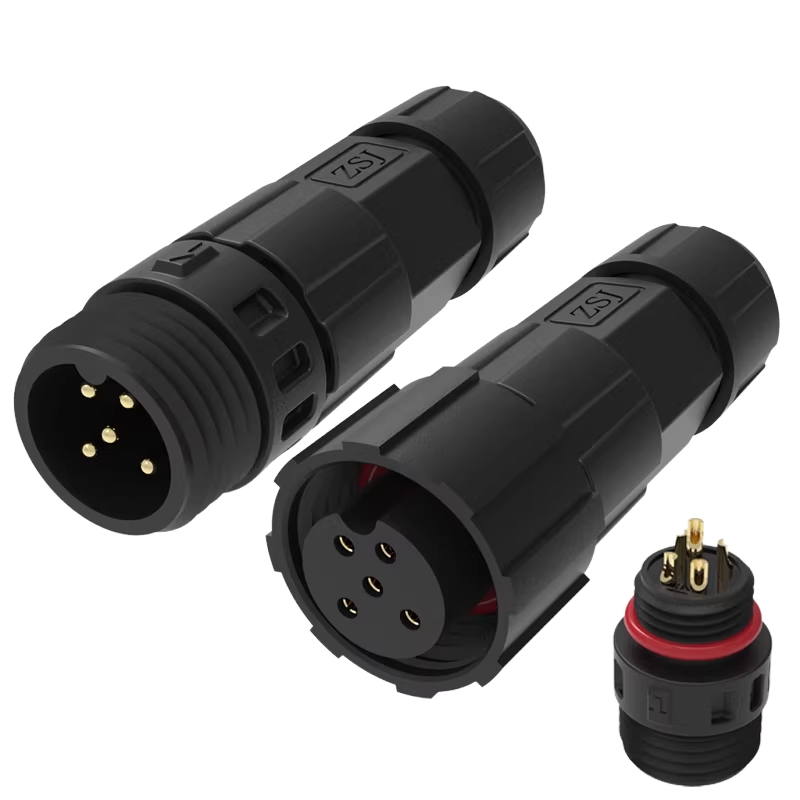

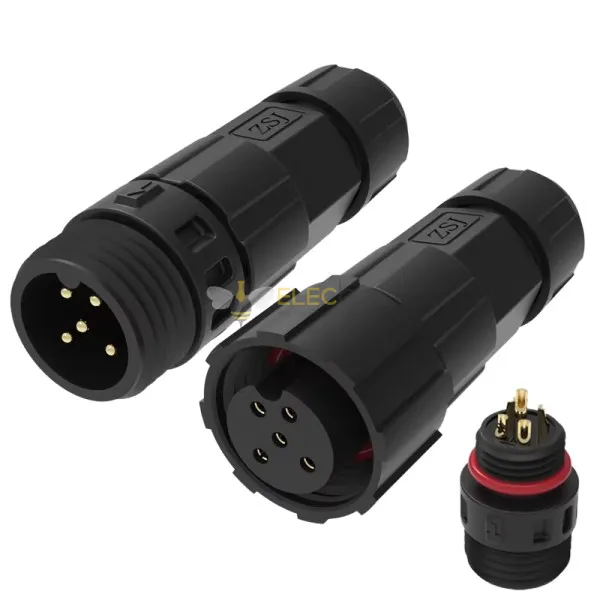

Elecbee M16 5-Pin Waterproof Aviation Connector, IP68 Male & Female Plug Socket Set, 5A 500V Industrial Signal Joint for IoT Water Monitoring
SKU: EB-047-0009
Favorites
Key Features
- IP68 Waterproof Excellence: Engineered for extreme environments, providing a dust-tight and submersible seal (IP67/IP68) perfect for water quality monitoring and outdoor IoT sensors.
- Gold-Plated Signal Integrity: Features high-quality gold-plated brass contacts to ensure low-resistance, anti-corrosive, and ultra-stable signal transmission.
- Heavy-Duty PA66 Nylon Shell: Constructed from premium flame-retardant Nylon (PA), offering superior UV resistance and durability in temperatures ranging from -40°C to 105°C.
- 3,000+ Mating Cycles: Designed for longevity with a high plug-in endurance of over 3,000 cycles, making it ideal for mobile equipment and frequent field maintenance.
- Versatile 5A/500V Capacity: Supports 5A rated current and up to 500V AC/DC, providing the power and signal headroom needed for complex industrial automation.
Show More
In-Stock
Qty.
1
Unit Price
$ 4.92
Ext. Price
$ 4.92
$ 4.92
Specifications
Attribute
Value
Search
Termination
Solder
Contact Type
Male，Female Pin
Number of Positions
5 Pin
Material Flammability Rating
UL94 V-0
Operating Temperature
-40℃~+85℃
Shielding
Unshielded
Ingress Protection
IP68
Rated Current
10A
Rated Voltage
110V
Connector Series
M16
Color
Black
Fastening Type
Threaded
Orientation
Straight
Shell Material
PVC
Packing
Multi-pack Packaging
Contact Material
Copper
Contact Finish
Gold Plated
Insulating Materials
PA
Shell Size
16
Insulation Color
Black
Description
Reliably bridge your data and power in harsh conditions with the Elecbee M16 5-Pin Waterproof Aviation Connector. This male and female matching set is the definitive solution for Smart Agriculture, industrial automation, and environmental monitoring systems. Designed for a 8.8mm cable diameter, it provides a rugged, watertight connection that withstands the most demanding outdoor and underwater applications.
Built with industrial-grade PA66 Nylon, the housing is both impact-resistant and flame-retardant. The internal gold-plated brass hardware ensures that your sensors—whether for water PH, soil moisture, or IoT telemetry—maintain precise communication without signal degradation. Technical highlights include:
- Waterproof Rating: IP67 / IP68 (Submersible).
- Electrical Specs: 5-Pin, 5A per pin, 500V Max Voltage.
- Operating Range: Extreme temperature resistance from -40°C to 105°C.
- Cable Diameter Support: Standard 8.8mm (Customizable options available).
- Interface: Compatible with both AC and DC power/signal configurations.
The Elecbee M16 Series is the professional choice for IoT hardware engineers who require "set-and-forget" reliability. Its robust screw-lock mechanism ensures that your connections remain secure against vibration, moisture, and mechanical stress in 24/7 industrial deployments.
Shopping Guide
Shipping | Delivery Period | Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. Express: 3-7 days. Standard Post: 7-20 days. | |
| Shipping Rates | Shipping rates for your order can be found in the shopping cart. | ||
| Shipping Options | We offer express and standard delivery services. | ||
| Shipping Tracking | We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature. | ||
| Returning/Warranty | Returning | Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping | |
| Warranty | All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects. | ||
| This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation | |||
| Ordering | How to Buy | Elecbee accepts online orders. | |
| Add to cart > Check out > Submit order > Complete payment > Delivery | |||
| Payment | PayPal, Credit Card includes Visa, Master, American Express, Bank transfer. | ||
Recommended For You
Reviews(5)
4 /5
All reviews come from verified purchasers
5
60%
4
20%
3
20%
2
0%
1
0%
A****a
Perfect for my outdoor LED setup. The IP68 rating really holds up in rain, and the gold-plated pins ensure a solid connection. Easy to solder and fits snugly.
R****h
Good quality waterproof connector. Had to use it on a boat light repair—still working after months of saltwater exposure. Soldering takes patience but worth it.
M****h
Used two of these for my garden lighting project. They’re rugged, seal tightly, and handle temperature swings from freezing to hot sun no problem.
k****a
Works well once assembled, but the soldering process is tricky with the small pins. Waterproofing is excellent though—no issues so far.
D****h
Exactly what I needed for a custom LED display. The keying prevents wrong connections, and nylon housing feels durable under stress.
