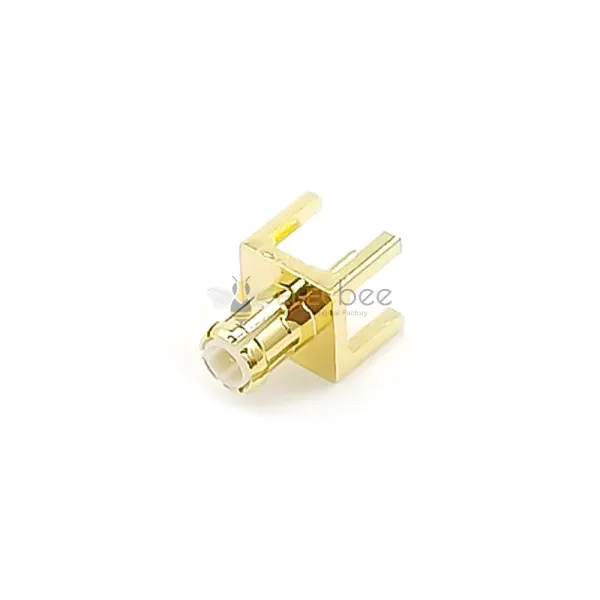

Elecbee MCX Coaxial Connector Standard Male Straight Gold Plating Panel Mount Through Hole

SKU: EB-004-0068

Favorites

Key Features

Features:

RF Connector,MCX,Male,Straight,Standard,Through Hole,Panel Mount,Gold Plating
30% smaller than SMB with same contact and insulator size, make MCX connector lighter and work in smaller space;
Snap-on Interface ideal for quick Installation and discount;
High cost-effective with excellent boardband performance and low reflections.
High Quality with 30 days 100% Money back;
From the OEM Original Factory, same quality with much better price.

Main Application of MCXxa0Connectors:

Consumer Electronic: GPS, HDTV, Wireless Internet TV and Audio, smart phone antenna port,xa0
Aerospace and Defense: GPS and Hand-held Device
Technology: Telemetry
Telecommunications: GPS tracking, positioning and navigation devices, Telecommunications networks, Wireless Base Station, Wireless-LAN
Data/Communications: Wireless-LAN, Wireless-PAN(bluetooth), Wireless-WAN
Industrial: Machine to machine communications

Reviews

ELECBEE

All reviews come from verified purchasers

1 stars

2 stars

3 stars

20%

4 stars

5 stars

60%

G****s

Perfect for compact RF designs. The gold plating and 50-ohm impedance ensure solid signal integrity up to 6 GHz. Easy to mount through-hole, and the snap-on coupling saves so much time during assembly.

f****t

Great value connector. Much smaller than SMB but performs just as well. I'm using these on a high-density board and they fit perfectly. Only wish the datasheet was clearer about PTFE temp range.

S****a

Reliable connection and built to last. Passed vibration and corrosion tests in our field unit. Be-Cu contact with gold plating shows no wear after 500+ mating cycles.

m****g

Good performance overall, but handling requires care—leads are thin. Works well in my 5G test setup with low VSWR. Just need to be precise when soldering.

M****h

Exactly as described. The 30% size reduction vs SMB made a big difference in my design. High-quality gold-plated brass body and excellent broadband response. Will buy again.
