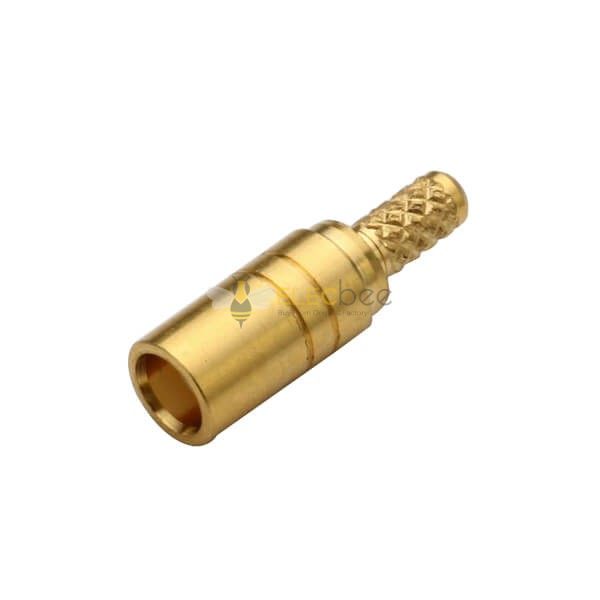

Elecbee Videos MCX Connector Crimp Type Straight Female for Cable RG178
SKU: EB-004-0022
Favorites
Key Features
- Cable Connector, jack/female, Straight/180°, 50Ω, RG178, Crimp Type;
- 30% smaller than SMB with same contact and insulator size, make MCX connector lighter and work in smaller space;
- Snap-on Interface ideal for quick Installation and discount;
- High cost-effective with excellent boardband performance and low reflections.
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
Main Application of MCXxa0Connectors:
Consumer Electronic: GPS, HDTV, Wireless Internet TV and Audio, smart phone antenna port,
Aerospace and Defense: GPS and Hand-held Device
Technology: Telemetry
Telecommunications: GPS tracking, positioning and navigation devices, Telecommunications networks, Wireless Base Station, Wireless-LAN
Data/Communications: Wireless-LAN, Wireless-PAN(bluetooth), Wireless-WAN
Industrial: Machine to machine communications
Show More
Specifications
Attribute
Value
Search
Connector Type
Jack
Number of Ports
1
Mounting Type
Cable Type
Termination
Crimp
Contact Type
Female Pin
Shell Finish
Gold Plated
Impendance
50 Ohms
Frequency Max
4 GHz
Suitable Cable
RG178
Connector Series
MCX
Color
Gold
Fastening Type
Push-on
Orientation
Straight
Shell Material
Copper Alloy
