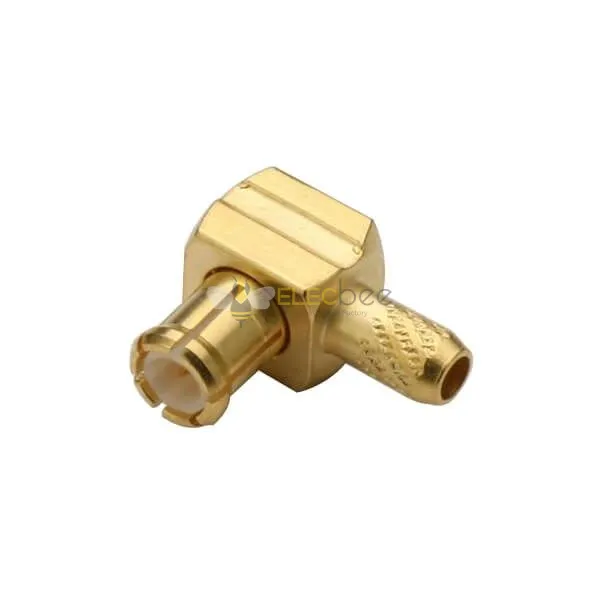

Elecbee Best MCX Connector Crimp Type Angled Plug for Cable RG316

SKU: EB-004-0024
Favorites

Key Features

  • Cable Connector, plug/male, Angle/90°, 50Ω, RG316, Crimp Type;
  • 30% smaller than SMB with same contact and insulator size, make MCX connector lighter and work in smaller space;
  • Snap-on Interface ideal for quick Installation and discount;
  • High cost-effective with excellent boardband performance and low reflections.
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.

Main Application of MCXxa0Connectors:

Consumer Electronic: GPS, HDTV, Wireless Internet TV and Audio, smart phone antenna port,
Aerospace and Defense: GPS and Hand-held Device
Technology: Telemetry
Telecommunications: GPS tracking, positioning and navigation devices, Telecommunications networks, Wireless Base Station, Wireless-LAN
Data/Communications: Wireless-LAN, Wireless-PAN(bluetooth), Wireless-WAN
Industrial: Machine to machine communications


Show More
Attribute
Value
Connector Type
Male
Number of Ports
1
Mounting Type
Cable Type
Termination
Crimp
Contact Type
Male Pin
Shell Finish
Gold Plated
Impendance
50 Ohms
Frequency Max
4 GHz
Suitable Cable
RG316
Connector Series
MCX
Color
Gold
Fastening Type
Push-on
Orientation
Right Angled
