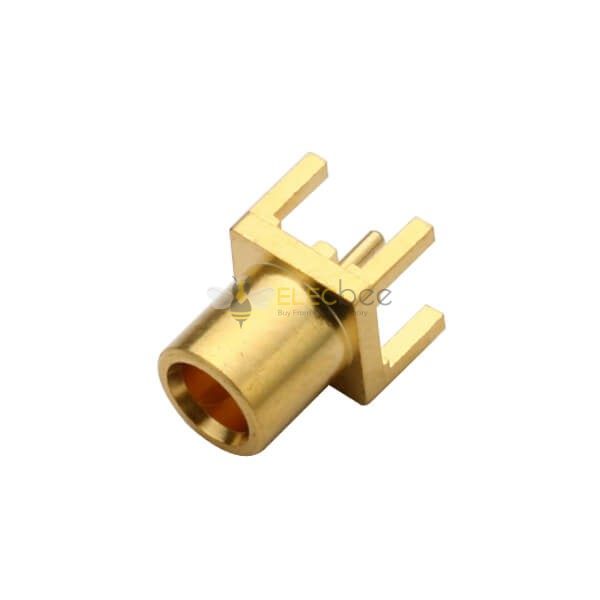

Elecbee Best MCX Connectors Straight Female Through Hole for PCB
SKU: EB-004-0016
Favorites
Key Features
- Pcb Mount,Straight/180°, 50Ω,jack/female,Through Hole;
- 30% smaller than SMB with same contact and insulator size, make MCX connector lighter and work in smaller space;
- Snap-on Interface ideal for quick Installation and discount;
- High cost-effective with excellent boardband performance and low reflections.
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
Main Application of MCXxa0Connectors:
Consumer Electronic: GPS, HDTV, Wireless Internet TV and Audio, smart phone antenna port,
Aerospace and Defense: GPS and Hand-held Device
Technology: Telemetry
Telecommunications: GPS tracking, positioning and navigation devices, Telecommunications networks, Wireless Base Station, Wireless-LAN
Data/Communications: Wireless-LAN, Wireless-PAN(bluetooth), Wireless-WAN
Industrial: Machine to machine communications
Show More
In-Stock
Qty.
1
Unit Price
$ 1.95
Ext. Price
$ 1.95
$ 1.95
Specifications
Attribute
Value
Search
Connector Type
Jack
Number of Ports
1
Mounting Type
Panel Mount
Mounting Feature
Through Hole
Termination
Solder
Contact Type
Female Pin
Shell Finish
Gold Plated
Impendance
50 Ohms
Frequency Max
4 GHz
Connector Series
MCX
Color
Gold
Fastening Type
Push-on
Orientation
Straight
Shell Material
Copper Alloy
Shopping Guide
Shipping | Delivery Period | Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. Express: 3-7 days. Standard Post: 7-20 days. | |
| Shipping Rates | Shipping rates for your order can be found in the shopping cart. | ||
| Shipping Options | We offer express and standard delivery services. | ||
| Shipping Tracking | We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature. | ||
| Returning/Warranty | Returning | Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping | |
| Warranty | All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects. | ||
| This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation | |||
| Ordering | How to Buy | Elecbee accepts online orders. | |
| Add to cart > Check out > Submit order > Complete payment > Delivery | |||
| Payment | PayPal, Credit Card includes Visa, Master, American Express, Bank transfer. | ||
Recommended For You
Reviews(6)
4.5
5★
67%(4)4★
17%(1)3★
17%(1)2★
0%(0)1★
0%(0)All reviews come from verified purchasers
T
Great price, good quality very fast delivery
Y
High-quality plating and consistent impedance. Used in a defense handheld prototype—performs reliably even under vibration. Will buy again.
V
Works well electrically, but be careful with hand soldering—PTFE insulator tolerates heat, but alignment matters. Good value for 50Ω RF applications.
F
Exactly what I needed for a telemetry board. Their 30% smaller size vs SMB saved space, and the through-hole mounting is solid after 500+ mating cycles test.
J
Good performance up to 6 GHz, low VSWR as advertised. Slightly tricky to solder due to small size, but that’s expected. Great for compact wireless-LAN projects.
