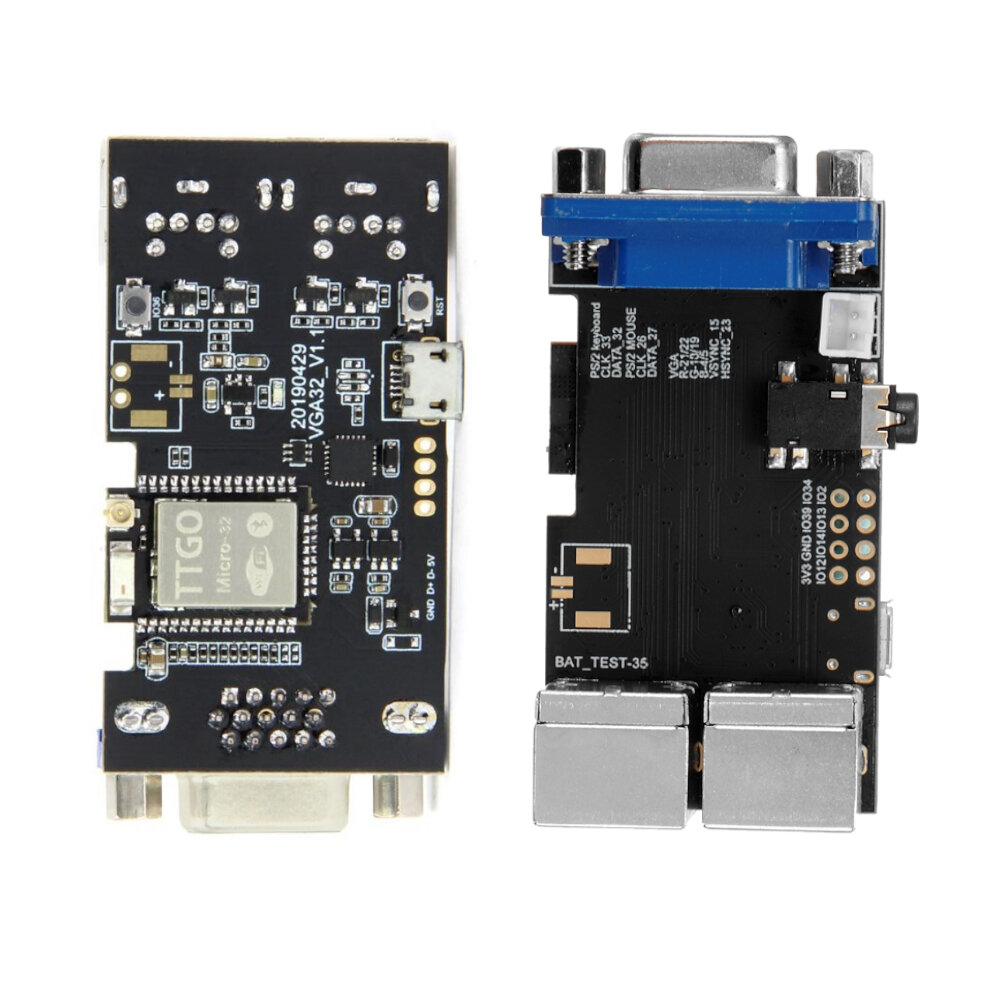

Elecbee TTGO VGA32 V1.4 Controller PS/2 Mouse And Keyboard Controller Graphics Library Game Engine ANSI/VT Terminal For ESP32

SKU: EB-1874190

Favorites

Key Features

Feature:

Update information: Add audio output interface 3.5mm interface, and speaker output JST 2.0 PH 2-Pin interface

Hardware

Specifications

Chipset

TTGO Micro32

FLASH

QSPI flash 4MB / PSRAMxa08MB

SRAM

520 kB SRAM

Button

Reset

IO36

Extended function

VGA, PS/2

USB to TTL

CH9102F

Modular interface

UART

SPI

SDIO

I2C

LED PWM

TV PWM

I2S

IRGPIO

capacitor touch sensor

ADC

DACLNAxa0 pre-amplifier

On-board clock

40MHz crystal oscillator

Working voltage

2.7V-3.6V

Working current

about 30mA

Sleep current

230uA

Working temperature range

-40

℃

~ +85

℃

Size & Weight

without VGA: 60.99mm*32.06mm*16.79mm

with VGA:xa066.70mm*32.06mm*16.79mm

21.25g

Power Supply

Specifications

Power Supply

USB 5V/1A

Charging current

500mA

Battery

3.7V lithium battery

Wi-Fi

Description

Standard

FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC

Protocol

802.11 b/g/n(802.11n

speed up to150Mbps)A-MPDU and A-MSDU polymerization

support 0.4μS Protection interval

Frequency range

2.4GHz~2.5GHz(2400M~2483.5M)

Transmit Power

22dBm

Communication distance

300m

Bluetooth

Description

Protocol

meet bluetooth v4.2BR/EDR and BLE standard

Radio frequency

with -97dBm sensitivity NZIF receiver Class-1,Class-2&Class-3 emitter AFH

Audio frequency

CVSD&SBC audio frequency

Software specification

Description

Wi-Fi Mode

Station/SoftAP/SoftAP+Station/P2P

Security mechanism

WPA/WPA2/WPA2-Enterprise/WPS

Encryption Type

AES/RSA/ECC/SHA

Firmware upgrade

UART download/OTA (

Through network/host to download and write firmware)

Software Development

Support cloud server development /SDK for user firmware development

Networking protocol

IPv4

IPv6

SSL

TCP/UDP/HTTP/FTP/MQTT

User Configuration

AT + Instruction set, cloud server, android/iOSapp

FreeRTOS

Specifications
