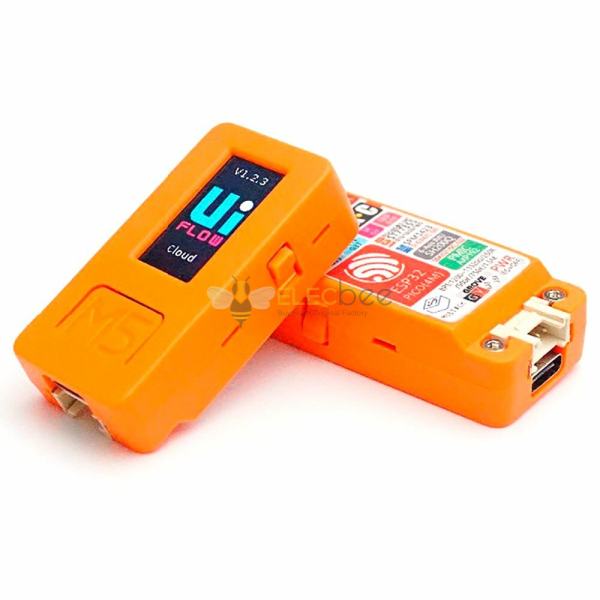

Elecbee ESP32 PICO Color LCD Mini IoT Development Board Finger Computer

SKU: EB0041465

Favorites

Key Features

Item Features:

- 5V DC power supply

- USB Type-C

- ESP32-based

- 4 MByte Flash

- 6-Axis IMU MPU6886

- Red LED

- Buzzer

- IR transmitter

- 1 Buttons, OLED(1.3 inch), 1 Reset

- 2.4G Antenna: Proant 440

- 95 mAh Lipo Battery

- Extendable Socket

- Grove Port

- Wearable & Wall mounted

- Development Platform UIFlow, MicroPython, for

ESP32 Features:

- 240 MHz dual core Tensilica LX6 microcontroller with 600 DMIPS

- Integrated 520 KB SRAM

- Integrated 802.11b/g/n HT40 Wi-Fi transceiver, baseband, stack and LWIP

- Integrated dual mode Bluetooth

- Hall sensor

- 10x capactive touch interface

- 32 kHz crystal oscillator

- PWM/timer input/output available on every GPIO pin

- SDIO master/salve 50MHz

- SD-card interface support

Datasheet

EB0041465

Specifications

Show Similar Products >

Description

Description:

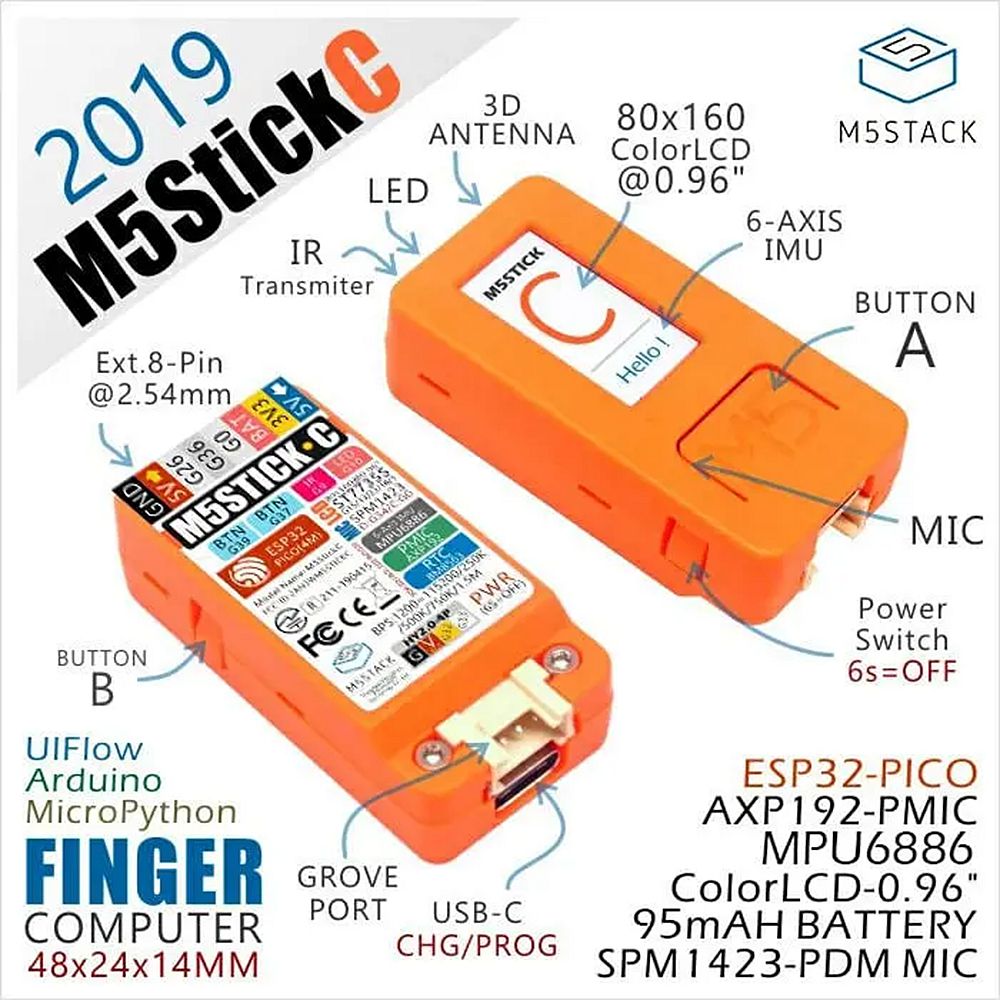

M5Stick is a mini M5Stack, powered by ESP32. It is a portable, easy-to-use, open source, IoT development board.

What it can do? This tiny block is able to realize your idea, enlight your creativity, and help with your IoT prototying in a very short time. It will takes away a lot of the pains form the development process.

M5stick is one of the core devices in M5Stack product series which is built in a continues growing hardware & software ecosystem. It has a lot of compatible modules & units, as well as the open source code & engineering community that will help you maximum your good in every step of the developing process.

RED LED & IR Transmitter & BUTTON A & BUTTON B

ESP32	GPIO10	GPIO9	GPIO37	GPIO39
RED LED	LED PIN
IR Transmitter		Transmitter Pin
Button A			Button Pin
Button B				Button Pin

TFT LCD
Driver IC:ST7735S
Resolution:80 * 160

ESP32	GPIO15	GPIO13	GPIO23	GPIO18	GPIO5
TFT LCD	TFT_MOS1	TFT_CLK	TFT_DC	TFT_RST	TFT_CS

GROVE PORT

ESP32	GPIO33	GPIO32	5V	GND
GROVE port	SCL	SDA	5V	GND

MIC (SPM1423)

ESP32	GPIO0	GPIO34
MICPHONE	SCL	SDA

6-Axis posture sensor (MPU6886) & power management IC (AXP192)

ESP32	GPIO22	GPIO21
6-Axis posture sensor	SCL	SDA
power management IC	SCL	SDA

Power on / off:

Power on: Click the reset button

Shutdown: Double the reset button

datasheet

ESP32-PICO
ST7735S
BM8563
MPU6886
AXP192
SPM1423

Package Included:

1x M5StickC
1x USB Type-C cable

M5StickC-ESP32-PICO-Color-LCD-Mini-IoT-Development-Board-Finger-Computer-1476576
