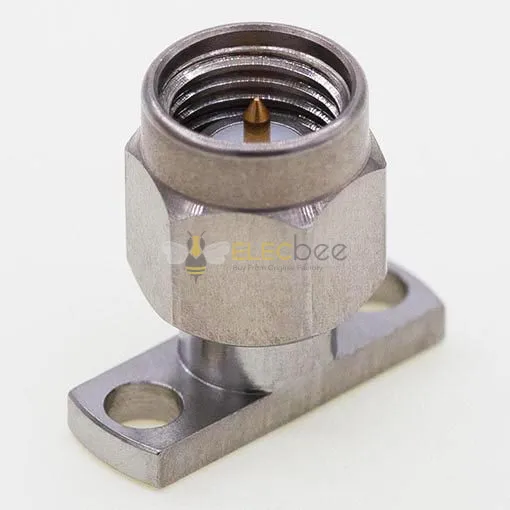

Elecbee SMA Male Connector, 12.7 x 4.8mm / 0.500 x 0.190inch Flange for 0.23mm / .009″ Pin
SKU: EB-DRF-0166
Favorites
Key Features
- SMA Male connector with waterproof design for reliable signal transmission.
- Compatible with 0.23mm pin size, ideal for precision RF applications.
- 1M single-ended cable with straight male soldering connection for easy installation.
Show More
Description
Part Number: EB-DRF-0166
Description: SMA Male Connector, 12.7 x 4.8mm / 0.500 x 0.190inch Flange Plug Receptacle for 0.23mm / .009″ Pin.
This EB-DRF-0166, 2 hole flange male SMA connector with size 12.7 x 4.8mm / 0.500 x 0.190inch flange plug receptacle for pin 0.23mm / 0.009inch, with frequency range from DC to 27GHz, 50Ω impedance, VSWR 1.10:1 (max) for DC~18GHz and 1.15:1 (max) for 18GHz~27GHz, 500 cycles durability and -55°C~+165°C operating temperature.
Advantages
- Small Size
- High Reliable
- Good Mechanical Performance
- Wide Frequency Range from DC to 27GHz
Applications
- General Purpose Test
- Field Replacement Connector
- Rack and Panel Mount Application
- Receptacle for Pin 0.23mm / 0.009″
Key Features
| Polarity | Standard |
| Connector Type | SMA |
| Connector Gender | Male |
| Impedance | 50Ω |
| Body Shape | Straight |
| Panel Mounting | 2 Hole Flange |
| Attachment Method | Field Replacement |
| Frequency Range | DC~27GHz |
Performance Features
| VSWR： | DC~18GHz: 1.10:1 (Max) |
| 18GHz~27GHz:1.15:1 (Max) | |
| Contact resistance | Center Conductor≤3.0mΩ |
| Outer Conductor≤2.0mΩ | |
| Insulation resistance | ≥5000MΩ |
| Withstanding Voltage | 1000V |
| Durability | 500 Cycles |
| Operating Temperature | -55℃~+165℃ |
Material Specifications
| Housing | Type 303 Stainless Steel |
| Polished & Passivated | |
| Centre Contact | Beryllium Copper Plated |
| Gold (MIL-G-45204) | |
| Insulators | PTFE & PEI |
