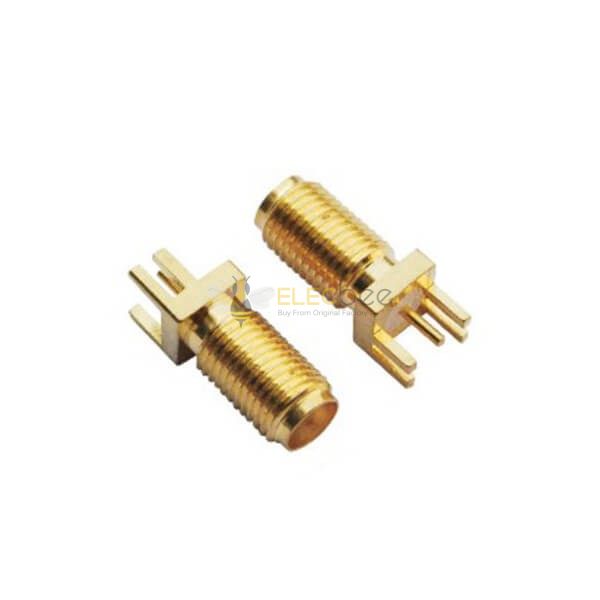

Elecbee RF Coaxial connector Standard SMA Jack Straight Solder Type for PCB mount
SKU: EB-007-0006
Favorites
Key Features
SMA Female Jack 50 Ohms RF coaxial connector for DC to 6 GHz signal connections.
Fit and installation Straight board edge mount with front nut bulkhead design uses solder termination.
Materials and mating Brass body with gold plated brass contacts and threaded mating for a secure connection. PTFE insulation.
RF applications SMA PCB connector for RF modules, antenna interface boards and microwave test fixtures.
Fit and installation Straight board edge mount with front nut bulkhead design uses solder termination.
Materials and mating Brass body with gold plated brass contacts and threaded mating for a secure connection. PTFE insulation.
RF applications SMA PCB connector for RF modules, antenna interface boards and microwave test fixtures.
Show More
In-Stock
Qty.
1
Unit Price
$ 1.90
Ext. Price
$ 1.90
$ 1.90
Specifications
Attribute
Value
Search
Connector Type
Jack
Number of Ports
1
Mounting Type
Board Edge, Straddle Mount
Mounting Feature
Bulkhead - Front Side Nut
Termination
Solder
Contact Type
Female Pin
Shell Finish
Gold Plated
Impendance
50 Ohms
Connector Series
SMA
Color
Gold
Fastening Type
Threaded
Orientation
Straight
Shell Material
Brass
Contact Material
Brass
Contact Finish
Gold Plated
Insulating Materials
PTFE
Frequency Range
DC~6GHz
Related Resources
Shopping Guide
Shipping | Delivery Period | Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. Express: 3-7 days. Standard Post: 7-20 days. | |
| Shipping Rates | Shipping rates for your order can be found in the shopping cart. | ||
| Shipping Options | We offer express and standard delivery services. | ||
| Shipping Tracking | We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature. | ||
| Returning/Warranty | Returning | Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping | |
| Warranty | All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects. | ||
| This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation | |||
| Ordering | How to Buy | Elecbee accepts online orders. | |
| Add to cart > Check out > Submit order > Complete payment > Delivery | |||
| Payment | PayPal, Credit Card includes Visa, Master, American Express, Bank transfer. | ||
Recommended For You
Reviews(6)
4.5
5★
67%(4)4★
17%(1)3★
17%(1)2★
0%(0)1★
0%(0)All reviews come from verified purchasers

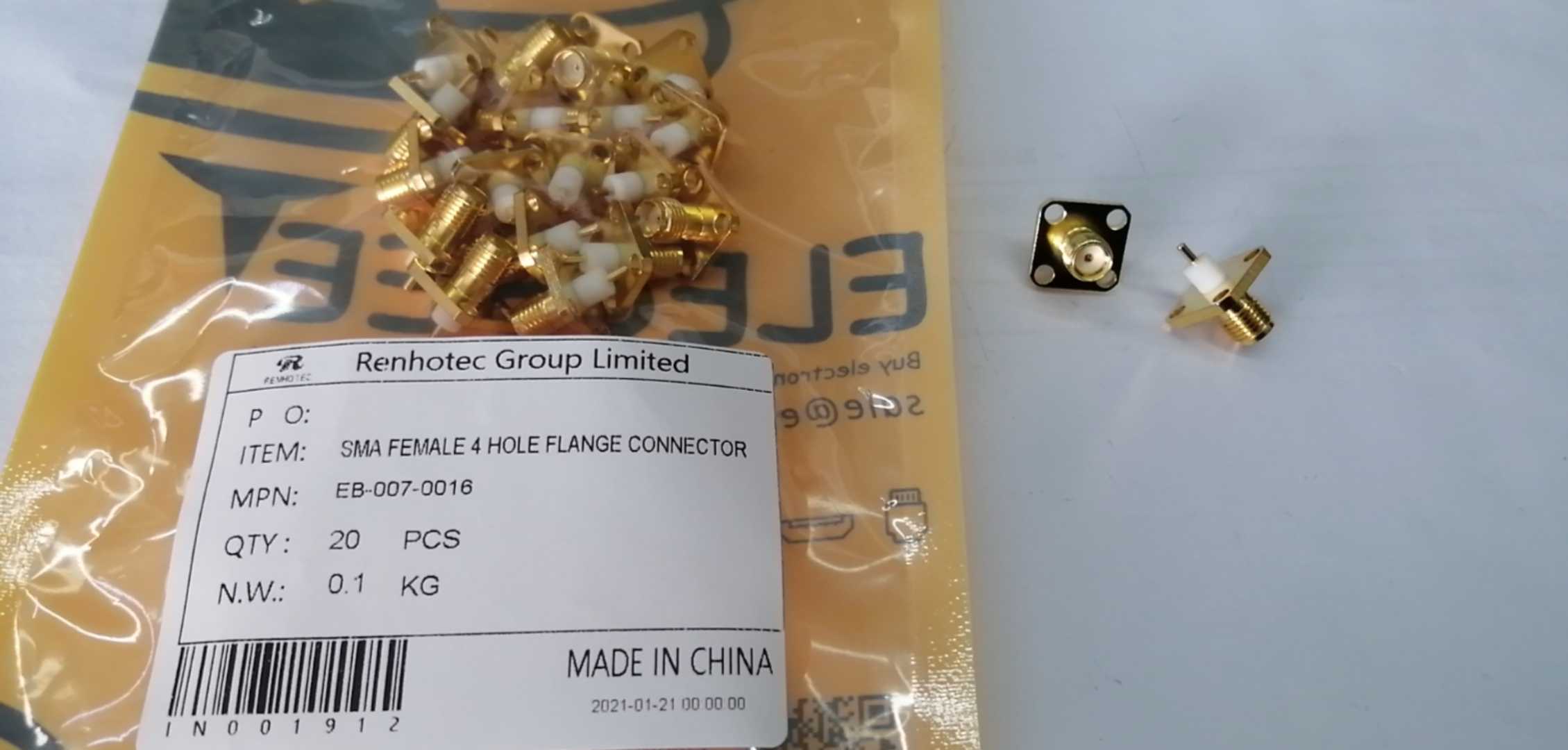

J
Product as described. I needed them to make adapters from the SMA connectors of my radios to home brew antennas and various adapters. Worked like a charm.
S
Exactly as described. Low reflection and stable up to 18GHz in testing. The 30-day money-back offer gave me confidence—I won’t be returning these!
S
Solid performance and good for Wi-Fi and GPS applications. Took a few tries to align during soldering, but works flawlessly once mounted.
K
Excellent value from the original factory. Performs just like pricier brands. The thread coupling is tight and secure—ideal for compact wireless base station modules.
K
Great connector for high-frequency use up to 6 GHz. The Teflon insulator and brass body feel durable. Only wish the packaging had been a bit more protective.
