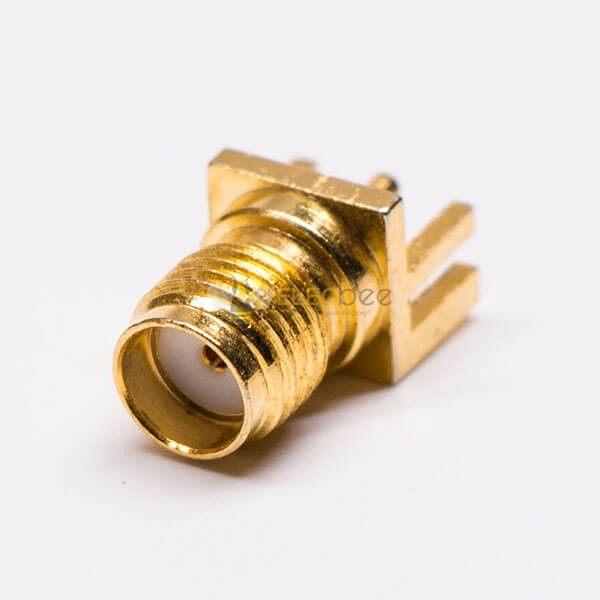

Elecbee RF Coaxial connector Standard SMA Jack Straight Solder Type for PCB mount
SKU: EB-007-0007
Favorites
Key Features
- Pcb Mount, Jack/female, Straight/180°, 50Ω,Edge Mountxa0;
- Excellent electrical performance up to 18GHz with low reflection;
- Thread type coupling mechanism ensure small loss and high security in compact design;
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
Main Application of SMA Connectors:
- Aerospace and Defense: Hand-held field Device and Instrumentation
- Technology: Instrumentation
- Commercial Vehicle: Bluetooth and GPS
- Telecommunications: Wireless Base Stations, Cellular Mobile System
- Data/Communications:Wifi, WiMAX
- Industrial: Active and passive components, instrumentation, M2M Communications, Vehicle Tracking System
Show More
In-Stock
Qty.
1
Unit Price
$ 2.5
Ext. Price
$ 2.50
$ 2.50
Specifications
Attribute
Value
Search
Connector Type
Jack
Number of Ports
1
Mounting Type
Panel Mount
Mounting Feature
Edge Mount
Termination
Solder
Contact Type
Female Pin
Shell Finish
Gold Plated
Impendance
50/75 Ohms
Frequency Max
26.5 GHz
Connector Series
SMA
Color
Yellow
Fastening Type
Threaded
Orientation
Right Angled
Shell Material
Copper
Packing
Individual Packaging
Contact Material
Phosphor Bronze
Contact Finish
Gold Plated
Insulating Materials
PTFE
Related Resources
Certificates
Shopping Guide
Shipping | Delivery Period | Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. Express: 3-7 days. Standard Post: 7-20 days. | |
| Shipping Rates | Shipping rates for your order can be found in the shopping cart. | ||
| Shipping Options | We offer express and standard delivery services. | ||
| Shipping Tracking | We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature. | ||
| Returning/Warranty | Returning | Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping | |
| Warranty | All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects. | ||
| This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation | |||
| Ordering | How to Buy | Elecbee accepts online orders. | |
| Add to cart > Check out > Submit order > Complete payment > Delivery | |||
| Payment | PayPal, Credit Card includes Visa, Master, American Express, Bank transfer. | ||
Recommended For You
Reviews(7)
5 /5
All reviews come from verified purchasers
5
71%
4
14%
3
14%
2
0%
1
0%

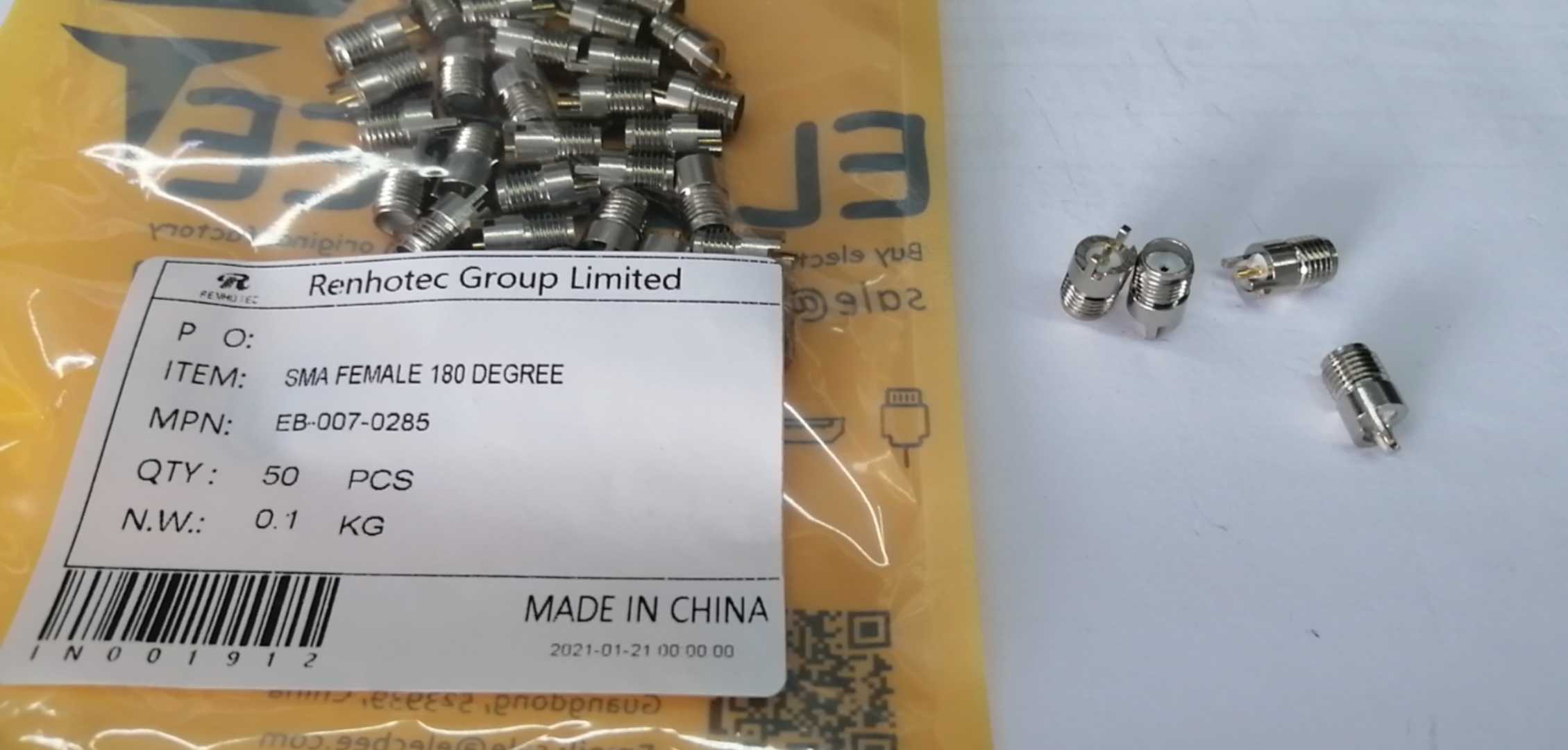

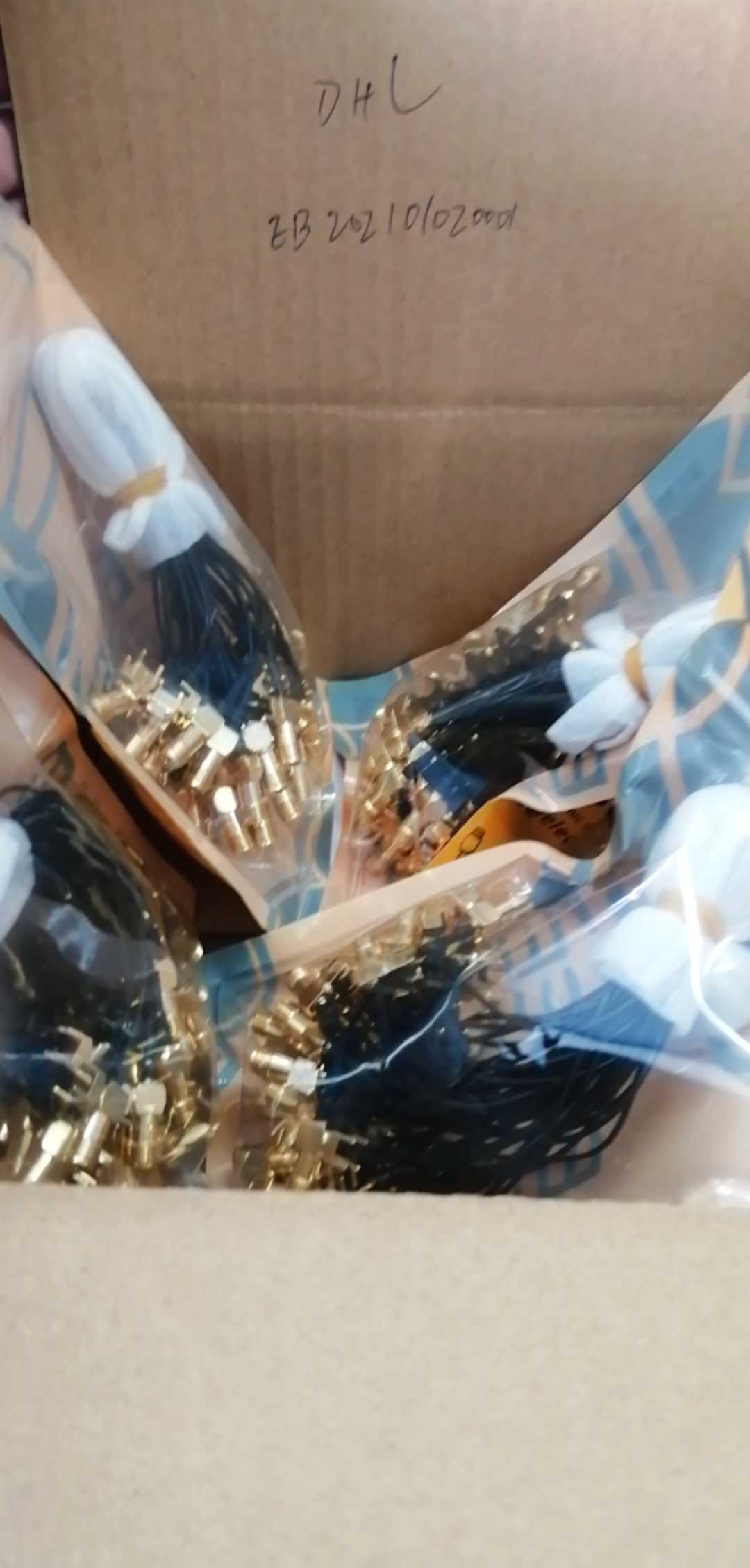

E****a
Great product
J****s
We were able to terminate the cables correctly the first time. System works great.
T****e
Perfect for my RF project! The SMA jack fits neatly on the PCB edge, and the solder joint is solid. Works flawlessly up to 3 GHz with no signal loss.
j****m
Good quality connector at a competitive price. The gold-plated brass body and Teflon insulator give it a professional feel. Easy to mount and holds well.
O****d
Exactly as described – straight 180° jack with 50Ω impedance. Performed well in my WiMAX test setup. Low VSWR and stable under vibration.
R****r
Works okay, but be careful when tightening the coupling nut—needs exactly 30 in-lbs. Slightly fiddly to solder on dense boards.
P****s
Great value for an OEM-grade part. Using these in a GPS tracking array and they’ve held up through thermal cycling and humidity tests.
