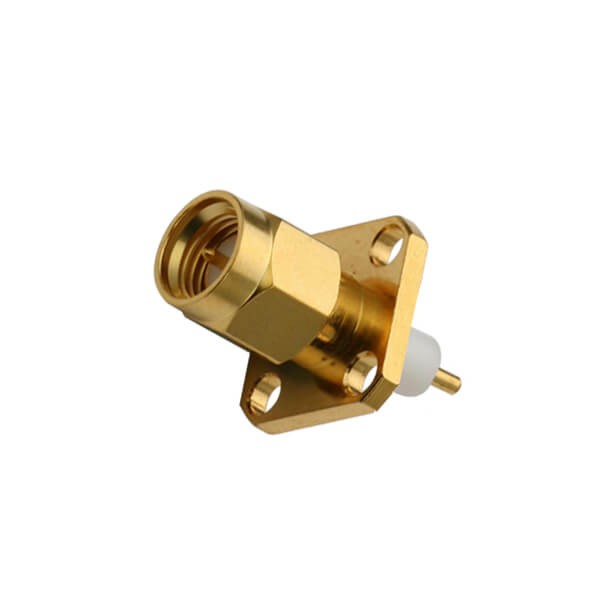

Elecbee RF Coaxial connector Standard SMA Plug Right Angle Solder Type for PCB mount

SKU: EB-007-0069

Favorites

Key Features

Panel Mount, plug/male, straight/180°, 50Ω, 4Hole Flange, Extended PTFE ;
Excellent electrical performance up to 18GHz with low reflection;
Thread type coupling mechanism ensure small loss and high security in compact design;
High Quality with 30 days 100% Money back;
From the OEM Original Factory, same quality with much better price.

Main Application of SMA Connectors:

Aerospace and Defense: Hand-held field Device and Instrumentation
Technology: Instrumentation
Commercial Vehicle: Bluetooth and GPS
Telecommunications: Wireless Base Stations, Cellular Mobile System
Data/Communications:Wifi, WiMAX
Industrial: Active and passive components, instrumentation, M2M Communications, Vehicle Tracking System

Reviews

ELECBEE

All reviews come from verified purchasers

1 stars

2 stars

3 stars

17%

4 stars

5 stars

67%

J****r

These are excellent for making dipole antennae, or other applications where you need to solder to both conductors. Much better for that application than the surface / panel mount type.

K****d

Perfect for my GPS module build. The SMA right-angle plug fits neatly on the PCB, and the gold-plated contact ensures solid signal up to 18GHz. Great value for the quality.

G****i

Solid stainless steel body and precise threading make installation reliable. Soldering was easy, and VSWR performance is as advertised. One came slightly bent—probably shipping.

M****k

Exactly what I needed for a compact WiMAX transceiver. The extended PTFE insulation and 4-hole flange provide excellent stability on the board. Highly recommend.

V****l

Good connector for the price, works well in my vehicle tracking prototype. Signal integrity is stable, though I wish the solder cup was a bit deeper for finer wires.

B****n

Impressed with the low reflection and consistent 50Ω impedance. Used in a test setup for wireless base stations—performs like much more expensive brands.
