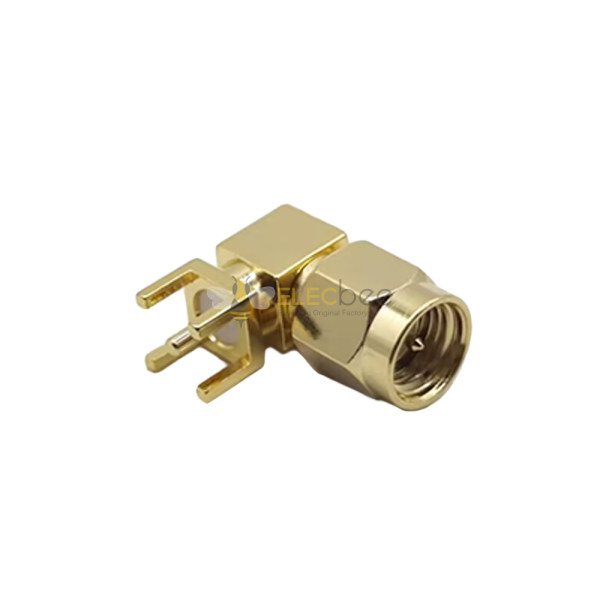

Elecbee RF Coaxial connector Standard SMA Plug Right Angle Solder Type for PCB mount

SKU: EB-007-0149
Favorites
Key Features

Features:

  • SMA Adapter,Male/Plug,Right Angled/90°,Gold Plating,PCB Mount;
  • Excellent electrical performance up to 18GHz with low reflection;
  • Thread type coupling mechanism ensure small loss and high security in compact design;
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.

Appliance:

  • Aerospace and Defense:xa0Hand-held field Device and Instrumentation
  • Technology: Instrumentation
  • Commercial Vehicle: Bluetooth and GPS
  • Telecommunications: Wireless Base Stations, Cellular Mobile System
  • Data/Communications:Wifi, WiMAX
  • Industrial: Active and passive components, instrumentation, M2M Communications, Vehicle Tracking System
Show More
Attribute
Value
Connector Type
Male
Number of Ports
1
Mounting Type
Panel Mount
Mounting Feature
Through Hole
Termination
Solder
Contact Type
Male Pin
Shell Finish
Gold Plated
Impendance
50/75 Ohms
Frequency Max
26.5 GHz
Connector Series
SMA
Color
Yellow
Fastening Type
Threaded
Orientation
Right Angled
Shell Material
Copper
Packing
Individual Packaging
Contact Material
Phosphor Bronze
Contact Finish
Gold Plated
Insulating Materials
PTFE
