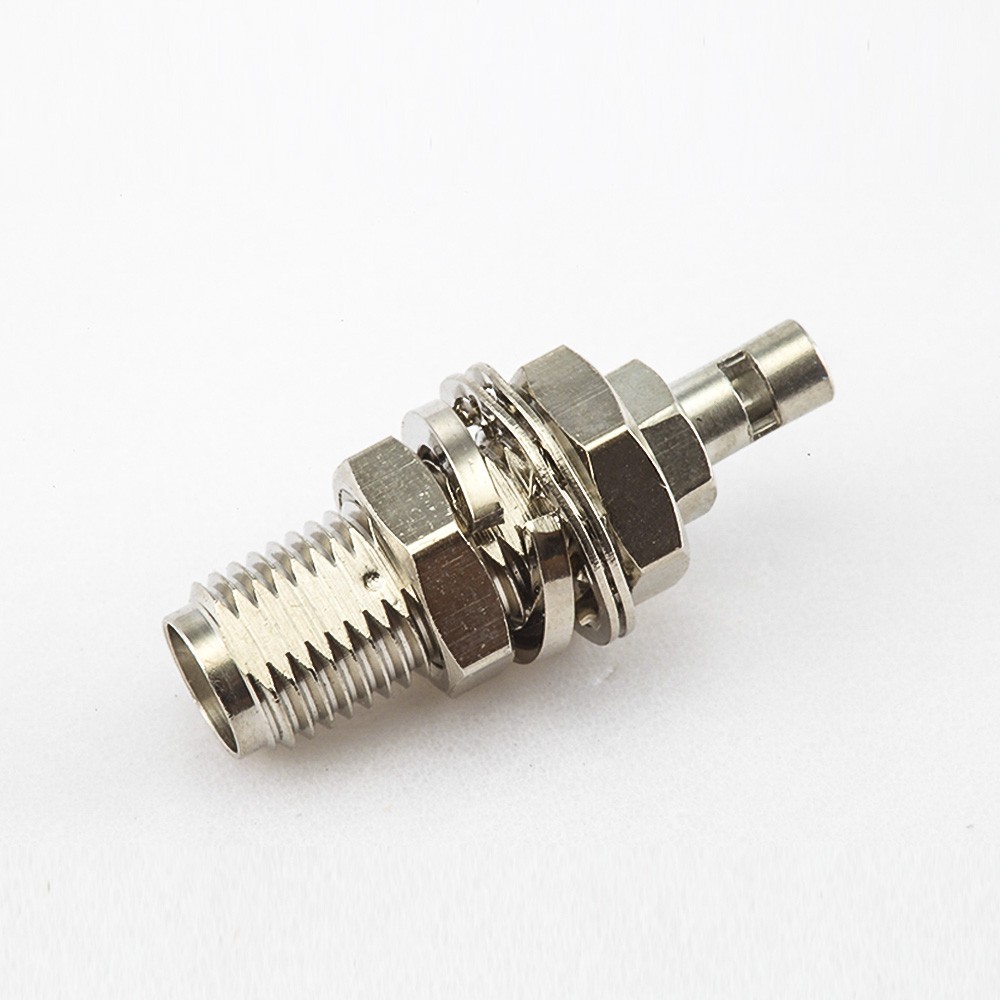

Elecbee RF Coaxial connector Standard SMA Jack Straight Solder Type for PCB mount

SKU: EB-007-0531

Favorites

Key Features

Features:

SMA Connector, Female, Straight, Cable/Panel Mount, Solder, Bulkhead, Crimp With Solder, RG178/1.37mm/1.45mm，Cooper, Nickel Plating, Standard, 50Ω
Excellent electrical performance up to 18GHz with low reflection;
Thread type coupling mechanism ensure small loss and high security in compact design;
High Quality with 30 days 100% Money back;
From the OEM Original Factory, same quality with much better price.

Appliance:

Aerospace and Defense:xa0Hand-held field Device and Instrumentation
Technology: Instrumentation
Commercial Vehicle: Bluetooth and GPS
Telecommunications: Wireless Base Stations, Cellular Mobile System
Data/Communications:Wifi, WiMAX
Industrial: Active and passive components, instrumentation, M2M Communications, Vehicle Tracking System

Reviews

ELECBEE

All reviews come from verified purchasers

1 stars

2 stars

3 stars

20%

4 stars

5 stars

60%

A****z

Perfect for my RF design project. The solder joint holds well and the 50Ω impedance is stable up to 6GHz as specified. Great value for a brass-bodied SMA jack with gold plating.

j****n

Solid build quality and precise threading. I used it in a GPS module setup—fit perfectly on the PCB and handled vibration well. Only wish it supported RG316 more clearly in the specs.

W****l

Low VSWR and excellent insulation resistance. Used in a wireless base station prototype—performs just like the OEM version but at half the price. Highly recommend.

P****n

Good connector for the price, works fine with Wi-Fi modules. Soldering requires care due to small size. One unit had slight misalignment, but overall acceptable for bulk use.

K****r

Used in an industrial M2M tracking device. Withstands extreme temps from -55°C to +155°C as claimed. Teflon insulator makes a real difference in signal integrity.
