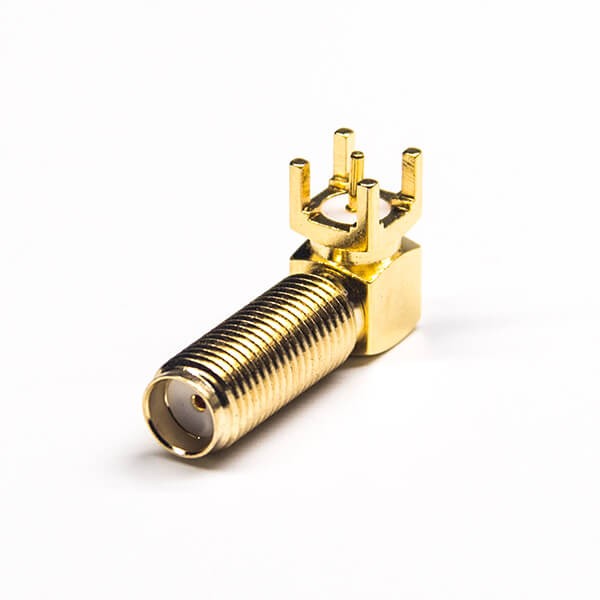

Elecbee RF Coaxial connector Standard SMA Jack Right Angle Solder Type for PCB mount

SKU: EB-007-0212

Favorites

Key Features

Features:

SMA Connector,Female/Jack,Through Hole,PCB Mount,Gold Plating
Excellent electrical performance up to 18GHz with low reflection;
Thread type coupling mechanism ensure small loss and high security in compact design;
High Quality with 30 days 100% Money back;
From the OEM Original Factory, same quality with much better price.

Appliance:

Aerospace and Defense:xa0Hand-held field Device and Instrumentation
Technology: Instrumentation
Commercial Vehicle: Bluetooth and GPS
Telecommunications: Wireless Base Stations, Cellular Mobile System
Data/Communications:Wifi, WiMAX
Industrial: Active and passive components, instrumentation, M2M Communications, Vehicle Tracking System

Reviews

ELECBEE

All reviews come from verified purchasers

1 stars

2 stars

3 stars

20%

4 stars

5 stars

60%

M****a

Perfect for my GPS module on a commercial vehicle project. The gold plating and PCB mount design made soldering easy and reliable. Works flawlessly up to 6GHz as specified.

E****o

Solid build quality with brass body and Teflon insulator. Right-angle SMA jack saved space on my board. VSWR is stable, though I expected slightly better shielding above 5GHz.

G****p

Exactly what the datasheet claims. Used in a defense handheld device—performs well under vibration and extreme temps. OEM factory quality at half the price of competitors.

S****s

Good connector overall, but be careful when hand-soldering—the TEFLON insulator can shift if overheated. Electrical performance is excellent once properly mounted.

G****v

Low reflection and consistent impedance up to 18GHz as advertised. Threaded coupling ensures secure fit. Highly recommend for WiMAX and instrumentation apps.
