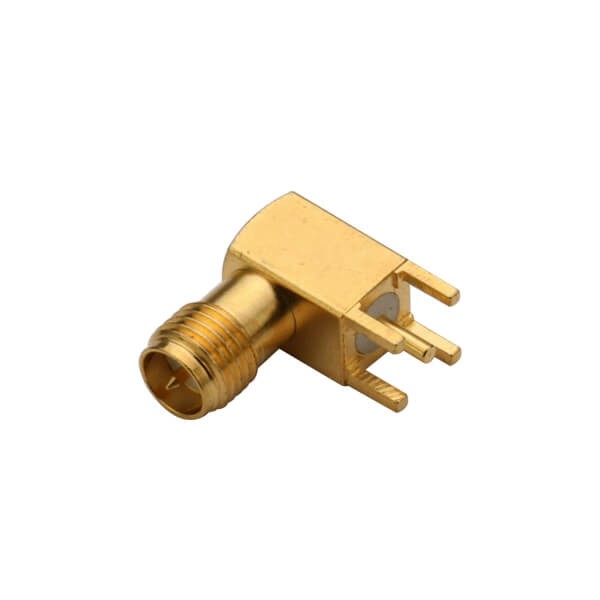

Elecbee 20pcs RF Coaxial connector Rreverse polarity SMA Jack Right Angle Solder Type for PCB mount

SKU: 20XEB-007-0121

Favorites

Key Features

Pcb Mount, jack/female, xa0Angled/90°, 50Ω, Through Hole;
Excellent electrical performance up to 18GHz with low reflection;
Thread type coupling mechanism ensure small loss and high security in compact design;
High Quality with 30 days 100% Money back;
From the OEM Original Factory, same quality with much better price.

Main Application of SMA Connectors:

Aerospace and Defense: Hand-held field Device and Instrumentation
Technology: Instrumentation
Commercial Vehicle: Bluetooth and GPS
Telecommunications: Wireless Base Stations, Cellular Mobile System
Data/Communications:Wifi, WiMAX
Industrial: Active and passive components, instrumentation, M2M Communications, Vehicle Tracking System

Reviews

ELECBEE

All reviews come from verified purchasers

1 stars

2 stars

3 stars

20%

4 stars

5 stars

60%

a****o

Perfect for my GPS module project. The 90° right-angle design saves so much space on the PCB, and the gold-plated brass ensures solid connectivity. Works flawlessly up to 18GHz!

N****e

Good quality SMA connectors. Soldering them takes a bit of care due to the small size, but electrical performance is excellent. Glad they’re from the original factory at this price.

P****i

Used these in a WiMAX prototype. Impedance stability and low VSWR made a noticeable difference. The TEFLON insulator and gold plating look professional.

R****d

Solid connectors for the price. One arrived slightly bent, probably shipping, but overall performance is as advertised. Good for compact RF designs.

R****o

Exactly what I needed for a vehicle tracking system build. Durable, right-angle PCB mount fits tight spaces. Meets MIL-STD specs I require.
