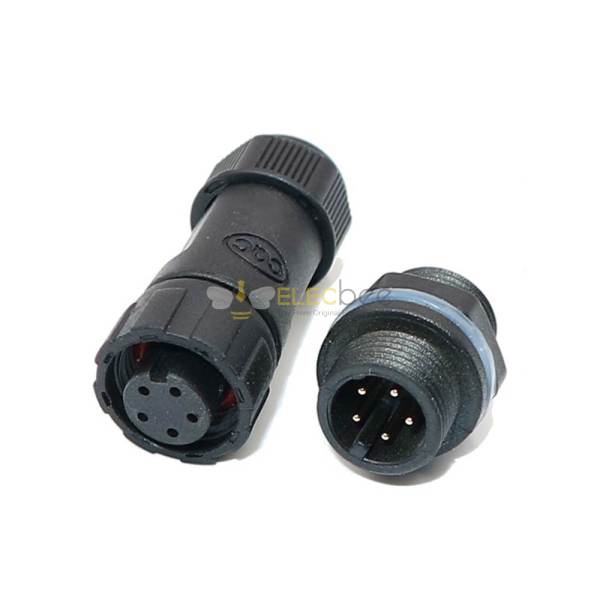

Elecbee M12 Waterproof Panel Front Mounted Connector Solder Type for Cable 5 pin Mechanical Equipment Nylon PA66 Material

SKU: EB-048-0018-H

Favorites

Key Features

Waterproof LED, waterproof plug cable, waterproof plug is widely used in outdoor LED (street lights, displays, architectural lighting, etc.), automobiles and ships, LED drive power, LED display, lighthouses, cruise ships, industrial equipment, communication equipment, detection equipment, etc.

Product Name: M12 Waterproof Panel Front Mounted Connector Solder Type for Cable 5 pin Mechanical Equipment Nylon PA66 Material

Rated Current and Voltage

2 Pin: 300V, 15A

3 Pin: 300V, 15A

4 Pin: 300V, 15A

5 Pin: 110V, 5A

6 Pin: 110V, 5A

7 Pin: 110V, 5A

8 Pin: 110V, 5A

Contact material: Copper-plated golden

Cable Wiring Method: Solder Type

Withstand voltage: 1500V

Protection grade: IP68

Terminal material: copper, gold plated

Contact resistance: < = 5m Ω

Connector material: Nylon / PVC

Test temperature: - 40 ℃ - + 105 ℃

Flame retardant grade: UL94V-0

Main features of the product:

1. Safe thread insertion and extraction system is more firm and reliable;

2. Waterproof connection, assembly and docking (IP68)

3. A wide range of models for customers to choose;

4. Multi-core type, 2-8 cores optional;

5. Welding, solid pin core

6. High-density installation saves space;

7. The key position selection of multiple plugs can avoid the mixed insertion between similar connectors;

Reviews

ELECBEE

All reviews come from verified purchasers

1 stars

2 stars

3 stars

20%

4 stars

5 stars

60%

M****n

Perfect for my outdoor LED lighting project. The IP68 rating really holds up in rain, and the nylon PA66 body feels tough. Soldering was easy with the gold-plated pins.

S****b

Solid build quality and great for tight spaces. I used it on a marine light setup—no issues so far. Only wish it came with a strain relief boot.

N****s

Exactly what I needed for industrial sensors. The keying prevents wrong connections, and it handles -40°C no problem in our cold storage facility.

D****i

Good connector, but soldering 5 pins takes time. Works well once assembled. Just needs more patience than plug-and-play types.

M****i

Used in a ship lighting retrofit—totally waterproof and vibration-resistant. The UL94V-0 rating gave us confidence for safety compliance.
