Elecbee Waterproof Fakra D-Coding Male Connector 90 Degree Right Angle Purple for PCB Board Vehicle
SKU: EB-014-0375
Favorites
Key Features
Features and Benefits
- Fakra Connector, Male Connector, PCB Mounting, Through Hole, 90° Right Angled, D-Coding
- 14 different mechanical and color key codes
- Robust plastic housing with locking feature and audible clicking noise
- Tape and reel packaging for automatic component placement
- Sealed units available
- Applications include Automotive, Global Positioning Satellite, Satellite Radio, Bluetooth, Remote Vehicle Diagnostic, Infotainment Systems, etc;
- Pre-assembled with different RF connectors for choice. Size and cable length can be customized;
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, the same quality with a much better price.
Show More
Description
FAKRA Connectors
- FAKRA connectors(Fachkreis Automobil, a German standard) are SMB-based automotive-grade connectors that can operate up to 6 GHz. These connectors are embedded within a plastic housing with a locking feature with an audible clicking noise that lets you know a connection has been made. They are available in 14 different mechanical layouts which are color coded for easy identification and mismatching prevention.
- FAKRA connectors meet the mechanical and environmental requirements of the automotive industry. The worldwide automotive industry has standardized connectors based on the FAKRA and USCAR standards.
- They can apply to a variety of connections in automotive vehicles, with applications including SDARS, cellular telephony, GPS navigation, keyless entry, and satellite radio.

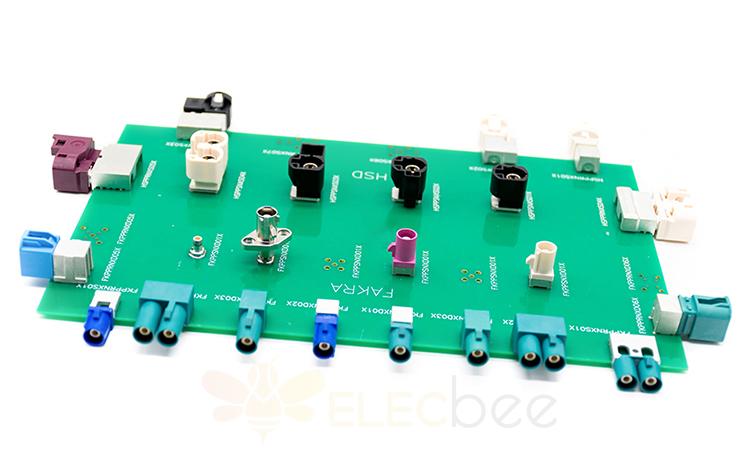

Applications
- Cameras
- Sensors for detection, evaluation, and reaction
- High-Performance Computing
- Radio antenna
- GPS telematics or navigation
- Infotainment & television
- Mobile communication
- RF Bluetooth / WLAN applications
- Radio frequency remote control for keyless entry
- Vehicle auxiliary heating
Fakra Close-up View
- 1. Mounting groove for cable connectors for chassis mounting
- 2. Secure the primary locking system between the plug and coupler with tactile and audible locking
- 3. Protection bars and protective strips prevent unintentional opening of the primary latching arm
- 4. Protection of the coaxial insert by shock and vibration-resistant coded housing
- 5. Secure secondary locking with high axial retention force of the coaxial insert in the plastic housing
- 6. Sophisticated mechanical and color-coding system with 14 different codes
Fakra Code
Interface Dimensions
