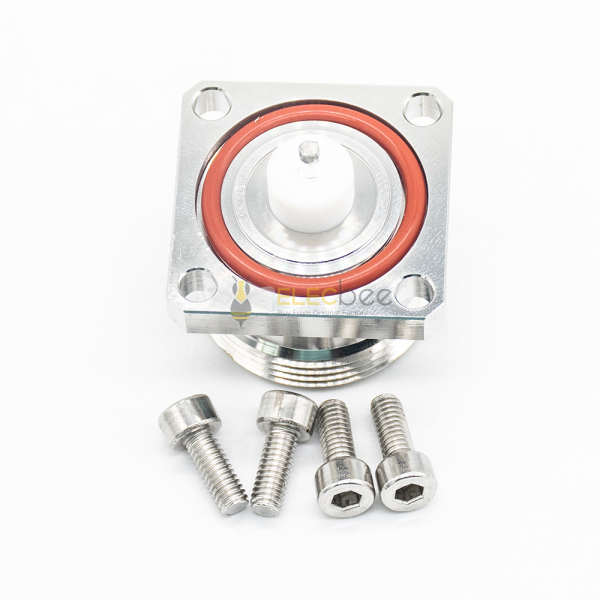

Elecbee Waterproof DIN Connector 7/16 4Hole Flange Female for Panel Mount
SKU: EB-012-0005
Favorites
Key Features
- Panel Mount, jack/female, Straight/180°, DIN7/16 Connector , 4Hole Flange;
- Designed to minimize signal distortion from inter modulation;
- Screw on coupling ensure high durability and allow toolless application;
- Excellent performance up to 5.2GHz frequency.
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
Main Application of DIN7/16 Connectors:
Consumer Electronic: Statellite Receivers, Statellite Radio
Aerospace and Defense: High-power communication devices
Commercial Vehicle: Bluetooth
Telecommunications: Antenna, Base Station
Industriasl: Antenna Mounts, Machine to Machine Communications
Show More
In-Stock
Qty.
1
Unit Price
$ 12.4
Ext. Price
$ 12.40
$ 12.40
Qty.
Unit Price
Ext. Price
10+
$11.78
$ 117.80
20+
$11.16
$ 223.20
100+
$9.92
$ 992.00
Specifications
Attribute
Value
Search
Connector Type
Jack
Number of Ports
1
Mounting Type
Panel Mount
Mounting Feature
Four Flange
Termination
Inner Screw
Contact Type
Female Pin
Shell Finish
Nickel Plated
Features
Flange
Impendance
50 Ohms
Frequency Max
6 GHz
Connector Series
DIN 7/16
Color
Silver
Fastening Type
Threaded
Orientation
Straight
Shell Material
Copper Alloy
Related Resources
Certificates
Shopping Guide
Shipping | Delivery Period | Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. Express: 3-7 days. Standard Post: 7-20 days. | |
| Shipping Rates | Shipping rates for your order can be found in the shopping cart. | ||
| Shipping Options | We offer express and standard delivery services. | ||
| Shipping Tracking | We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature. | ||
| Returning/Warranty | Returning | Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping | |
| Warranty | All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects. | ||
| This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation | |||
| Ordering | How to Buy | Elecbee accepts online orders. | |
| Add to cart > Check out > Submit order > Complete payment > Delivery | |||
| Payment | PayPal, Credit Card includes Visa, Master, American Express, Bank transfer. | ||
Recommended For You
Reviews(6)
5 /5
All reviews come from verified purchasers
5
67%
4
17%
3
17%
2
0%
1
0%
H****r
Adapter works great, no flaws during testing. Packaging was great, no way these can bang around during shipping. A few tooling blemishes on the exterior, but hardly worth mentioning when paying close to cost.
N****a
Perfect for my outdoor antenna setup. The 4-hole flange makes panel mounting super secure, and it's held up great in rain thanks to the waterproof design.
I****s
Solid build quality and the screw-on coupling is a nice touch—no tools needed, just hand-tighten. Performs well within its 5.2GHz range, no signal loss I can detect.
n****m
Used this in a high-vibration vehicle mount. The M29 x 1.5 thread stayed locked, and after 300+ mating cycles, still feels tight. Great durability as advertised.
v****h
Works fine for 5G telecom applications, but be careful during installation—the ceramic dielectric is sensitive if over-torqued. Would add a torque spec guide.
A****d
Impressed with the insulation resistance and VSWR performance. Signal integrity is clean, exactly what I needed for low-distortion M2M communication.
