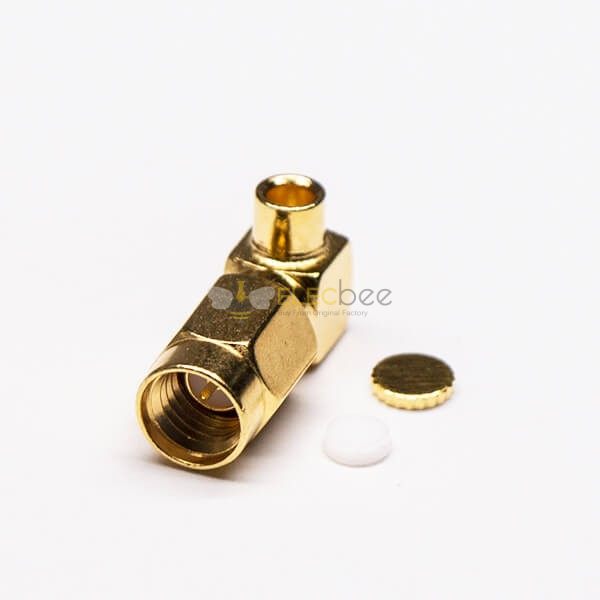

Elecbee SSMA Right Angle Plug RF Connector Solder Type for Cable
SKU: EB-018-0002
Favorites
Key Features
Features:
- SSMA Connector,Male/Plug,right angle/90°,Solded Type,Gold Plated;
- Space saving alternative to standard SMA;
- Straight jack and straight plug configurations available;
- 50 Ohm nominal impedance;
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
Main Application ofxa0SSMA Connectors:
- Mil-Aero
- Telecommunication
- RFID
- Antennas
- Test and measurement
- Radar systemsxa0
Show More
Datasheet
Specifications
Attribute
Value
Search
Connector Type
Male
Number of Ports
1
Mounting Type
Cable Type
Termination
Solder
Contact Type
Male Pin
Shell Finish
Gold Plated
Impendance
50 Ohms
Frequency Max
35 GHz
Connector Series
SSMA
Color
Gold
Fastening Type
Threaded
Orientation
Right Angled
Shell Material
Copper Alloy
