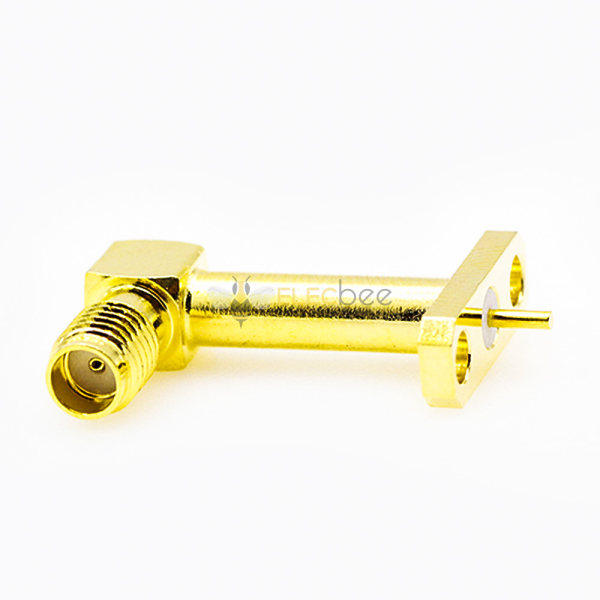

Elecbee SSMA Connector Female Right Angle Solder PCB Mount Welding plate with 2 Hole Flange
SKU: EB-211-0185
Favorites
Key Features
Features:
- SSMA Connector,Male/Plug,right angle/90°,Solded Type,Gold Plated;
- Space saving alternative to standard SMA;
- Straight jack and straight plug configurations available;
- 50 Ohm nominal impedance;
- From the OEM Original Factory, same quality with much better price.
Appliance:
- Mil-Aero
- Telecommunication
- RFID
- Antennas
- Test and measurement
- Radar systems
Show More
Datasheet
Specifications
Attribute
Value
Search
Connector Type
Jack
Number of Ports
1
Mounting Type
Panel Mount
Mounting Feature
Two Flange
Termination
Busbar
Contact Type
Female Pin
Shell Finish
Gold Plated
Features
Flange
Impendance
50 Ohms
Frequency Max
35 GHz
Connector Series
SSMA
Color
Gold
Fastening Type
Threaded
Orientation
Right Angled
Shell Material
Copper Alloy
