Elecbee SD30CRMA 1A MPPT Solar Controller for 9V Solar Panels, 3.2V 3.7V 3.8V Lithium-Ion LiFePO4 LTO Battery Charger Module
SKU: EB0044138
Favorites
Key Features
- 9V MPPT Solar Charging: Designed for the 9V MPPT version with a DC 9–28V input range.
- Adjustable Output: Provides a DC 1.2–8V adjustable output with typical settings of 3.6V, 4.2V, 4.3V, 4.35V, and 7.2V.
- 1A Maximum Output: Supports a maximum charge or output current of 1A.
- Multiple Battery Chemistries: Suitable for lithium-ion, LiFePO4, and lithium titanate batteries.
- Charge Management: Features a CR charging indicator, automatic recharge, deep-discharge conditioning, and battery overvoltage protection.
- Compact Design: Measures only 45 × 20 × 15 mm for embedded and portable charging applications.
Show More
Description
SD30CRMA 1A MPPT Solar Battery Charger Module
A compact MPPT solar charging and step-down power module designed for a 9V solar panel configuration. It supports lithium-ion, LiFePO4, and lithium titanate batteries.

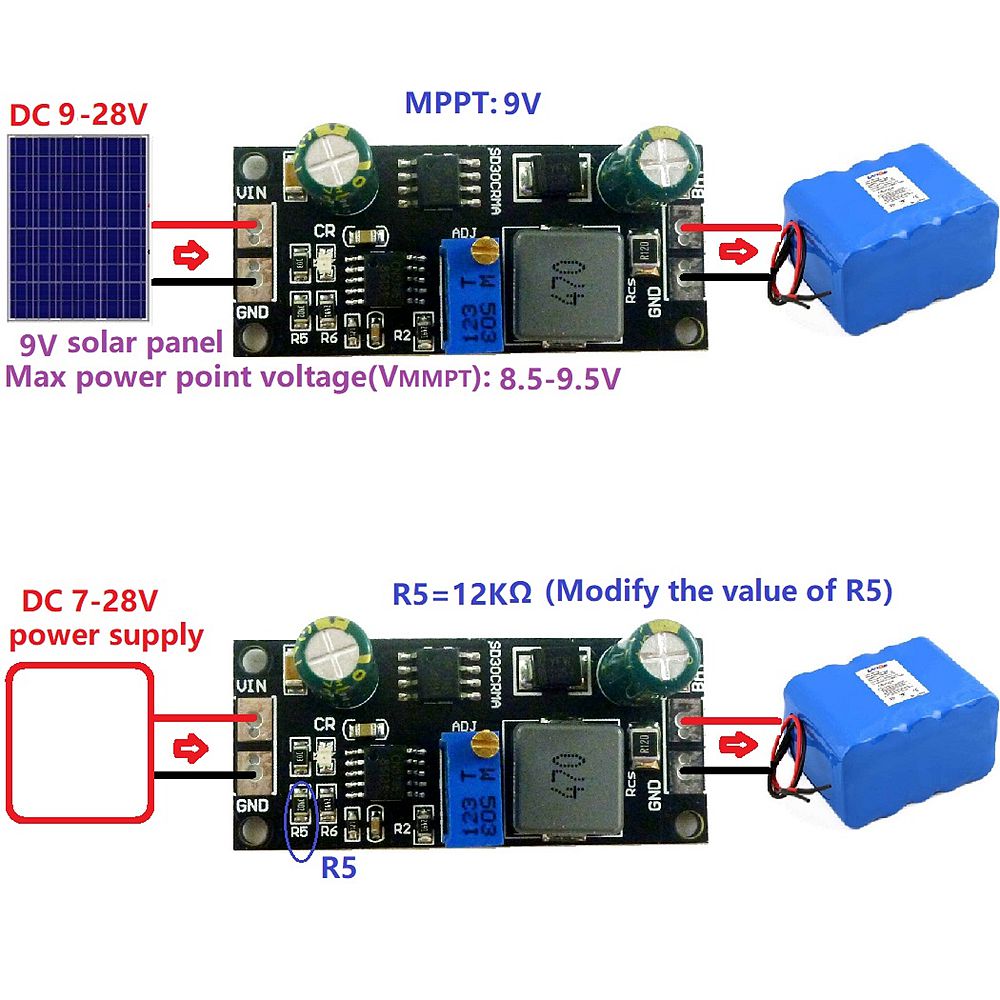

9V MPPT Version DC 9–28V Input DC 1.2–8V Output 1A Maximum Current

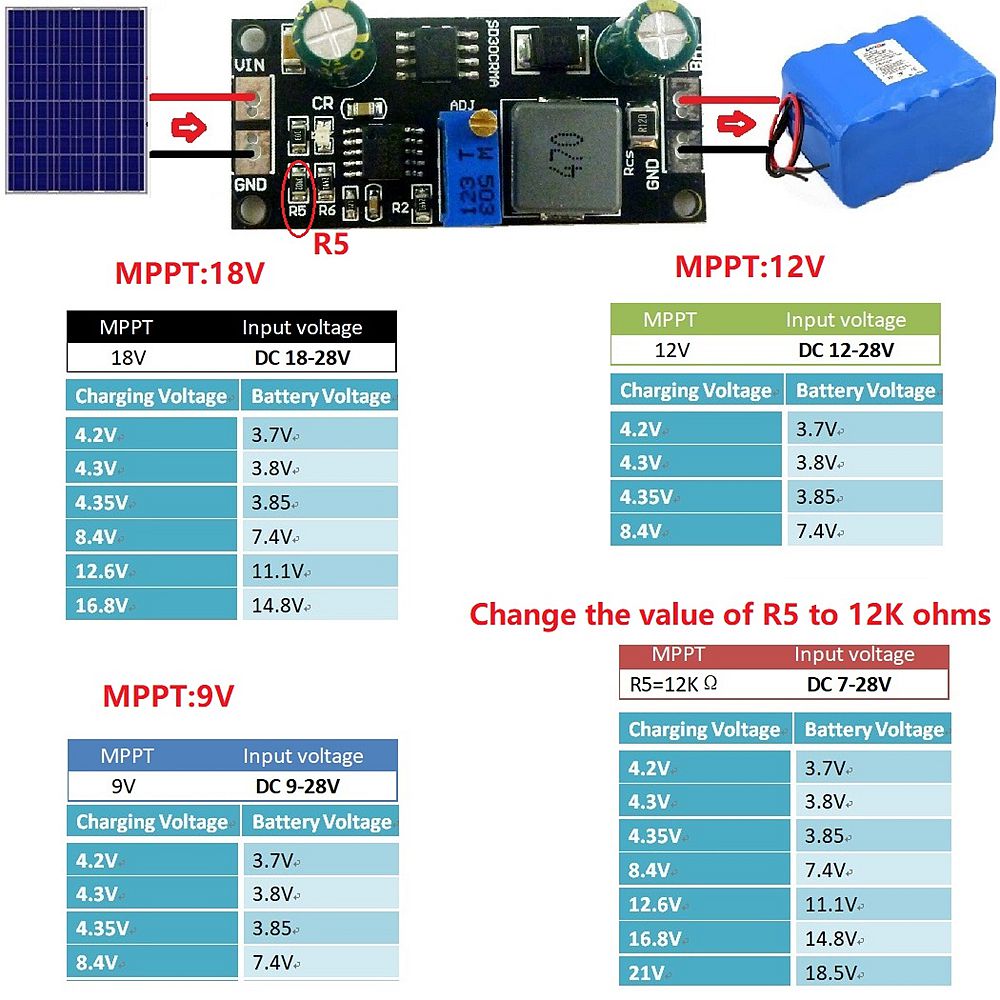

9V Version Electrical Parameters
MPPT Version: 9V
Input Voltage: DC 9–28V
Adjustable Output: DC 1.2–8V
Typical Charging Settings: 3.6V, 4.2V, 4.3V, 4.35V, and 7.2V
Technical Specifications
| Model | SD30CRMA |
| MPPT Version | 9V |
| Input Voltage | DC 9–28V |
| Adjustable Output | DC 1.2–8V |
| Maximum Output Current | 1A |
| Supported Batteries | Lithium-Ion, LiFePO4, and Lithium Titanate |
| Status Indicator | CR Charging Status LED |
| Operating Temperature | -20°C to +85°C |
| Operating Humidity | 5%–95% RH |
| PCB Size | 45 × 20 × 15 mm |
Typical Applications
- 9V solar panel battery charging systems
- Portable and handheld electronic equipment
- Compact battery backup and UPS systems
- Standalone lithium battery chargers
- Embedded industrial and portable medical equipment
Package Includes
1 × SD30CRMA 1A 9V MPPT Solar Battery Charger Module
