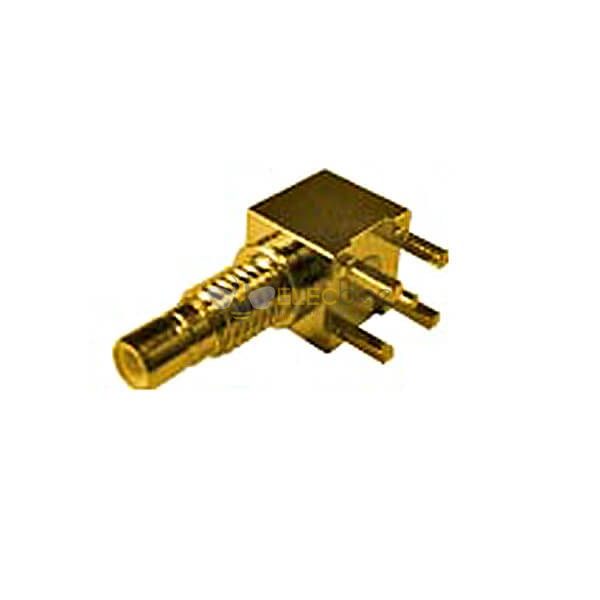

Elecbee SMB Jack Connector Angled Bulkhead for PCB Mount

SKU: EB-008-0006

Favorites

Key Features

Pcb Mount, Jack/female, Angled/90°, 50Ω, Through Hole, Bulkhead;
Snap-on coupling design for fast installation;
With boardband performance and low reflection;
To reduce your Cost by using die casting process in non-critical areas.
High Quality with 30 days 100% Money back;
From the OEM Original Factory, same quality with much better price.

Main Application of SMBxa0Connectors:

Aerospace and Defense: Test Stands
Technology: Telemetry
Commercial Vehicle: GPS
Telecommunications: Wireless Base Stations, Cellular Mobile System
Data/Communications: Routers, WIFI, Radio Boards
Industrial: M2M Communications, Process Controls, Video Systems, Instrumentation

Reviews

ELECBEE

All reviews come from verified purchasers

1 stars

2 stars

3 stars

14%

4 stars

5 stars

71%

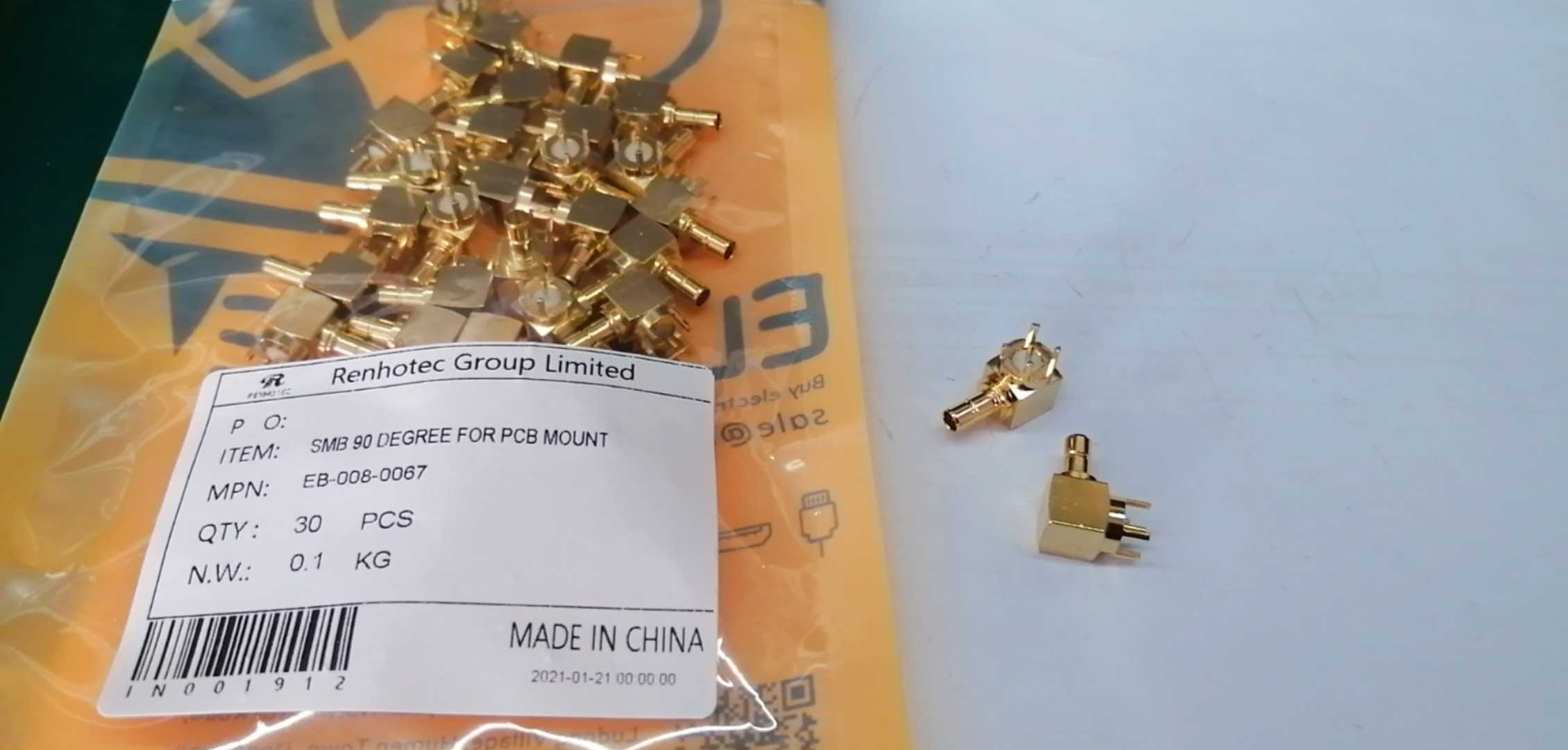

A****a

Works great.

M****d

Simple and well made. This plugged into the car's antenna and then plugged into the SiruisXm radio without any issues.

F****t

Perfect for my PCB design. The 90° angled bulkhead mount saves space and the gold-plated contact ensures solid signal integrity up to 4 GHz.

r****a

Good quality SMB jack with reliable snap-on coupling. Easy to install on the board, and the nickel finish resists corrosion well in industrial setups.

R****h

Exactly what I needed for a telemetry module. Performs flawlessly in high-frequency applications, and the dielectric strength matches specs.

A****d

Works as expected, but took a bit of force to snap into place. Still holding after 200+ cycles, so durability seems okay.

M****I

Love the cost-saving design without sacrificing performance. Great for RF routing in routers and GPS systems. Will buy again.
