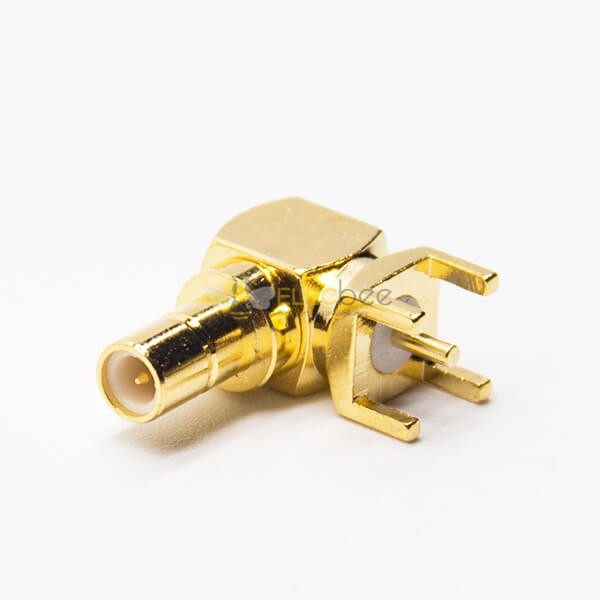

Elecbee SMB Connector PCB Mount Female Angled Through Hole

SKU: EB-008-0004

Favorites

Key Features

Pcb Mount, Jack/female, Angled/90°, 50Ω, Through Hole;
Snap-on coupling design for fast installation;
With boardband performance and low reflection;
To reduce your Cost by using die casting process in non-critical areas.
High Quality with 30 days 100% Money back;
From the OEM Original Factory, same quality with much better price.

Main Application of SMBxa0Connectors:

Aerospace and Defense: Test Stands
Technology: Telemetry
Commercial Vehicle: GPS
Telecommunications: Wireless Base Stations, Cellular Mobile System
Data/Communications: Routers, WIFI, Radio Boards
Industrial: M2M Communications, Process Controls, Video Systems, Instrumentation

Reviews

ELECBEE

All reviews come from verified purchasers

1 stars

2 stars

3 stars

14%

4 stars

5 stars

71%

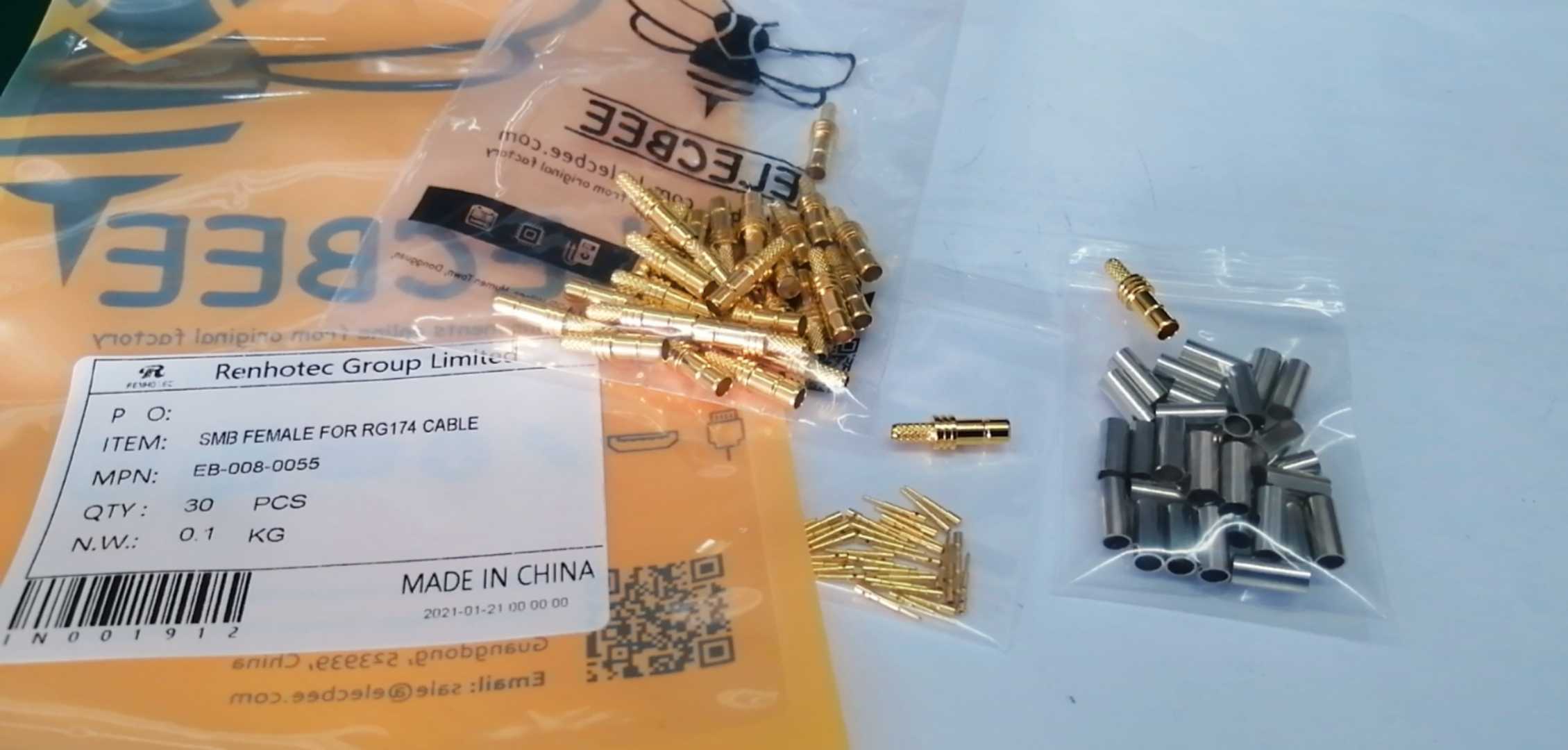

A****a

Solid construction.

A****.

Works as designed. Made use of satellite cabling already wired into bedrooms to facilitate Sirius reception.

M****s

Perfect for my RF design project. The 90° angled PCB mount saves space, and the gold-plated contacts ensure solid signal integrity up to 4 GHz.

y****?

Good quality SMB connector. Snap-on coupling makes assembly fast, though I wish the through-hole leads were a bit longer for thicker boards.

M****k

Exactly as described. Low VSWR and excellent impedance match. Used in a telemetry module and it’s performing flawlessly under vibration testing.

D****e

Works well for 50Ω systems, but be careful with soldering—Teflon insulator can deform if overheated. Overall okay for the price.

T****a

Love that they use die-casting to cut cost without sacrificing performance. These connectors are reliable in industrial control boards I’m building.
