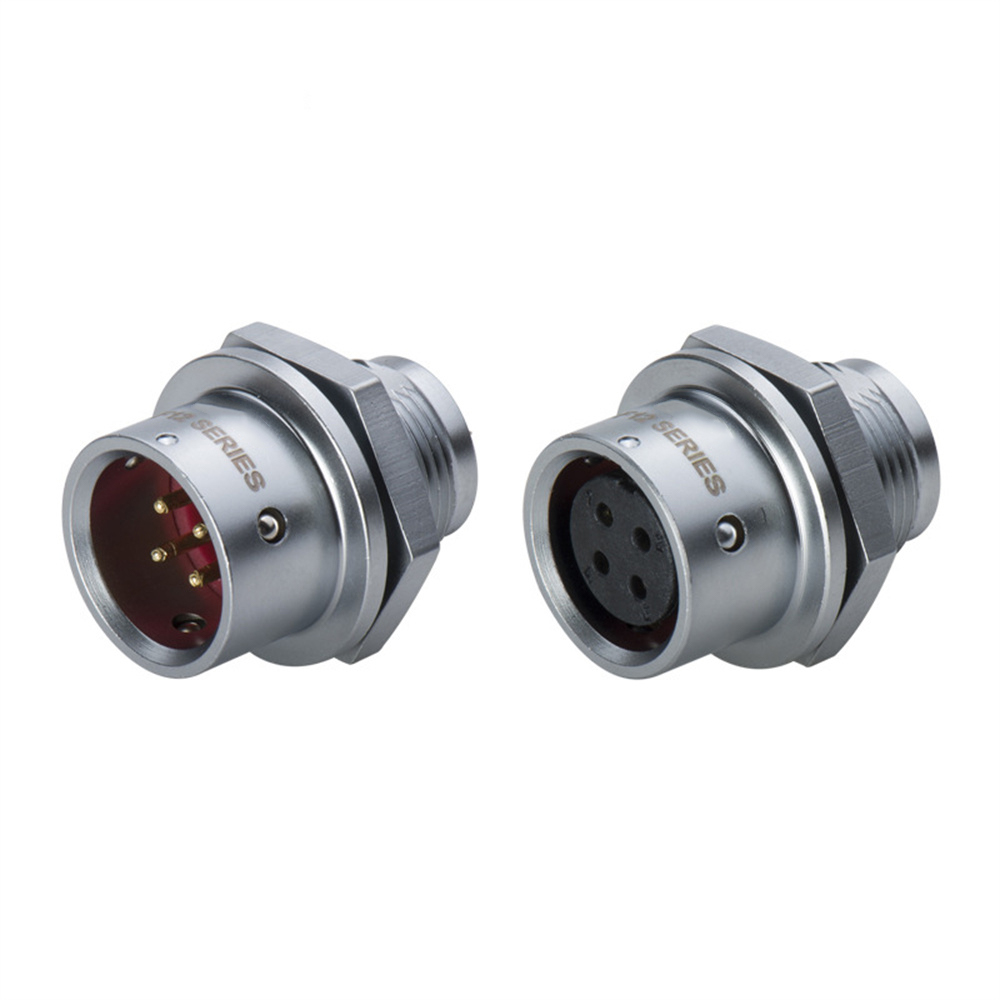

Elecbee SF1212/S5U Waterproof Female Socket Rear-nut Mount Solder
SKU: EB-SF1212-S5U
Favorites
Key Features
- Waterproof design for reliable performance in harsh environments.
- Suitable for aviation, navigation, and communication applications.
- Easy rear-nut mount and solder terminal for secure installation.
Show More
Specifications
Attribute
Value
Search
Connector Type
Receptacle
Mounting Type
Panel Mount
Termination
Solder
Contact Type
Female Pin
Shell Finish
Chrome Plated
Number of Positions
5 Pin
Operating Temperature
-40℃~+85℃
Ingress Protection
IP67
Rated Current
5A
Rated Voltage
180VAC
Connector Series
SF12
Color
Silver
Fastening Type
Push-on
Orientation
Straight
Shell Material
Brass
Contact Material
Brass
Contact Finish
Gold Plated
Insulating Materials
PPS
Cable Diameter
18AWG
Shell Size
12
Insulation Color
Black
Key
A Code
