Elecbee SP29 Series Waterproof Aviation connector 10 pin Straight Solder Type Male Plug and Female Rear-nut mount Socket one pair
SKU: EB-410-3005
Favorites
Key Features
Features:
- SP29 Series Connector,Straight,Standard Type,Rear-nut Mount Socket and Plug,Solder Contact,10 Pin
- With its IP68 rating, each product is excellent within harsh environments
- Easy quick connect and disconnect coupling
- High cost-effective with good quality
Show More

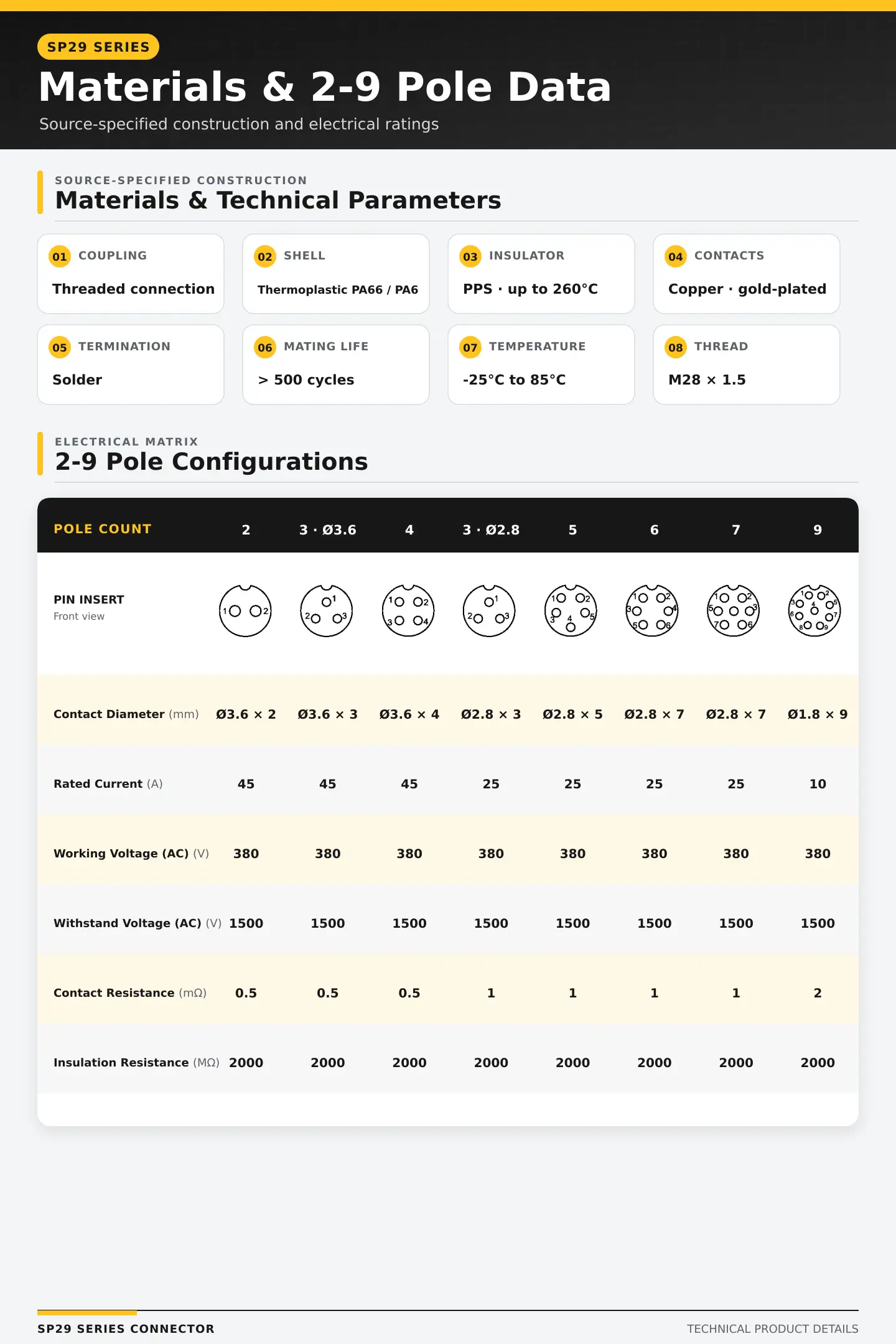

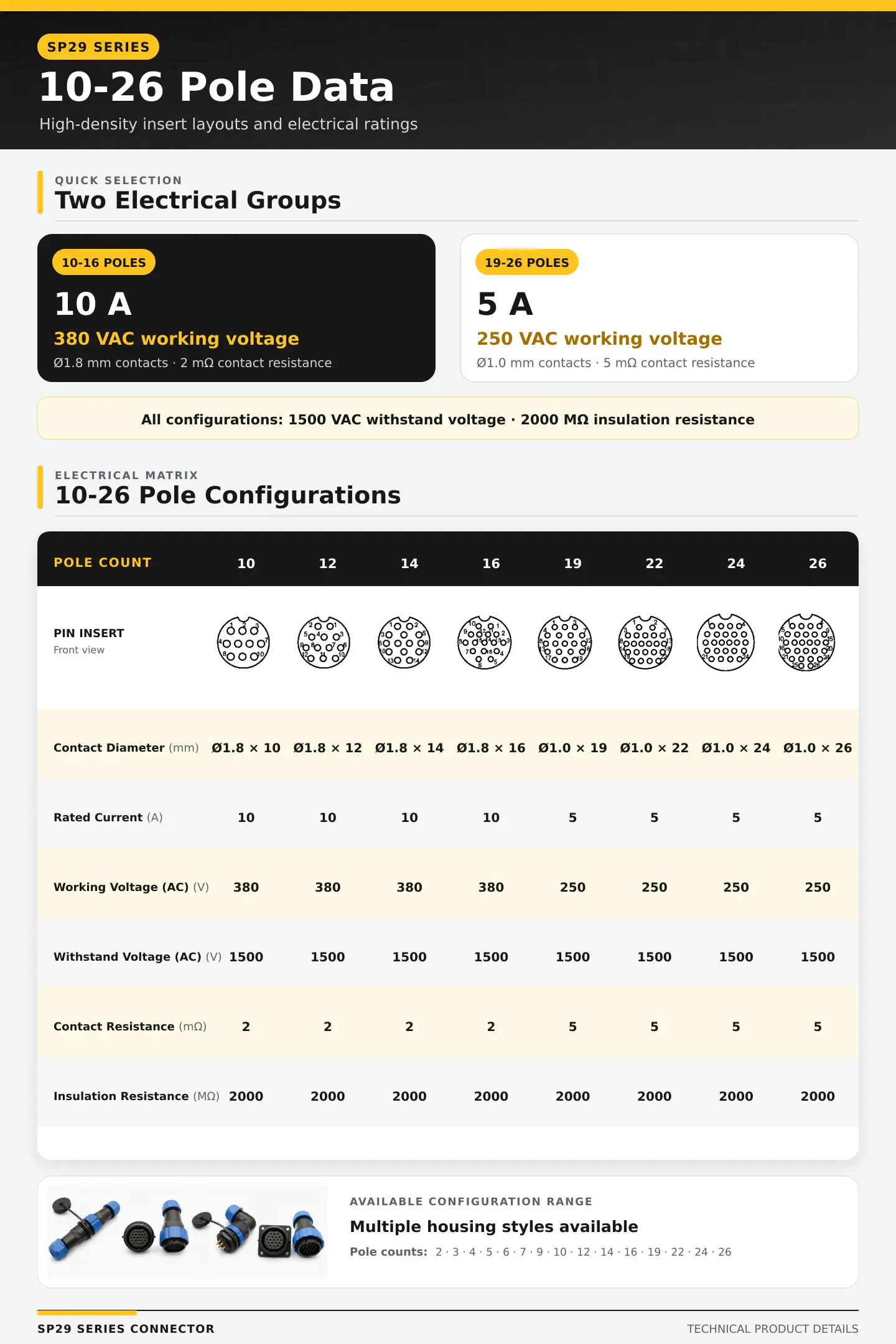

Specifications
Number of Positions:
19 Pin2 Pin3 Pin4 Pin5 Pin6 Pin7 Pin10 Pin12 Pin14 Pin16 Pin24 Pin26 Pin9 Pin22 PinSpecifications
Attribute
Value
Search
Connector Type
Plug, Receptacle

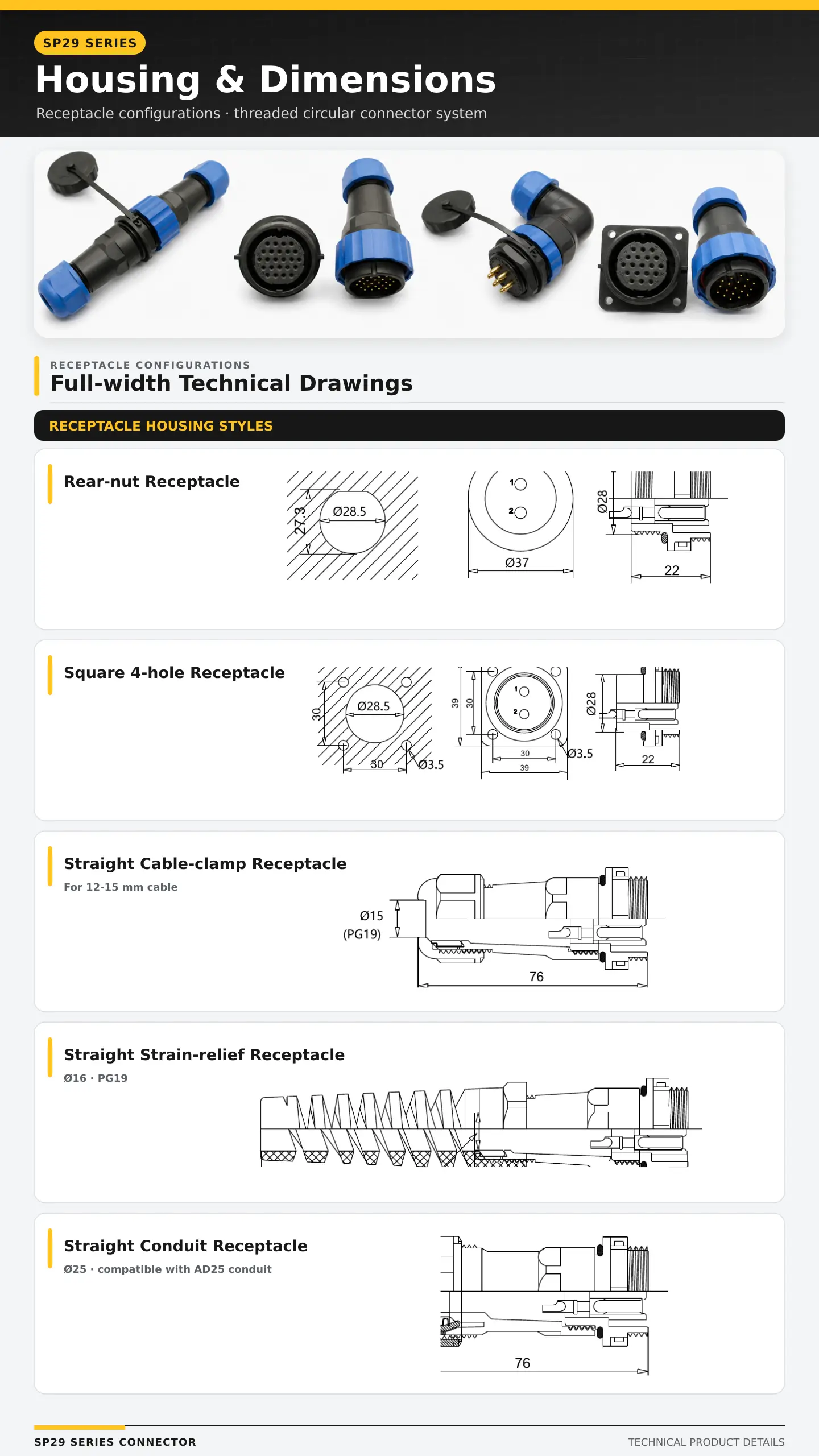

Mounting Type
Panel Mount
Mounting Feature
Bulkhead - Rear Side Nut
Termination
Solder
Contact Type
Male，Female Pin
Number of Positions
10 Pin
Material Flammability Rating
UL94 V-0
Operating Temperature
-40℃~+85℃
Ingress Protection
IP68
Rated Current
10A
Rated Voltage
380V
Features
Waterproof
Connector Series
SP29
Color
Black, Blue
Fastening Type
Threaded
Orientation
Straight
Shell Material
PA66, PC
Contact Material
Brass
Contact Finish
Gold Plated
Insulating Materials
PPS
Cable Diameter
14AWG
Shell Size
28
Insulation Color
Black
Description
