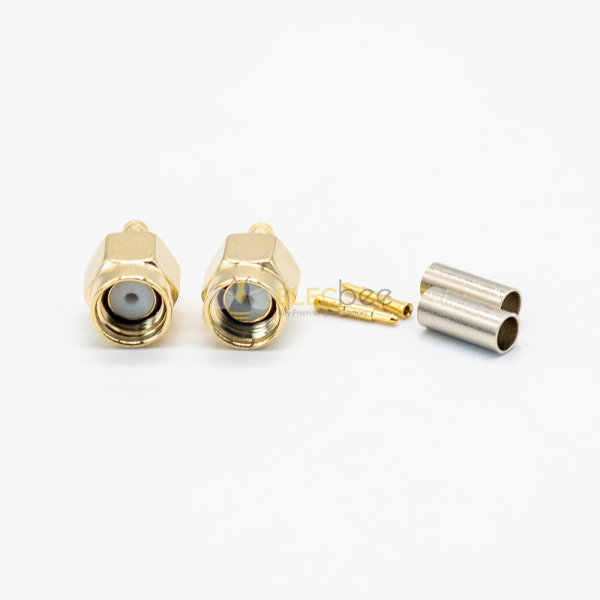

Elecbee RF Coaxial connector Standard SMA Plug Straight Crimp for Cable RG174/RG316/LMR100
SKU: EB-007-0769
Favorites
Key Features
SMA Male Plug 50 Ohms RF coaxial connector for DC to 6 GHz signal connections.
Fit and installation Straight free hanging cable mount design uses crimp termination.
Materials and mating Brass body with gold plated brass contacts and threaded mating for a secure connection.
RF applications For LMR100, RG174, RG316 cable assemblies used in RF test equipment, antenna feeds and radio communication systems.
Fit and installation Straight free hanging cable mount design uses crimp termination.
Materials and mating Brass body with gold plated brass contacts and threaded mating for a secure connection.
RF applications For LMR100, RG174, RG316 cable assemblies used in RF test equipment, antenna feeds and radio communication systems.
Show More
In-Stock
Qty.
1
Unit Price
$ 1.17
Ext. Price
$ 1.17
$ 1.17
Specifications
Attribute
Value
Search
Connector Type
Plug
Number of Ports
1
Mounting Type
Free Hanging
Termination
Crimp
Contact Type
Male Pin
Shell Finish
Gold Plated
Impendance
50 Ohms
Suitable Cable
LMR100, RG174, 316
Connector Series
SMA
Color
Gold
Fastening Type
Threaded
Orientation
Straight
Shell Material
Brass
Contact Material
Brass
Contact Finish
Gold Plated
Frequency Range
DC~6GHz
Related Resources
Shopping Guide
Shipping | Delivery Period | Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. Express: 3-7 days. Standard Post: 7-20 days. | |
| Shipping Rates | Shipping rates for your order can be found in the shopping cart. | ||
| Shipping Options | We offer express and standard delivery services. | ||
| Shipping Tracking | We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature. | ||
| Returning/Warranty | Returning | Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping | |
| Warranty | All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects. | ||
| This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation | |||
| Ordering | How to Buy | Elecbee accepts online orders. | |
| Add to cart > Check out > Submit order > Complete payment > Delivery | |||
| Payment | PayPal, Credit Card includes Visa, Master, American Express, Bank transfer. | ||
Recommended For You
Reviews(5)
4.4
5★
60%(3)4★
20%(1)3★
20%(1)2★
0%(0)1★
0%(0)All reviews come from verified purchasers
G
Used in a defense comms device. Withstands vibration and temp swings. Threaded coupling locks securely. Impressed by the 155°C rating and durability.
S
Solid connectors, but crimping requires precision. Took a few tries to get a reliable connection on RG316. Performance is excellent once properly installed.
K
Exactly as described. Works great with LMR100 in a compact instrumentation setup. Low VSWR and stable up to high frequencies. Great value from OEM source.
D
Good quality SMA plugs. Crimping was clean with proper tools. Gold-plated contacts look durable. Slight variance in body size, but works flawlessly in Wi-Fi modules.
S
Perfect fit for my RG174 cables. The gold plating ensures solid conductivity, and the crimp design holds tight. Used in a GPS tracker build—no signal loss up to 6 GHz.
