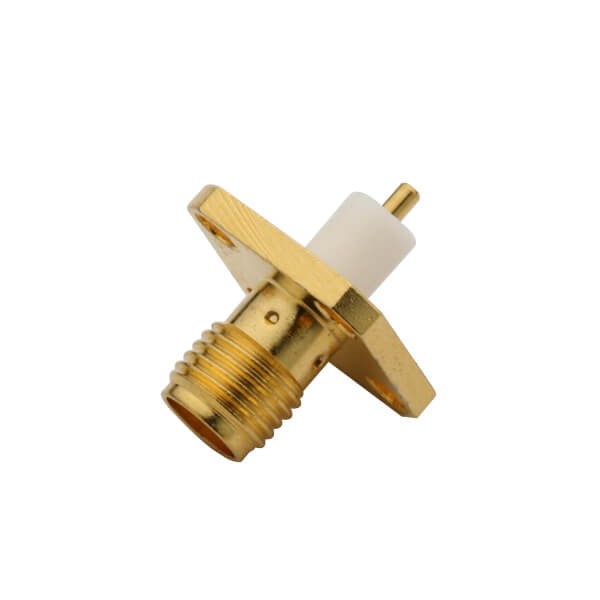

Elecbee RF Coaxial connector Standard SMA Jack Straight Solder Type for PCB mount

SKU: EB-007-0073

Favorites

Key Features

Panel Mount, Jack/female, straight/180°, 50Ω, 4Hole Flange;
Excellent electrical performance up to 18GHz with low reflection;
Thread type coupling mechanism ensure small loss and high security in compact design;
High Quality with 30 days 100% Money back;
From the OEM Original Factory, same quality with much better price.

Main Application of SMA Connectors:

Aerospace and Defense: Hand-held field Device and Instrumentation
Technology: Instrumentation
Commercial Vehicle: Bluetooth and GPS
Telecommunications: Wireless Base Stations, Cellular Mobile System
Data/Communications:Wifi, WiMAX
Industrial: Active and passive components, instrumentation, M2M Communications, Vehicle Tracking System

Reviews

ELECBEE

All reviews come from verified purchasers

1 stars

2 stars

3 stars

17%

4 stars

5 stars

67%

M****d

Exactly what I needed to complete my J-pole antenna. The connector accepted solder with ease and the insulator didn't melt with a 100 watt iron.

A****n

Perfect for my RF PCB project. The gold-plated brass body and beryllium copper contact ensure solid signal up to 18GHz. Exactly as described and priced better than competitors.

M****i

Good quality SMA jack with stable 50Ω impedance. Soldering was smooth and the 4-hole flange makes panel mounting very secure. Minor improvement in packaging would help.

y****g

Used in a GPS tracking prototype—impressed by the low VSWR and durability. Performs flawlessly under vibration, just like the MIL-STD specs suggest.

Y****i

Solid connector for the price. Works well in Wi-Fi modules, but be careful during soldering—PTFE insulator can deform if overheated.

D****a

Reliable performance in base station test gear. The thread coupling ensures tight connection, and the gold plating resists corrosion even in humid conditions.
