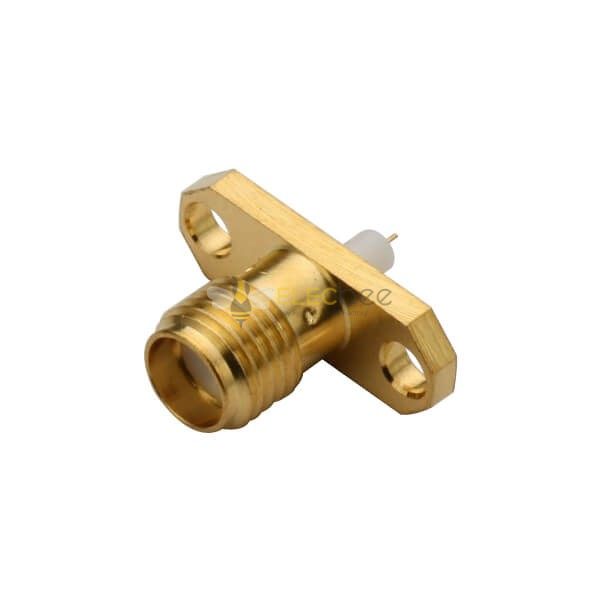

Elecbee RF Coaxial connector Standard SMA Jack Straight Solder Type for PCB mount

SKU: EB-007-0057
Favorites
Key Features
  • Panel Mount, jack/female, straight/180°, 50Ω, 2Hole Flange;
  • Excellent electrical performance up to 18GHz with low reflection;
  • Thread type coupling mechanism ensure small loss and high security in compact design;
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.

Main Application of SMA Connectors:

  • Aerospace and Defense: Hand-held field Device and Instrumentation
  • Technology: Instrumentation
  • Commercial Vehicle: Bluetooth and GPS
  • Telecommunications: Wireless Base Stations, Cellular Mobile System
  • Data/Communications:Wifi, WiMAX
  • Industrial: Active and passive components, instrumentation, M2M Communications, Vehicle Tracking System


Show More
Datasheet
Attribute
Value
Connector Type
Jack
Number of Ports
1
Mounting Type
Panel Mount
Mounting Feature
Two Flange
Termination
Solder
Contact Type
Female Pin
Shell Finish
Gold Plated
Impendance
50/75 Ohms
Frequency Max
26.5 GHz
Connector Series
SMA
Color
Yellow
Fastening Type
Threaded
Orientation
Right Angled
Shell Material
Copper
Packing
Individual Packaging
Contact Material
Phosphor Bronze
Contact Finish
Gold Plated
Insulating Materials
PTFE
