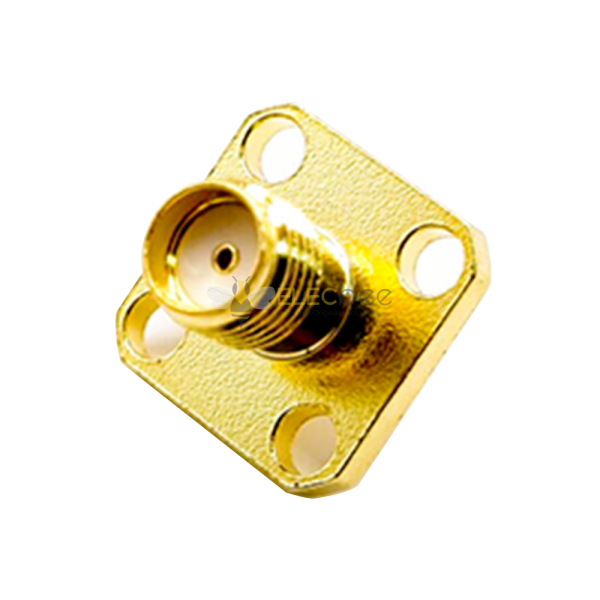

Elecbee RF Coaxial connector Standard SMA Jack Straight Solder Type for PCB mount

SKU: EB-007-0360
Favorites
Key Features

Features:

  • SMA Connector, Female, Straight, Cable/Panel Mount, Solder, 4 Hole Flange, Solder Cup, Cooper, Gold Plating, Standard, 50Ω
  • Excellent electrical performance up to 18GHz with low reflection;
  • Thread type coupling mechanism ensure small loss and high security in compact design;
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.

Appliance:

  • Aerospace and Defense: Hand-held field Device and Instrumentation
  • Technology: Instrumentation
  • Commercial Vehicle: Bluetooth and GPS
  • Telecommunications: Wireless Base Stations, Cellular Mobile System
  • Data/Communications:Wifi, WiMAX
  • Industrial: Active and passive components, instrumentation, M2M Communications, Vehicle Tracking System
Show More
Attribute
Value
Connector Type
Jack
Number of Ports
1
Mounting Type
Panel Mount
Mounting Feature
Four Flange
Contact Type
Female Pin
Shell Finish
Gold Plated
Impendance
50 Ohms
Frequency Max
6 GHz
Connector Series
SMA
Color
Gold
Fastening Type
Threaded
Orientation
Straight
Shell Material
Brass
Shield Termination
Solder
