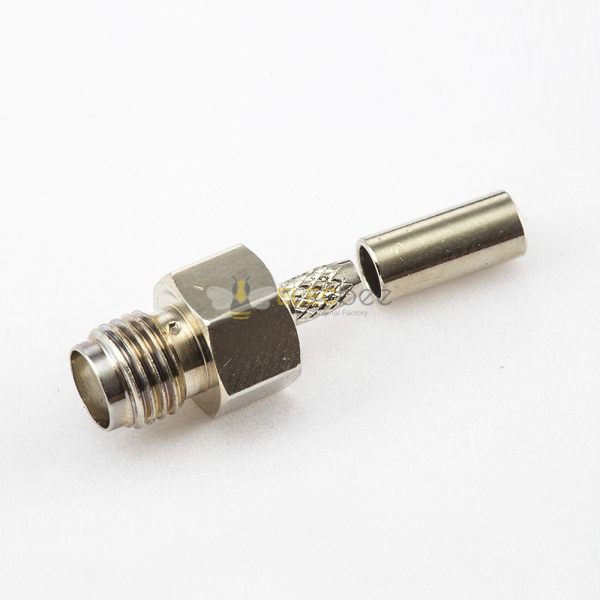

Elecbee RF Coaxial connector Standard SMA Jack Straight Crimp for Cable RG174/RG316/LMR100
SKU: EB-007-0690
Favorites
Key Features
SMA Female Jack 50 Ohms RF coaxial connector for DC to 6 GHz signal connections.
Fit and installation Straight free hanging cable mount design uses crimp termination.
Materials and mating Copper body with gold plated brass contacts and threaded mating for a secure connection.
RF applications For LMR100, RG174, RG316 cable assemblies used in RF test equipment, antenna feeds and radio communication systems.
Fit and installation Straight free hanging cable mount design uses crimp termination.
Materials and mating Copper body with gold plated brass contacts and threaded mating for a secure connection.
RF applications For LMR100, RG174, RG316 cable assemblies used in RF test equipment, antenna feeds and radio communication systems.
Show More
In-Stock
Qty.
1
Unit Price
$ 1.17
Ext. Price
$ 1.17
$ 1.17
Specifications
Attribute
Value
Search
Connector Type
Jack
Number of Ports
1
Mounting Type
Free Hanging
Termination
Crimp
Contact Type
Female Pin
Shell Finish
Nickel Plated
Impendance
50 Ohms
Suitable Cable
LMR100, RG174, 316
Connector Series
SMA
Color
Silver
Fastening Type
Threaded
Orientation
Straight
Shell Material
Copper
Contact Material
Brass
Contact Finish
Gold Plated
Frequency Range
DC~6GHz
Related Resources
Shopping Guide
Shipping | Delivery Period | Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. Express: 3-7 days. Standard Post: 7-20 days. | |
| Shipping Rates | Shipping rates for your order can be found in the shopping cart. | ||
| Shipping Options | We offer express and standard delivery services. | ||
| Shipping Tracking | We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature. | ||
| Returning/Warranty | Returning | Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping | |
| Warranty | All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects. | ||
| This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation | |||
| Ordering | How to Buy | Elecbee accepts online orders. | |
| Add to cart > Check out > Submit order > Complete payment > Delivery | |||
| Payment | PayPal, Credit Card includes Visa, Master, American Express, Bank transfer. | ||
Recommended For You
Reviews(5)
4.4
5★
60%(3)4★
20%(1)3★
20%(1)2★
0%(0)1★
0%(0)All reviews come from verified purchasers
A
Exactly as described—straight SMA female, 50Ω, crimps perfectly on LMR100. Factory fresh and priced way better than other OEMs. Will definitely reorder.
N
Solid connector, but needed to double-check insulation resistance on a few units. Works well once verified. Crimping RG316 was smooth with proper tools.
A
Used in a defense comms device—performs reliably under vibration and extreme temps. Meets MIL-STD specs as claimed. Excellent electrical stability up to 18GHz.
M
Good SMA jack for compact RF setups. I appreciate the brass body and Teflon insulator—handles high temps well. Slight variance in crimp depth took extra care during assembly.
G
Perfect fit for my GPS tracking project. The crimp design works flawlessly with RG174, and the gold-plated contacts ensure solid signal up to 6GHz. Great value for the quality.
