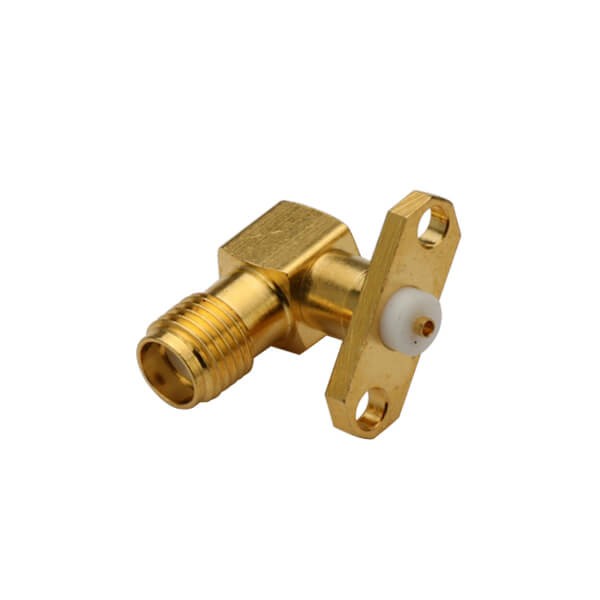

Elecbee RF Coaxial connector Standard SMA Jack Right Angle Solder Type for PCB mount
SKU: EB-007-0094
Favorites
Key Features
- Panel Mount, jack/female, Angled/90°, 50Ω, 2Hole Flange, Extended PTFE;
- Excellent electrical performance up to 18GHz with low reflection;
- Thread type coupling mechanism ensure small loss and high security in compact design;
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
Main Application of SMA Connectors:
- Aerospace and Defense: Hand-held field Device and Instrumentation
- Technology: Instrumentation
- Commercial Vehicle: Bluetooth and GPS
- Telecommunications: Wireless Base Stations, Cellular Mobile System
- Data/Communications:Wifi, WiMAX
- Industrial: Active and passive components, instrumentation, M2M Communications, Vehicle Tracking System
Show More
In-Stock
Qty.
1
Unit Price
$ 6.95
Ext. Price
$ 6.95
$ 6.95
Specifications
Attribute
Value
Search
Connector Type
Jack
Number of Ports
1
Mounting Type
Panel Mount
Mounting Feature
Two Flange
Termination
Solder
Contact Type
Female Pin
Shell Finish
Gold Plated
Impendance
50/75 Ohms
Frequency Max
26.5 GHz
Connector Series
SMA
Color
Yellow
Fastening Type
Threaded
Orientation
Right Angled
Shell Material
Copper
Packing
Individual Packaging
Contact Material
Phosphor Bronze
Contact Finish
Gold Plated
Insulating Materials
PTFE
Related Resources
Shopping Guide
Shipping | Delivery Period | Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. Express: 3-7 days. Standard Post: 7-20 days. | |
| Shipping Rates | Shipping rates for your order can be found in the shopping cart. | ||
| Shipping Options | We offer express and standard delivery services. | ||
| Shipping Tracking | We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature. | ||
| Returning/Warranty | Returning | Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping | |
| Warranty | All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects. | ||
| This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation | |||
| Ordering | How to Buy | Elecbee accepts online orders. | |
| Add to cart > Check out > Submit order > Complete payment > Delivery | |||
| Payment | PayPal, Credit Card includes Visa, Master, American Express, Bank transfer. | ||
Recommended For You
Reviews(6)
4.5
5★
67%(4)4★
17%(1)3★
17%(1)2★
0%(0)1★
0%(0)All reviews come from verified purchasers
A
I used 2 for SDR/IF out ports on Yaesu HF radios and a few others for test equipment i built! Good quality and seem to hold up to normal abuse for quite some time now :)
M
Perfect for my PCB RF design. The right-angle SMA jack saves space and performs flawlessly up to 18GHz. Gold-plated brass ensures solid connectivity.
M
Great coaxial connector for GPS modules. The extended PTFE insulation and 50Ω impedance match well with RG316 cables. Easy to solder on board.
W
Exactly as described – OEM quality at half the price of other brands. The 2-hole flange makes panel mounting secure and alignment easy.
A
Good performance, but be careful when tightening the coupling nut. Needs precise torque to avoid damaging the PTFE insulator.
