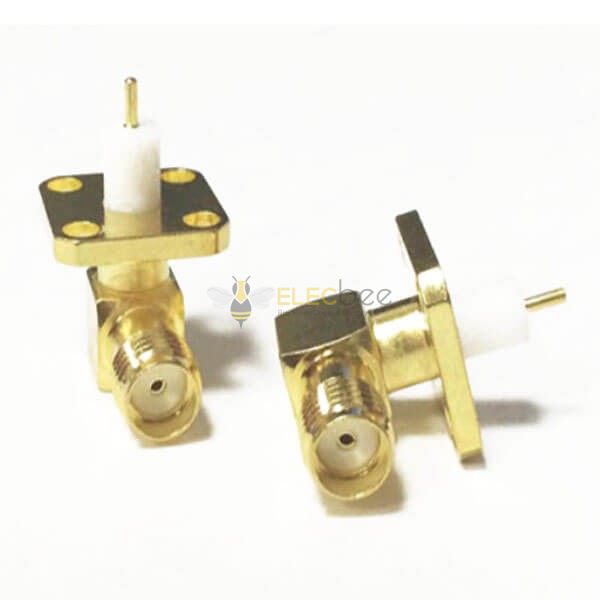

Elecbee RF Coaxial connector Standard SMA Jack Right Angle Solder Type for PCB mount
SKU: EB-007-0260
Favorites
Key Features
SMA Female Jack 50 Ohms RF coaxial connector for DC to 6 GHz signal connections.
Fit and installation Right angle panel mount with 4 hole flange design uses solder termination.
Materials and mating Brass body with gold plated brass contacts and threaded mating for a secure connection.
RF applications SMA panel connector for RF enclosures, instrument interfaces and microwave test systems.
Fit and installation Right angle panel mount with 4 hole flange design uses solder termination.
Materials and mating Brass body with gold plated brass contacts and threaded mating for a secure connection.
RF applications SMA panel connector for RF enclosures, instrument interfaces and microwave test systems.
Show More
In-Stock
Qty.
1
Unit Price
$ 1.80
Ext. Price
$ 1.80
$ 1.80
Specifications
Attribute
Value
Search
Connector Type
Jack
Number of Ports
1
Mounting Type
Panel Mount
Mounting Feature
Four Flange
Termination
Solder
Contact Type
Female Pin
Shell Finish
Gold Plated
Impendance
50 Ohms
Connector Series
SMA
Color
Gold
Fastening Type
Threaded
Orientation
Right Angled
Shell Material
Brass
Contact Material
Brass
Contact Finish
Gold Plated
Frequency Range
DC~6GHz
