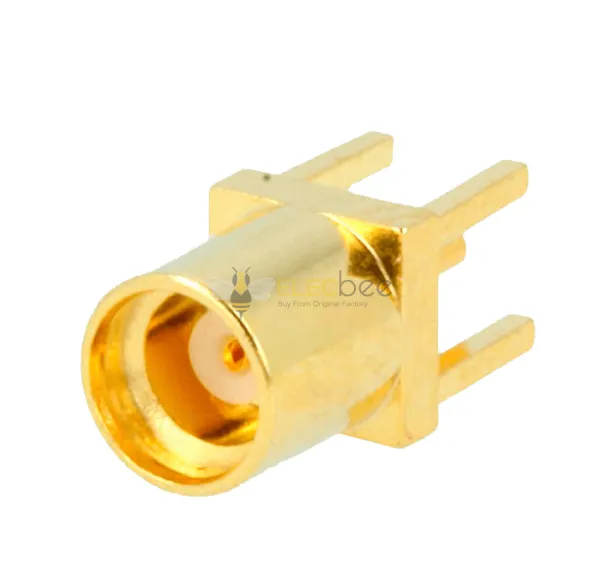

Elecbee PCB Mount MMCX Connector Female Straight Solder Through Hole 50Ω
SKU: EB-211-0171
Favorites
Key Features
Features:
- Pcb Mount, Jack/female, Straight/180°, 50Ω, Through Hole;
- Micro-miniature version of MCX with all features of MCX series conenctor.;
- Snap-on Interface ideal for quick Installation and discount;
- High cost-effective with excellent boardband performance and low reflections.
Applications:
- Consumer Electronic: Smart phones GPS and wireless antennas,
- Aerospace and Defense: GPS
- Technology: Technology Devices
- Telecommunications: GPS tracking, positioning and navigation devices, Wireless Base Station, Wireless-LAN, Wireless antennas
- Data/Communications: Wireless-LAN, Wireless-PAN(bluetooth), Wireless-WAN
- Industrial: Computer connections-LAN/WAN
Show More
Specifications
Attribute
Value
Search
Connector Type
Jack
Number of Ports
1
Mounting Type
Panel Mount
Mounting Feature
Through Hole
Termination
Solder
Contact Type
Female Pin
Shell Finish
Gold Plated
Impendance
50 Ohms
Frequency Max
6 GHz
Connector Series
MMCX
Color
Gold
Fastening Type
Push-on
Orientation
Straight
Shell Material
Copper Alloy
Shopping Guide
Shipping | Delivery Period | Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. Express: 3-7 days. Standard Post: 7-20 days. | |
| Shipping Rates | Shipping rates for your order can be found in the shopping cart. | ||
| Shipping Options | We offer express and standard delivery services. | ||
| Shipping Tracking | We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature. | ||
| Returning/Warranty | Returning | Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping | |
| Warranty | All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects. | ||
| This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation | |||
| Ordering | How to Buy | Elecbee accepts online orders. | |
| Add to cart > Check out > Submit order > Complete payment > Delivery | |||
| Payment | PayPal, Credit Card includes Visa, Master, American Express, Bank transfer. | ||
Recommended For You
Reviews
ELECBEE
All reviews come from verified purchasers
5
60%
4
20%
3
20%
2
0%
1
0%
P****n
Perfect for my compact GPS module build. The straight PCB mount design fits neatly on the board, and the gold-plated contacts ensure solid signal integrity up to 6 GHz.
s****n
Good value MMCX connector. Soldered cleanly through-hole, and the snap-on coupling works smoothly. Just wish the packaging had been a bit more protective.
j****a
Used in a wireless-LAN prototype—impressed by the low VSWR and stable 50Ω impedance. The teflon insulator also handles heat well during reflow.
a****i
Does the job for basic RF connections, but be careful with repeated mating cycles. After 400+ snaps, one unit started showing slight play.
a****a
Exactly as described—micro-miniature size saves space on dense boards. Great for Bluetooth/Wi-Fi applications where space and performance both matter.
