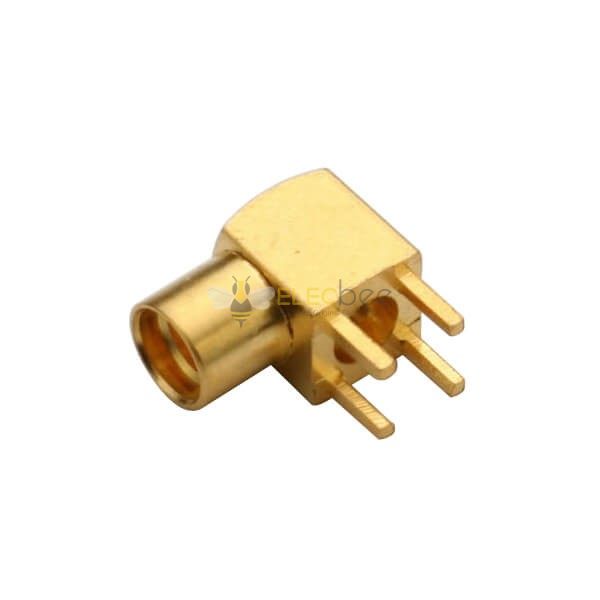

Elecbee MMCX Female Connector Coax Angled Through Hole PCB Mount

SKU: EB-005-0025

Favorites

Key Features

PCB Mount, jack/female, Angled/90°, 50Ω,Through Hole;
Micro-miniature version of MCX with all features of MCX series conenctor.;
Snap-on Interface ideal for quick Installation and discount;
High cost-effective with excellent boardband performance and low reflections.
High Quality with 30 days 100% Money back;
From the OEM Original Factory, same quality with much better price.

Main Application of MMCX Connectors:

Consumer Electronic: Smart phones GPS and wireless antennas,
Aerospace and Defense: GPS
Technology: Technology Devices
Telecommunications: GPS tracking, positioning and navigation devices, Wireless Base Station, Wireless-LAN, Wireless antennas
Data/Communications: Wireless-LAN, Wireless-PAN(bluetooth), Wireless-WAN
Industrial: Computer connections-LAN/WAN

Reviews

ELECBEE

All reviews come from verified purchasers

1 stars

2 stars

3 stars

20%

4 stars

5 stars

60%

R****o

Perfect for my GPS module build. The 90° angled PCB mount saves space, and the gold-plated brass ensures solid connectivity. Works flawlessly up to 6 GHz.

P****h

Good quality MMCX connector. Snap-on interface makes assembly quick, and the through-hole design holds well on the board. Slight learning curve for alignment.

A****e

Exactly as described. The Teflon insulator and 50Ω impedance are critical for my wireless-LAN project, and it delivers stable performance.

Solid connector for the price. Gold plating looks good, but be careful during soldering—Teflon can warp if overheated. Works well once installed.

s****r

Used in a defense comms prototype. Passed vibration testing thanks to MIL-STD compliance. Great value for high-frequency rugged applications.
