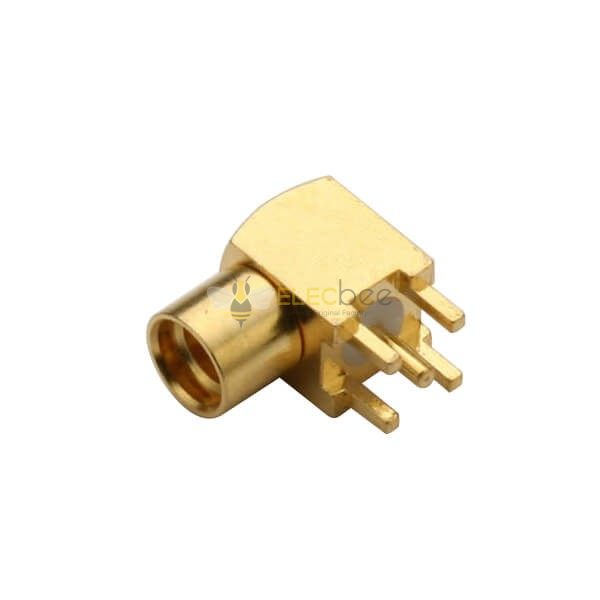

Elecbee MMCX Connector PCB Female Angled Through Hole for Mount

SKU: EB-005-0026

Favorites

Key Features

PCB Mount, jack/female, Angled/90°, 50Ω,Through Hole;
Micro-miniature version of MCX with all features of MCX series conenctor.;
Snap-on Interface ideal for quick Installation and discount;
High cost-effective with excellent boardband performance and low reflections.
High Quality with 30 days 100% Money back;
From the OEM Original Factory, same quality with much better price.

Main Application of MMCXxa0Connectors:

Consumer Electronic:xa0Smart phones GPS and wireless antennas,
Aerospace and Defense:xa0GPS
Technology:xa0Technology Devices
Telecommunications:xa0GPS tracking, positioning and navigation devices, Wireless Base Station, Wireless-LAN, Wireless antennas
Data/Communications:xa0Wireless-LAN, Wireless-PAN(bluetooth), Wireless-WAN
Industrial:xa0Computer connections-LAN/WAN

Reviews

ELECBEE

All reviews come from verified purchasers

1 stars

2 stars

3 stars

20%

4 stars

5 stars

60%

A****e

Perfect for my compact RF design. The 90° angled through-hole mount saves space on the PCB, and the gold-plated brass ensures solid connectivity. Works flawlessly up to 6 GHz.

A****s

Good quality MMCX connector. Snap-on interface makes assembly fast, and the 50Ω impedance matches well with our wireless-LAN modules. Slight learning curve on soldering.

O****d

Exactly as described. Used in a GPS antenna array—consistent performance and great signal integrity. Love the broadband stability and low reflection.

B****n

Solid connectors for the price. Gold finish looks good, but one unit had minor alignment issue during mating. Still functional after rework.

b****a

Great value! High-quality feel with PTFE insulator and durable brass body. The 30-day money-back policy gave me confidence—it was unnecessary, worked first try.
