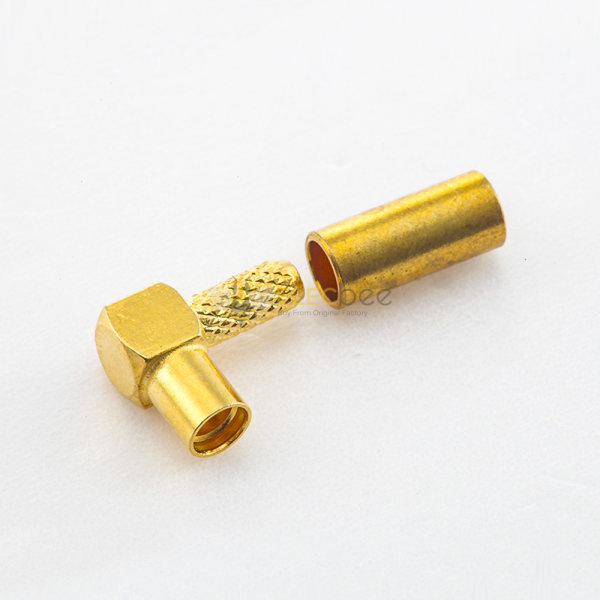

Elecbee MMCX Connector Cable Crimp Type Female Right Angle for RG316/RG174

SKU: EB-211-0172
Favorites
Key Features

Features:

  • Pcb Mount, Jack/female, Straight/180°, 50Ω, Through Hole;
  • Micro-miniature version of MCX with all features of MCX series conenctor.;
  • Snap-on Interface ideal for quick Installation and discount;
  • High cost-effective with excellent boardband performance and low reflections.

Appliance:

  • Consumer Electronic: Smart phones GPS and wireless antennas,
  • Aerospace and Defense: GPS
  • Technology: Technology Devices
  • Telecommunications: GPS tracking, positioning and navigation devices, Wireless Base Station, Wireless-LAN, Wireless antennas
  • Data/Communications: Wireless-LAN, Wireless-PAN(bluetooth), Wireless-WAN
  • Industrial: Computer connections-LAN/WAN
Show More
Attribute
Value
Connector Type
Jack
Number of Ports
1
Mounting Type
Cable Type
Termination
Crimp
Contact Type
Female Pin
Shell Finish
Gold Plated
Impendance
50 Ohms
Frequency Max
6 GHz
Suitable Cable
RG174, 316
Connector Series
MMCX
Color
Gold
Fastening Type
Push-on
Orientation
Right Angled
Shell Material
Copper Alloy
