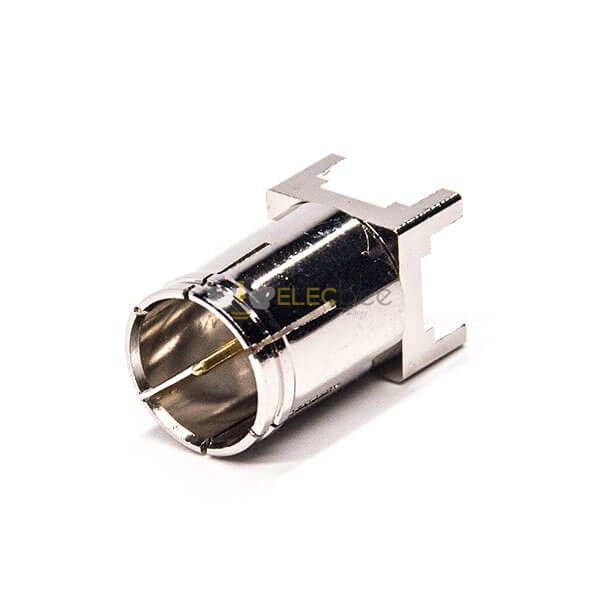

Elecbee F Type Connector PCB Mount Male Straight Through Hole
SKU: EB-003-0088
Favorites
Key Features
Product features:
- F Connector,Jack/female,Straight/180°,Through Hole,PCB Mount;
- Compact Design for less installation space required;
- Easy quick connect and disconnect coupling;
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
Applications:
- Consumer Electronic: Statellite Boxes, set top boxes
- Telecommunications: CATV, CATV Networks.
Show More
Specifications
Attribute
Value
Search
Connector Type
Male
Number of Ports
1
Mounting Type
Panel Mount
Mounting Feature
Through Hole
Contact Type
Male Pin
Shell Finish
Nickel Plated
Impendance
75 Ohms
Frequency Max
3 GHz
Connector Series
F Type
Color
Silver
Fastening Type
Threaded
Orientation
Straight
Shell Material
Brass
Contact Material
Brass
Contact Finish
Gold Plated
