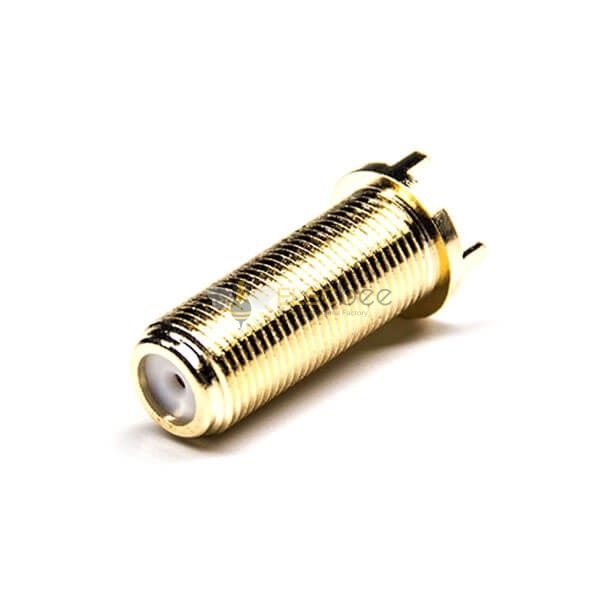

Elecbee F Type Connector Gold Plating Female 180 Degree Through Hole for PCB Mount
SKU: EB-003-0093
Favorites
Key Features
Product features:
- F Type Connector,Jack/female,Straight/180°,Through Hole,PCB Mount,Gold Plating
- Compact Design for less installation space required;
- Easy quick connect and disconnect coupling;
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
Applications:
- Consumer Electronic: Statellite Boxes, set top boxes
- Telecommunications: CATV, CATV Networks.
Show More
Specifications
Attribute
Value
Search
Connector Type
Jack
Number of Ports
1
Mounting Type
Panel Mount
Mounting Feature
Through Hole
Contact Type
Female Pin
Shell Finish
Gold Plated
Impendance
75 Ohms
Frequency Max
3 GHz
Connector Series
F Type
Color
Gold
Fastening Type
Threaded
Orientation
Straight
Shell Material
Brass
Contact Material
Brass
Contact Finish
Gold Plated
