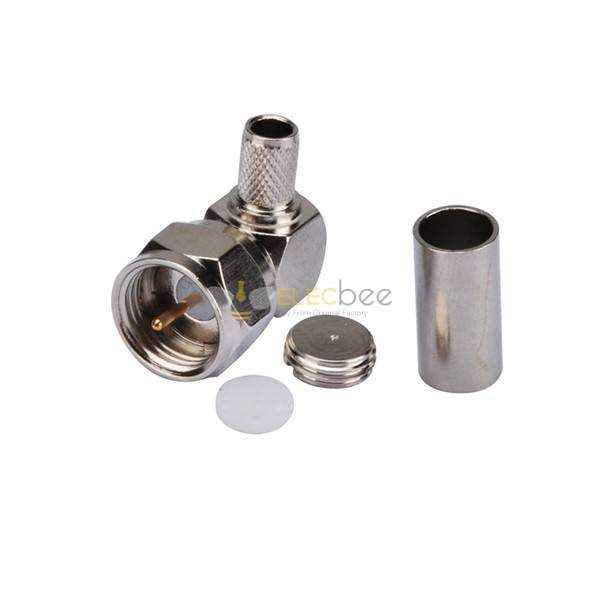

Elecbee F Plug Male Right Angle Crimp RF Coaxial Connector for Cable LMR195/RG58
SKU: EB-003-0148-C
Favorites
Key Features
- Connector, F connector, Male Plug,Right Angle/90°, 75Ω;
- Great security and tamper protection performance with screw on structure;
- Simple structure and component to produce F connectors in very competitive price;
- Less than 30 seconds required for wiring make it really easy to install;
- Can be visually inspect even after connection;
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
Main Application of F Connectors:
- Consumer Electronic: Statellite Boxes, set top boxes
- Telecommunications: CATV, CATV Networks
Show More
Specifications
Attribute
Value
Search
Connector Type
Male
Number of Ports
1
Mounting Type
Cable Type
Contact Type
Male Pin
Shell Finish
Nickel Plated
Impendance
75 Ohms
Frequency Max
3 GHz
Suitable Cable
LMR195, RG58
Connector Series
F Type
Color
Silver
Fastening Type
Threaded
Orientation
Right Angled
Shell Material
Brass
Contact Material
Brass
Contact Finish
Gold Plated
