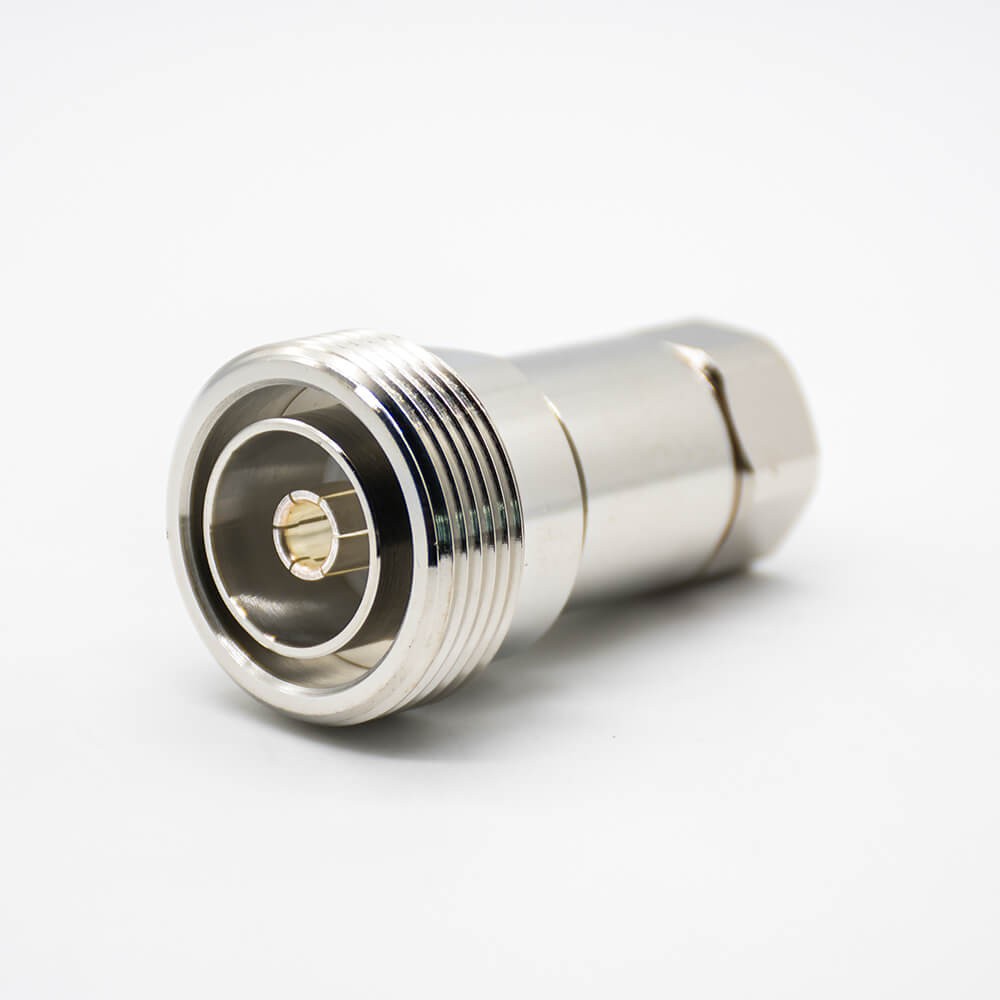

Elecbee DIN Connectors Types 180° DIN7/16 Female Nickel Plating Cable Solder

SKU: EB-012-0030
Favorites

Key Features

  • RF connector,DIN7/16,Female,Straight,Standard,Cable,Solder,Nickel Plating,1/2 cable
  • Designed to minimize signal distortion from inter modulation;
  • Screw on coupling ensure high durability and allow toolless application;
  • Excellent performance up to 5.2GHz frequency.
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.

Main Application of DIN7/16 Connectors:

Consumer Electronic: Statellite Receivers, Statellite Radio
Aerospace and Defense: High-power communication devices
Commercial Vehicle: Bluetooth
Telecommunications: Antenna, Base Station
Industriasl: Antenna Mounts, Machine to Machine Communications


Show More
Attribute
Value
Connector Type
Jack
Number of Ports
1
Mounting Type
Cable Type
Termination
Solder
Contact Type
Female Pin
Shell Finish
Nickel Plated
Impendance
50 Ohms
Frequency Max
6 GHz
Connector Series
DIN 7/16
Color
Silver
Fastening Type
Threaded
Orientation
Straight
Shell Material
Copper Alloy
